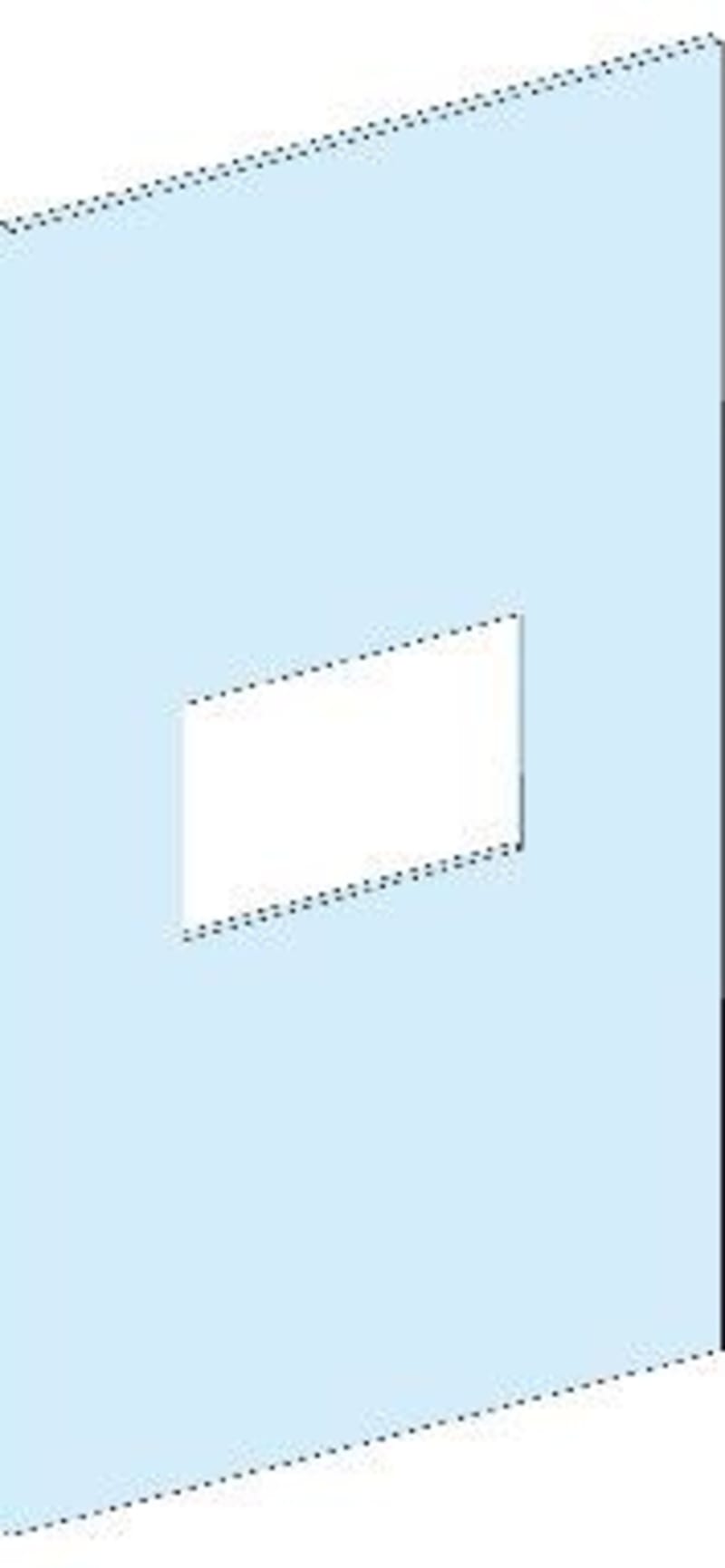

Front Plate for INS630 with Cable Compartment, PrismaSeT G
Part numberLVS03281EAN / GTIN3606481873293HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03281 front plate for INS630 switch-disconnectors with cable compartment, PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03281
- EAN / GTIN
- 3606481873293
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G duct
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS320...400 - control: direct front rotary handle - vertical installation; ComPact: fixed INS500...630 - control: direct front rotary handle - vertical installation; ComPact: fixed INV320...400 - control: direct front rotary handle - vertical installation; ComPact: fixed INV500...630 - control: direct front rotary handle - vertical installation
- Poles description
- 1 x 3P: mounting plate support: INS320...400 vertical installation; 1 x 4P: mounting plate support: INS320...400 vertical installation; 1 x 3P: mounting plate support: INS500...630 vertical installation; 1 x 4P: mounting plate support: INS500...630 vertical installation; 1 x 3P: mounting plate support: INV320...400 vertical installation; 1 x 4P: mounting plate support: INV320...400 vertical installation; 1 x 3P: mounting plate support: INV500...630 vertical installation; 1 x 4P: mounting plate support: INV500...630 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 10
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 500 mm
- Product weight
- 0.96 kg
- Quantity per set
- Set of 1
- functional unit
- 300 mm PrismaSeT G floor-standing duct ComPact INS320...400 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 10; 300 mm PrismaSeT G wall-mounted duct ComPact INS320...400 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 10; 300 mm PrismaSeT G floor-standing duct ComPact INS320...400 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 10; 300 mm PrismaSeT G wall-mounted duct ComPact INS320...400 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 10; 300 mm PrismaSeT G floor-standing duct ComPact INS500...630 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 12; 300 mm PrismaSeT G wall-mounted duct ComPact INS500...630 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 12; 300 mm PrismaSeT G floor-standing duct ComPact INS500...630 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 12; 300 mm PrismaSeT G wall-mounted duct ComPact INS500...630 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 12; 300 mm PrismaSeT G floor-standing duct ComPact INV320...400 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 10; 300 mm PrismaSeT G wall-mounted duct ComPact INV320...400 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 10; 300 mm PrismaSeT G floor-standing duct ComPact INV320...400 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 10; 300 mm PrismaSeT G wall-mounted duct ComPact INV320...400 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 10; 300 mm PrismaSeT G floor-standing duct ComPact INV500...630 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 12; 300 mm PrismaSeT G wall-mounted duct ComPact INV500...630 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 12; 300 mm PrismaSeT G floor-standing duct ComPact INV500...630 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 12; 300 mm PrismaSeT G wall-mounted duct ComPact INV500...630 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 12
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 26.500 cm
- Package 1 Length
- 51.500 cm
- Package 1 Weight
- 985.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 10
- Package 2 Height
- 17.000 cm
- Package 2 Width
- 27.500 cm
- Package 2 Length
- 52.500 cm
- Package 2 Weight
- 10.120 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 90
- Package 3 Height
- 41.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 102.650 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 300 mm
- Number of height units
- 10
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481873293
- SAP 1200546643
- Code 82880303
