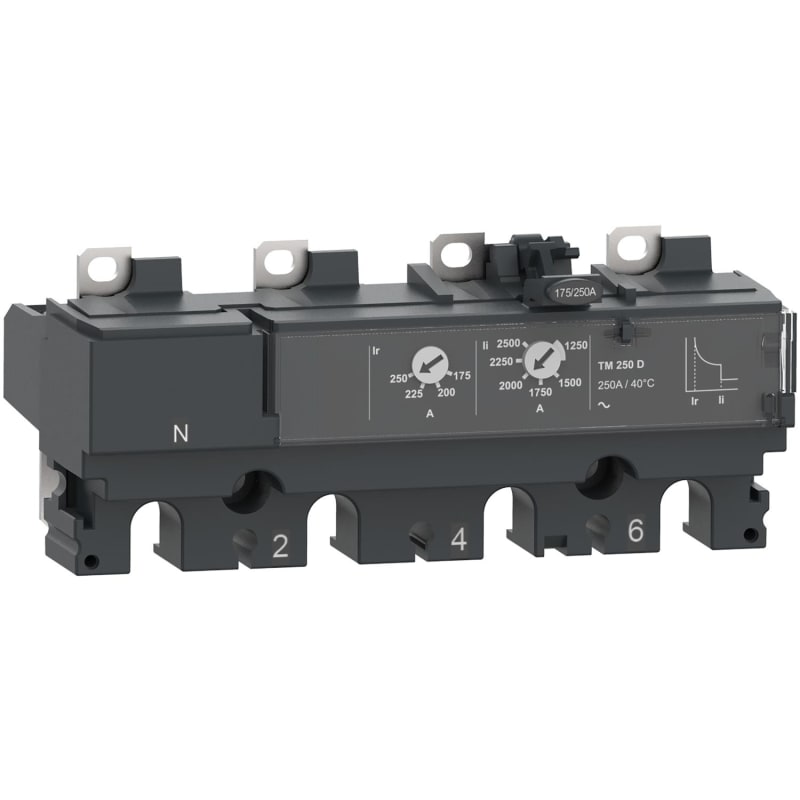

Schneider Electric Trip unit TM125D, ComPacT NSX160/250, 4 poles 4D (neutral fully protected), thermal magnetic protections, 125A rating C164TM125

Schneider Electric C164TM125 Thermomagnetic protection for NSX ComPacT NSX-TM125D 4P4T 125A.

Manufacturer part number (MPN)

C164TM125

EAN / GTIN

3606482000254

Sales unit

pcs

Package quantity

23 pcs

Trip unit

TM125D

Range

ComPacT

Range of product

ComPacT NSX100...250

Product or component type

Trip unit

Trip unit name

TM-D

Trip unit technology

Thermal-magnetic

Range compatibility

ComPacT NSX160; ComPacT NSX250

Device application

Distribution

Poles description

4P

Protected poles description

4D

Neutral position

Left

Trip unit protection functions

LI

Protection type

L : for overload protection (thermal); I : for short-circuit protection (magnetic)

Trip unit rating

125 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable

[Ir] long-time protection pick-up adjustment range

0.7...1 x In

Long-time protection delay adjustment type tr

Fixed

[tr] long-time protection delay adjustment range

120…400 s at 1.5 x In; 15 s at 6 x Ir

Neutral protection settings

1 x Ir (4D)

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

1250 A

Earth-leakage protection

Without

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

23

Warranty (in months)

18

Width

139.7 mm

Height

60.6 mm

Depth

88.2 mm

Rated permanent current Iu

125 A

Number of poles

4

Short-circuit release function

Undelayed

External power supply required

No

Voltage type (operating voltage)

AC

With ground fault protection function

No

Rated switch current

125 A

End value adjustment range undelayed short-circuit release

1250 A

Type of motor protection

Thermal/magnetic release

Voltage type for actuating

AC

Country of origin

Poland

HS Code

8536.30
