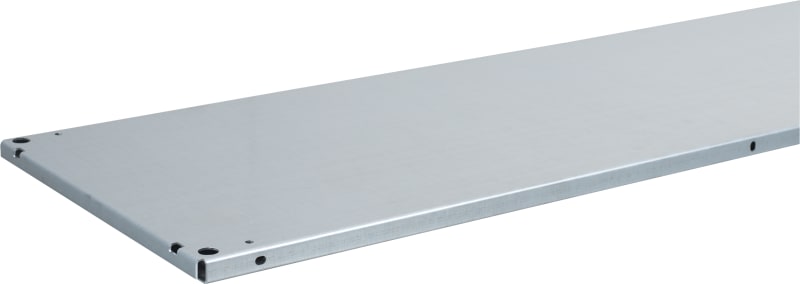

Mounting Plate 20X10
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMP2010 Mounting plate 20X10.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMP2010
- EAN / GTIN
- 3606485126913
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 2000 mm W: 1000 mm
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 1 mounting plate; 2 sliding shoes
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing brackets
- Maximum load
- 300 kg/m²
- Permanent permissible load
- 500 kg intermediate position; 600 kg back of the enclosure
- Height
- Fixing centers: 1850 mm; Nominal: 2000 mm; Real: 1897 mm
- Width
- Fixing centers: 850 mm; Nominal: 1000 mm; Real: 896 mm
- Depth
- 27 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 91.000 cm
- Package 1 Length
- 192.000 cm
- Package 1 Weight
- 39.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 20
- Package 2 Height
- 76.000 cm
- Package 2 Width
- 200.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 815.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485126913
- SAP 1000089216
- Code 8913898
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 24/30 VDC LV432643
Schneider Electric

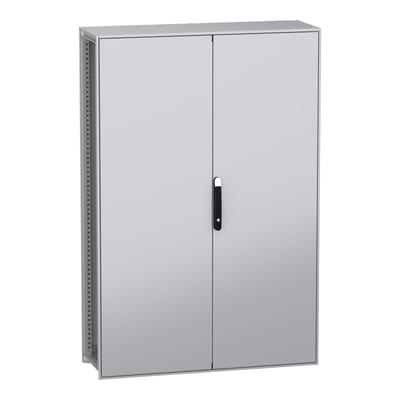

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X1200X400MM, 2 doors, IP55 NSYSFN1812402D
Schneider Electric

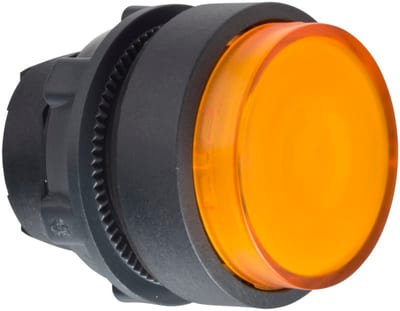

Illuminated push-button head, raised, yellow LED
ZB5AW153
Schneider Electric

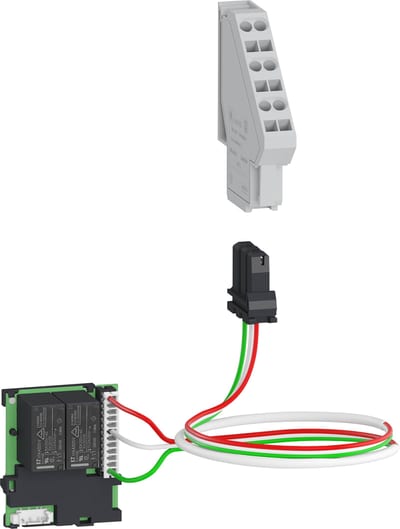

Just. Tidsf. MNR 380/480VAC/DC
LV833683SP
Schneider Electric

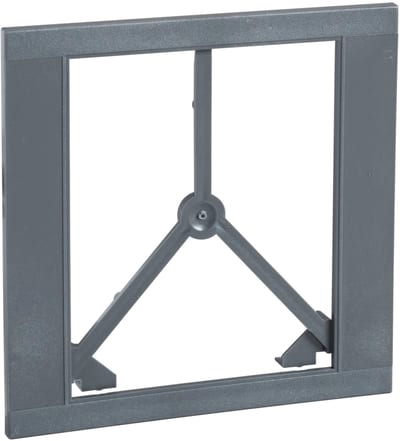

Schneider Electric LV429525 — Escutcheon for all control types, fixed NSX100/160/250, IP30
Schneider Electric

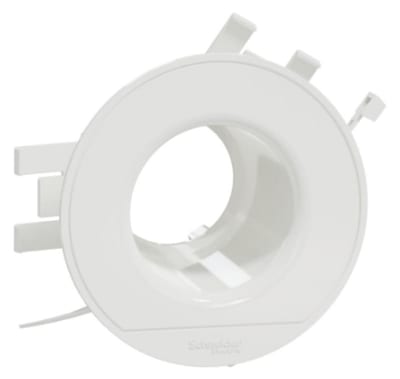

Ceiling feedthrough rod
INS45010
Schneider Electric

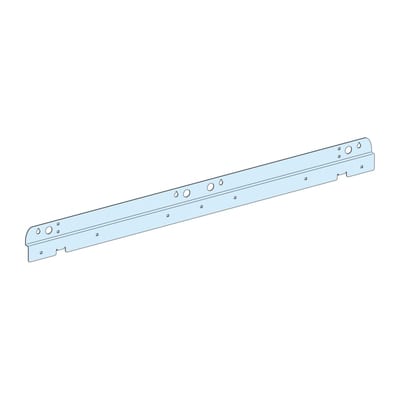

Lifting bar-2 PCS-B600+B300-IP30-PRISMASETG
LVS08812
Schneider Electric

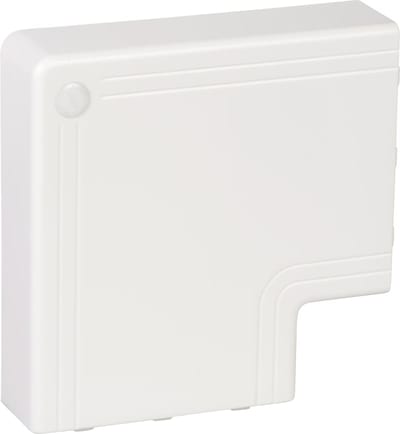

L-Piece Tir+ LS80/60 White
