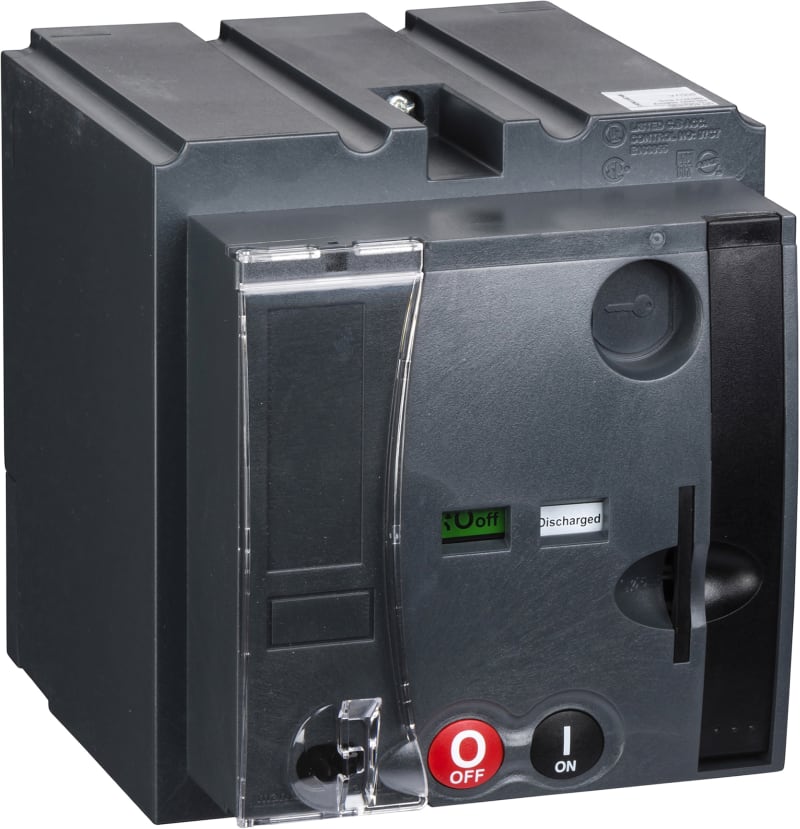

Schneider Electric standard motor mechanism module MT400/630, ComPact NSX400/630, 24/30 VDC LV432643

Schneider Electric LV432643 Motor mechanism 24-30VDC NSX400/630.

Manufacturer part number (MPN)

LV432643

EAN / GTIN

3606480020193

Sales unit

pcs

Package quantity

6 pcs

Device short name

MT400/630

Product or component type

Motor mechanism

Device application

Automatic spring charging

Range compatibility

ComPacT NSX400; ComPacT NSX630; ComPacT NSX400 DC; ComPacT NSX630 DC

Control type

Standard

[Uc] control circuit voltage

24...30 V DC

circuit breaker mounting mode

Fixed

circuit breaker frame rated current

400 A; 630 A

Control signal type

Impulse; Maintained

circuit breaker response time

< 700 ms open; < 80 ms closed

Maximum operating frequency

4 per minute

Maximum power consumption in W

500 W - closing; 500 W - opening

Locking options description

Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

17.000 cm

Package 1 Width

17.000 cm

Package 1 Length

19.500 cm

Package 1 Weight

3.093 kg

Unit Type of Package 2

S04

Number of Units in Package 2

6

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

19.259 kg

Country of origin

IT

Warranty (in months)

18

Rated control supply voltage DC

24–30 V

Type of switch drive

Motor drive

Voltage type for actuating

DC

HS Code

8501.20

• EAN 3606480020193
• SAP 1000092800
• Code 8585666
