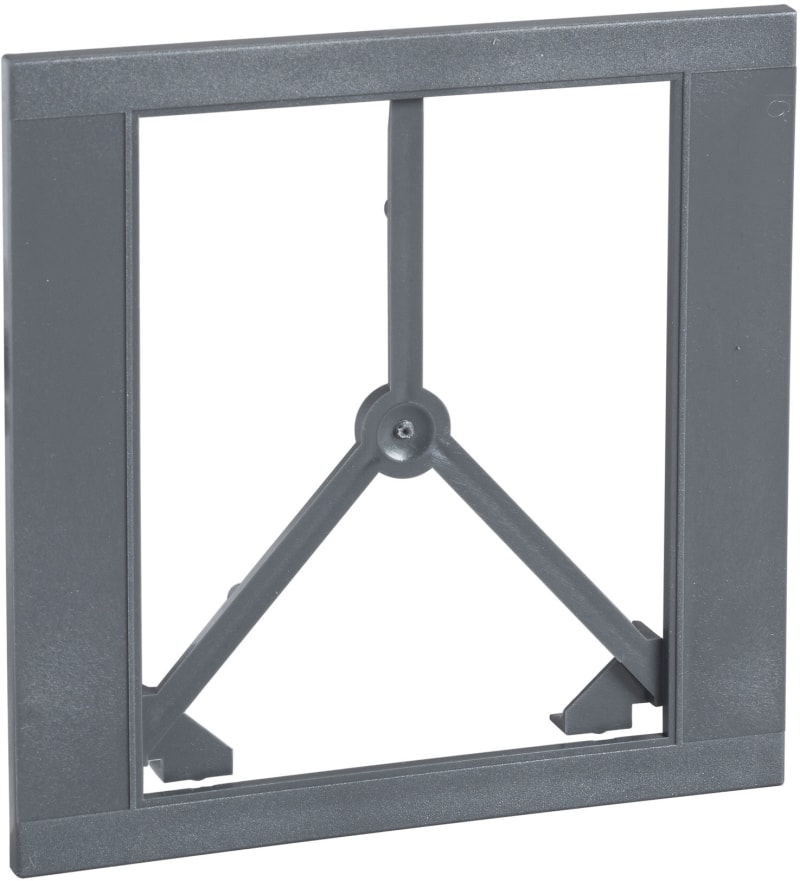

Schneider Electric LV429525 — Escutcheon for all control types, fixed NSX100/160/250, IP30

Schneider Electric LV429525 is a front-panel escutcheon (door frame) for all control types on fixed ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250) moulded-case circuit breakers. It mounts on the switchboard door around the operating face to finish the cut-out and provide IP30 degree of protection at the front face. Conforms to IEC 60947-2 as a circuit-breaker accessory. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

front-panel escutcheon (door frame) for all control types

Compatible devices

ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250) (fixed mounting)

Degree of protection

IP30

Function

mounts on the switchboard door around the device operating face; raises the front-face degree of protection and provides a finished cut-out

Standard

IEC 60947-2 (circuit-breaker accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV429525

EAN / GTIN

3606480021176

HS code

8538.90

Product or component type

Escutcheon

Accessory / separate part category

Insulation accessory

Range compatibility

ComPact ComPact NSX100; ComPact ComPact NSX160; ComPact ComPact NSX250; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; ComPact Compact NSX250 DC

Control type

Rotary handle; Toggle; Motor mechanism

mounting mode

Fixed

IP degree of protection

IP30 conforming to IEC 60529

Country of origin

FR

Warranty (in months)

18

Standard

IEC 60947-2

HS Code

8538.90

• EAN 3606480021176
• SAP 1000092353
• Code 8930350
