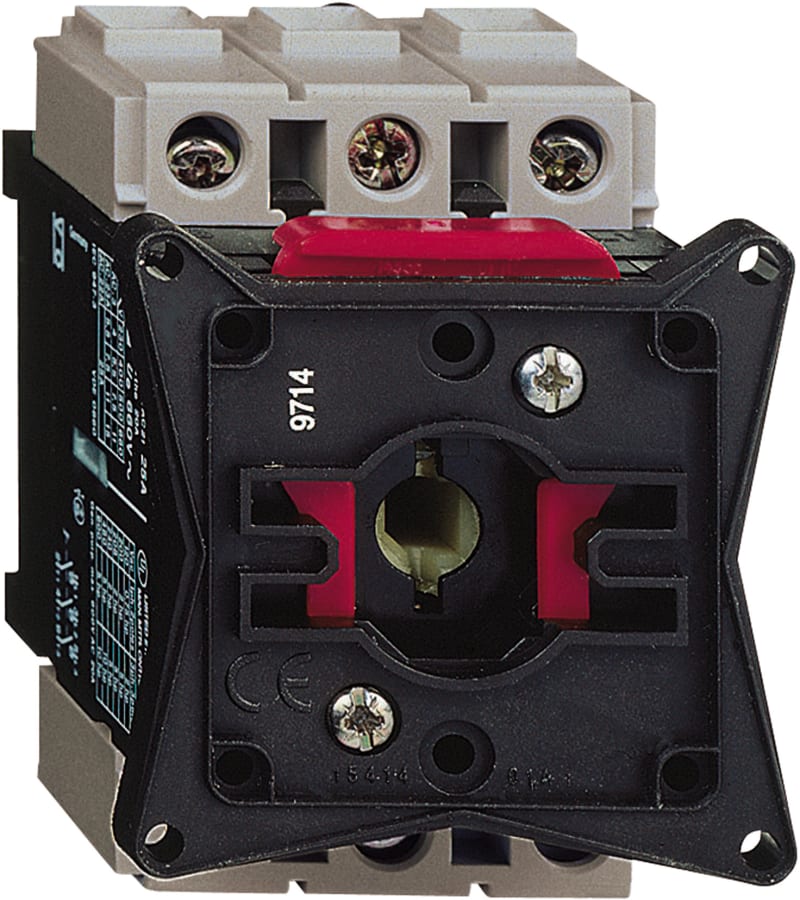

Switch Block 12A (V02)

Schneider Electric V02 Bryterblokk 3P 12A Without Grip.

Manufacturer part number (MPN)

V02

EAN / GTIN

3389110448849

Sales unit

pcs

Package quantity

24 pcs

Range

TeSys

Product Name

TeSys VARIO

Device Short Name

V

Product Type

Switch body

Mounting Support

Plate; Symmetrical rail

Performance Level

High performance

Number of Poles

3P

Contact Type and Composition

3 NO

Network type

AC; DC

Network frequency

50/60 Hz

[Ue] IEC Rated Operational Voltage

690 V AC 50/60 Hz

IEC Rated Operational Power in W

3 kW at 400...415 V (AC-3); 4 kW at 500 V (AC-3); 1.5 kW at 230...240 V (AC-3); 5.5 kW at 500 V (AC-23A); 5.5 kW at 690 V (AC-3); 7.5 kW at 690 V (AC-23A); 3 kW at 230...240 V (AC-23A); 4 kW at 400...415 V (AC-23A)

[Ie] Rated Operational Current

8.1 A AC-23 Ue: 400 V

[Ith] Conventional Free Air Thermal Current

12 A

[Ithe] Conventional Enclosed Thermal Current

10 A

Making capacity ( I Rms)

120 A at 400 V AC-21A; 120 A at 400 V AC-22A; 120 A at 400 V AC-23A

Breaking Capacity

120 A at 400 V (AC-21A); 120 A at 400 V (AC-22A); 120 A at 400 V (AC-23A)

Rated Conditional Short Circuit Current

10 kA at 400 V - associated fuse 12 A aM; 10 kA at 400 V - associated fuse 12 A gG

[Icm] Rated Short Circuit Making Capacity

1 kA at 400 V at Ipeak

Intermittent duty class

30

Suitability for isolation

Yes

[Uimp] rated impulse withstand voltage

8 kV

[Icw] rated short-time withstand Rms current

300 A at 400 V duration: 1 s

Mechanical Durability

100000 cycles

Electrical Durability

100000 cycles AC-21; 30000 cycles DC-1; 30000 cycles DC-2; 30000 cycles DC-3; 30000 cycles DC-4; 30000 cycles DC-5

IEC Terminal Connection

Power circuit: screw clamp terminals10 mm² - solid; Power circuit: screw clamp terminals6 mm² - flexible - with cable end

Tightening Torque

Power circuit: 2.1 N.m - on screw clamp terminals

Height

74 mm

Width

55 mm

Depth

60 mm

Product Weight

0.2 kg

Standards

IEC 60947-3

Product Certifications

UL; CSA; GL; UKCA; CCC

Degree of Protection

IP20 conforming to IEC 60529

Protective Treatment

TC

Mechanical Robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient Air Temperature for Operation

-20…50 °C

Fire Resistance

960 °C conforming to IEC 60695-2-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.000 cm

Package 1 Width

8.400 cm

Package 1 Length

7.800 cm

Package 1 Weight

175.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

24

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.682 kg

Unit Type of Package 3

P06

Number of Units in Package 3

192

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

47.036 kg

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50
