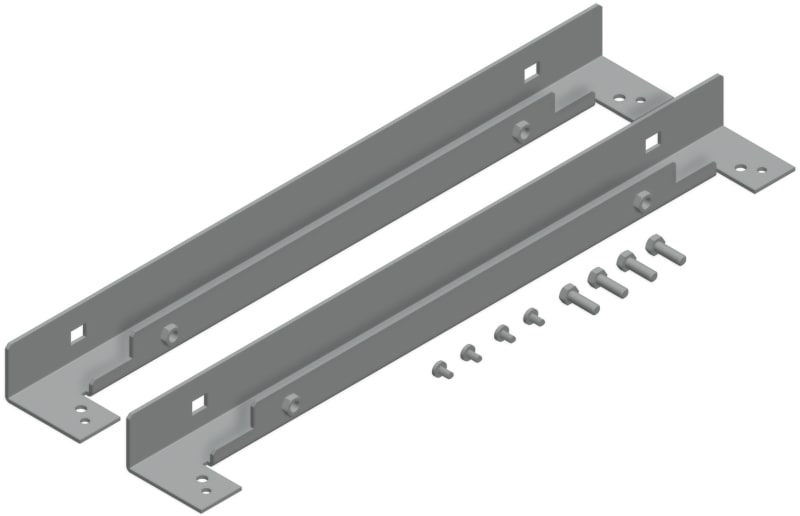

Schneider Electric PanelSeT SF Side-Entry Mounting Rails, W1200, Pair

Schneider Electric NSYSMPSE12 set of two zinc-coated steel mounting rails for the bottom of PanelSeT SF enclosures with 1200 mm build width, adjustable in depth every 25 mm. 48 mm high x 74 mm deep cross section, supplied with fixing elements, packed 12 per outer. Country of origin Spain, 18-month warranty.

Manufacturer part number (MPN)

NSYSMPSE12

EAN / GTIN

3606485132204

Sales unit

pcs

Package quantity

12 pcs

category

Mounting accessory

Product or component type

Rail

Range compatibility

PanelSeT SF SF

Application

Multi-purpose

Nominal dimensions of the housing

-

Mounting location

Bottom of enclosure, in width

Product destination

Mounting plates in coupled enclosures

Device composition

2 rail; fixing elements

Quantity per set

Set of 1

Material

Steel

Surface finish

Zinc coated

Fixing mode

By fixing element

Adjustment

Adjustable in depth every 25 mm

Width

Nominal: 1200 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

0.600 cm

Package 1 Width

0.810 cm

Package 1 Length

0.123 cm

Package 1 Weight

6.412 g

Country of origin

ES

Warranty (in months)

18

Model

Mounting rail

Suitable for enclosure building width

1200 mm

Height

48 mm

Depth

74 mm

HS Code

7326.90

• EAN 3606485132204
• SAP 1000317632
• Code 81015325
