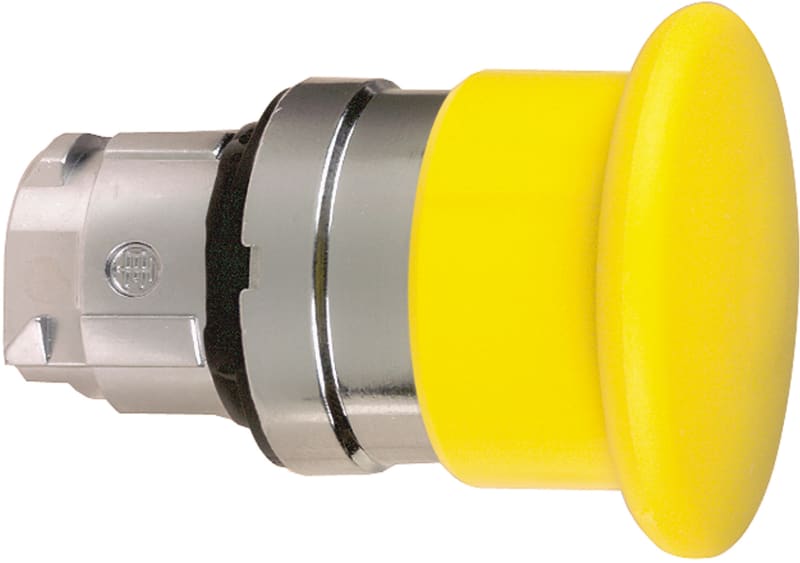

SOPP Push-Button Head Yellow Ø40mm

Schneider Electric ZB4BC5 Mushroom Push-Button Head Yellow Ø40mm.

Manufacturer part number (MPN)

ZB4BC5

EAN / GTIN

3389110888461

Sales unit

pcs

Package quantity

42 pcs

Diameter

40 mm

Range of product

Harmony XB4

Product or component type

Head for non-illuminated push-button

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Yellow mushroom Ø 40 mm, unmarked

Cap/operator or lens colour

Yellow

CAD overall width

40 mm

CAD overall height

40 mm

CAD overall depth

52 mm

Mechanical durability

5000000 cycles

Electrical composition code

C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

UL 508; EN/IEC 60947-5-5; CSA C22.2 No 14; EN/IEC 60947-5-4; EN/IEC 60947-5-1; EN/IEC 60947-1; JIS C8201-5-1; JIS C8201-1

Product certifications

BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

42

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Yellow

Suitable for lighting

No

Unlocking method

None

Spring-return

Yes

Diameter cap

40 mm

Suitable for emergency stop

No

Type of button

High

Colour front ring

Chrome

With lighting

No

Degree of protection (IP)

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90
