RES.Plug C20-340V for Q.PRD20

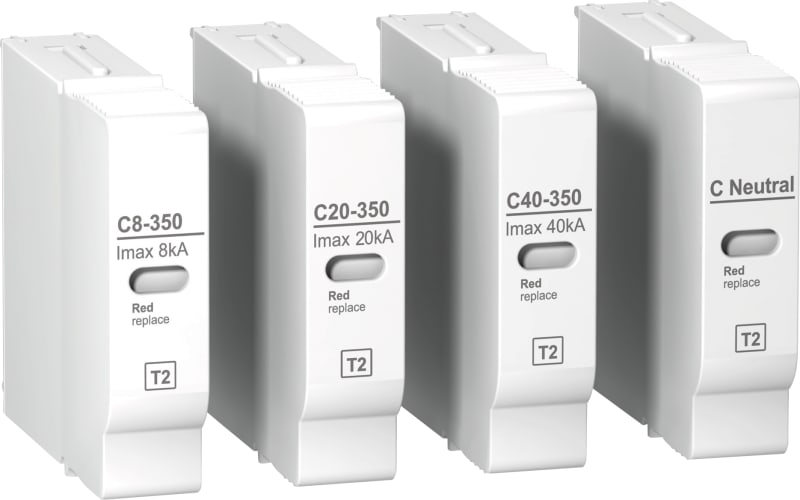

Schneider Electric A9L16311 Spare Plug C20-340V for Q.PRD20.

Manufacturer part number (MPN)

A9L16311

EAN / GTIN

3606480387142

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Product or component type

Cartridge

Device short name

C20-350

Range compatibility

Acti9 iQuick PRD20r

Surge arrester type

Electrical distribution network

Standards

IEC 61643-1; EN 61643-11

Product certifications

KEMA-KEUR; NF

Surge arrester class type

Type 2

Surge arrester technology

MOV

Product destination

Surge protection device iQuick PRD20r 1P + N; Surge protection device iQuick PRD20r 3P; Surge protection device iQuick PRD20r 3P + N

Earthing system

TT; TN

[Ue] rated operational voltage

230 V AC 50 Hz

Nominal discharge current

5 kA

Maximum discharge current

20 kA

[Uc] maximum continuous operating voltage

350 V

Maximum [Up] voltage protection level

1.2 kV type 2

Local signalling

Flag (white/red)

mounting mode

Plug-in

Mounting support

Into SPD module

9 mm pitches

1.3

Height

50 mm

Width

12 mm

Depth

57 mm

Colour

White (RAL 9003)

Material

PBT (polybutylene terephthalate)

Response time

< 25 ns

IP degree of protection

IP20 front face:

Relative humidity

5…95 %

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

6.700 cm

Package 1 Length

9.500 cm

Package 1 Weight

60.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

12

Package 2 Height

8.500 cm

Package 2 Width

11.000 cm

Package 2 Length

26.500 cm

Package 2 Weight

804.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

108

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

7.949 kg

Country of origin

HU

Warranty (in months)

18

System configuration

TN

System configuration DC

No

System configuration IT

No

System configuration TN

Yes

System configuration TN-C

No

System configuration TT

Yes

System configuration other

No

Nominal discharge surge current (8/20)

15 kA

Max. discharge surge current (8/20)

20 kA

Short-circuit-proof

No

Nominal voltage AC

230 V

Max. continuous voltage AC

350 V

Voltage protection level

1.2 kV

Voltage protection level L-N

1.2 kV

Voltage protection level N-PE

1.2 kV

Integrated short-circuit protection

No

Integrated backup fuse

No

Leakage-current free

No

Mounting method

On basic element

With remote signalling contact

No

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

HS Code

8536.30

• EAN 3606480387142
• SAP 1000343654
• Code 81006240
