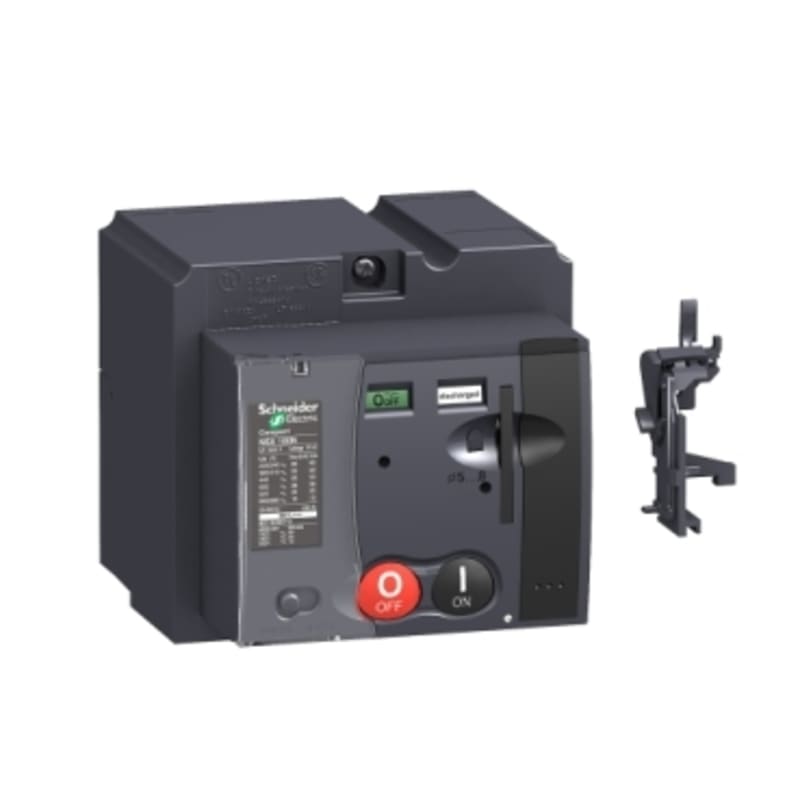

Schneider Electric standard motor mechanism module MT250, ComPact NSX250, 380/415 VAC 50/60 Hz, 440/480 VAC 60 Hz LV431542

Schneider Electric LV431542 Motor mechanism 380-415VAC for NSX250.

Manufacturer part number (MPN)

LV431542

EAN / GTIN

3606480020094

Sales unit

pcs

Package quantity

15 pcs

Voltage

380-415 V AC

Device short name

MT250

Product or component type

Motor mechanism

Device application

Automatic spring charging

Range compatibility

ComPacT NSX250; ComPacT NSX250 DC

Control type

Standard

[Uc] control circuit voltage

380...415 V AC 50/60 Hz; 440...480 V AC 60 Hz

circuit breaker mounting mode

Fixed

circuit breaker frame rated current

250 A

Control signal type

Maintained; Impulse

circuit breaker response time

< 700 ms open; < 80 ms closed

Maximum operating frequency

4 per minute

Maximum power consumption in VA

500 VA closing; 500 VA opening

Provided equipment

SDE adaptor

Locking options description

1 to 3 padlocks Ø 5 to Ø 8; Padlocking in OFF position

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

IT

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

380–415 V

Rated control supply voltage AC 60 Hz

380–480 V

Type of switch drive

Motor drive

Voltage type for actuating

AC

HS Code

8501.20

• EAN 3606480020094
• SAP 1000092618
• Code 8907368
