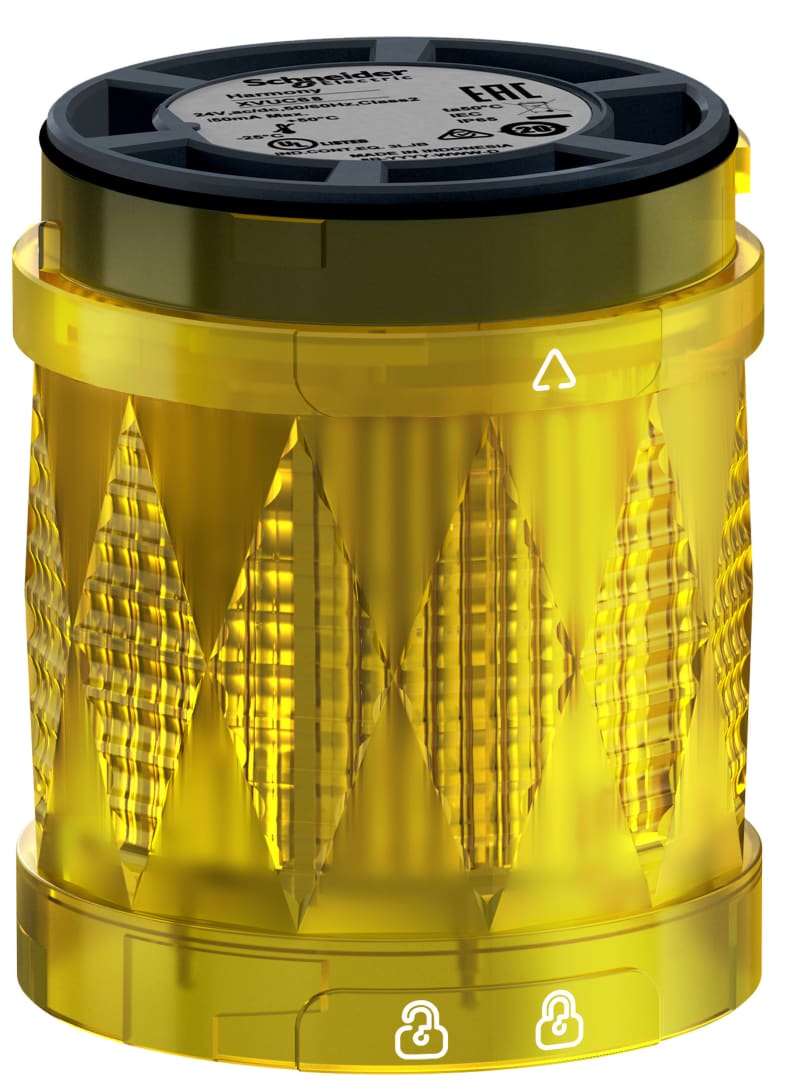

HIGH Intensity Flashing LED Yellow

Schneider Electric XVUC68 Ø60 mm LED light unit for XVU lyskolonne in yellow colour with heavy-duty flash.

Manufacturer part number (MPN)

XVUC68

EAN / GTIN

3606480887116

Sales unit

pcs

Package quantity

24 pcs

Range of product

Harmony XVU

Product or component type

Modular tower light

Beacon or indicator bank unit type

LED unit

Mounting diameter

60 mm

Component name

XVU

Light source

LED, yellow

Device application

Automotive; Packaging machine; Machine tools

Signalling type

High flashing

Assembly style

Customer assembly, up to 3 units

Material

PC (polycarbonate) V-2 conforming to UL 94

[Us] rated supply voltage

24 V AC/DC

Maximum power dissipation in W

2.8 W

Current consumption

<= 150 mA

Length

60 mm

Product weight

0.085 kg

Product certifications

UL; CSA; CE; EAC; RCM; CCC

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP65

Ambient air temperature for operation

-25…50 °C

Vibration resistance

2 gn

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.2 cm

Package 1 Width

9.2 cm

Package 1 Length

13.3 cm

Package 1 Weight

163.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

24

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

4.759 kg

Unit Type of Package 3

P06

Number of Units in Package 3

192

Package 3 Height

75 cm

Package 3 Width

40 cm

Package 3 Length

80 cm

Package 3 Weight

31.296 kg

Country of origin

ID

Warranty (in months)

18

Colour

Yellow

Outer diameter

60 mm

Function

Continuous-/flashing light

Voltage type

AC/DC

Lamp type

LED

Degree of protection (IP)

IP65

Operating voltage AC 50 Hz

24 V

Operating voltage AC 60 Hz

24 V

Operating voltage DC

24 V

HS Code

8531.80

• EAN 3606480887116
• SAP 1200271347
• Code 82234216
