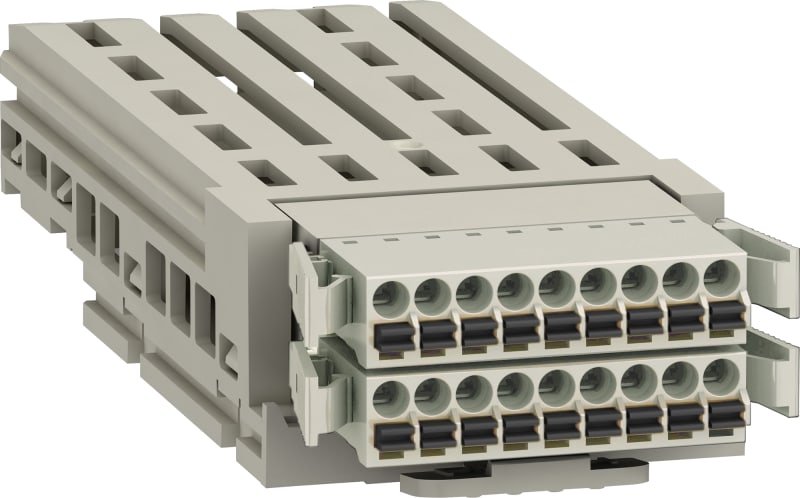

Schneider Electric extended I/O module - discrete 6I/2O - analog 2I VW3A3203

Schneider Electric VW3A3203 Ekspansjonsmodul - In/O, Digital 6I/2O + Analog 2I.

Manufacturer part number (MPN)

VW3A3203

EAN / GTIN

3606480702525

Sales unit

pcs

Package quantity

16 pcs

Product or component type

Additional I/O module

Range compatibility

Altivar Process ATV600; Altivar Machine ATV340; Altivar Process ATV900; Easy Altivar 610

Input/output type

2 analog input configurable voltage, current or probe; 6 discrete input; 2 discrete output

Analogue input number

2

Analogue input type

AI4, AI5 configurable current: 0...20 mA/4...20 mA, sampling time: 0…1 ms, resolution: 14 bits; AI4, AI5 configurable voltage: - 10...10 V DC, 24 V max, impedance: 20 kOhm, sampling time: 0…1 ms, resolution: 14 bits; AI4, AI5 configurable PTC, Pt 100, Pt 1000, sampling time: 0…1 ms, resolution: 14 bits

Discrete output number

2

Discrete output type

(DQ11, DQ12) assignable logic, sampling time: 1 ms

Discrete output logic

(DQ11, DQ12) negative; (DQ11, DQ12) positive

Discrete input number

6

Discrete input type

(DI11...DI16) programmable, impedance: 250 Ohm, sampling time: 1 ms

Discrete input logic

Negative (DI11...DI16); Positive (DI11...DI16)

Discrete input current

2.5 mA

Discrete output voltage

24 V DC (voltage limits: <= 30 V) assignable logic

Maximum output current

100 mA, assignable logic

Discrete input voltage

24 V DC (voltage limits: <= 30 V) for programmable

Electrical connection

Removable spring terminal block, 1.5 mm² / 16 AWG

Protection type

Reverse polarity protection: digital input; Short-circuit protection: output

Product weight

0.5 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.500 cm

Package 1 Width

13.000 cm

Package 1 Length

19.000 cm

Package 1 Weight

161.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.272 kg

Country of origin

ID

Warranty (in months)

18

Accessory

Yes

Spare part

No

HS Code

8504.40

• EAN 3606480702525
• SAP 1000659392
• Code 8486188
