WALL-Mount Cabinet WITH WINDOW. 4X6X2,5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D4625T Wall-mount cabinet With Window. 4X6X2,5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D4625T
- EAN / GTIN
- 3606480159497
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 400 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 250 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL; GL; BV; cUL; DNV
- Product weight
- 11.82 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 29.500 cm
- Package 1 Width
- 41.500 cm
- Package 1 Length
- 61.500 cm
- Package 1 Weight
- 11.656 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 27
- Package 2 Height
- 200.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 328.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 400 mm
- Depth
- 250 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159497
- SAP 1000089598
- Code 8839895
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 3P, 25A, A-SI type, instantaneous, 300MA, 400VAC A9Y85325
Schneider Electric
Schneider Electric bag of screws, ComPact NSX100/160/250, EasyPact CVS CVS100/160/250 LV429312
Schneider Electric
Schneider Electric PC box IP66 IK08 RAL7035 INT.H105W65D55 EXT.H116W74D62 opaque PC cover H10 NSYTBP1176
Schneider Electric
Schneider Electric Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger turn to release, 1 NO+1 NC, push in XB5AS84455
Schneider Electric
S3D Cabinet 1200X600X400 M/1 DOOR
NSYS3D12640
Schneider Electric
Zelio Logic 4I/2O 12VDC
SR3XT61JD
Schneider Electric

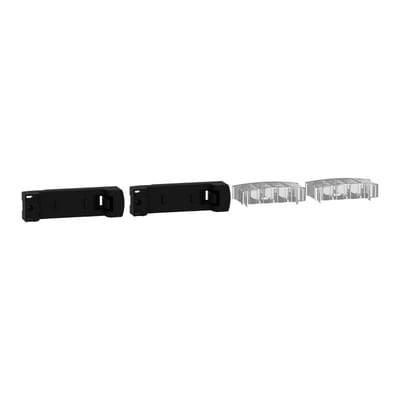

Accessories Linergy BW PrismaSeT (LVS01210)
Schneider Electric

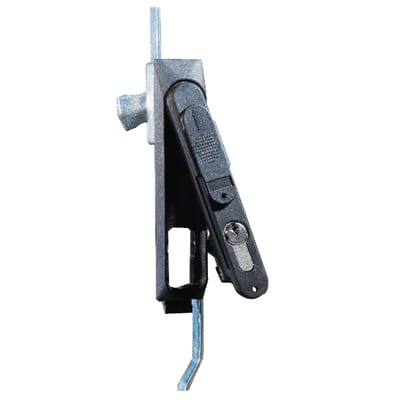

Schneider Electric Transformation of the std lock to a retractable 3 pt lock with db bar 5mm insert NSYTEDB5ML
