S3D Cabinet 1200X600X400 M/1 DOOR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D12640 S3D CABINET 1200X600X400 M/1 DOOR.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D12640
- EAN / GTIN
- 3606480159916
- Sales unit
- pcs
- Dimensions
- 1200×600×400
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1200 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 400 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- cUL; DNV; BV; UL; GL
- Product weight
- 39 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 45.500 cm
- Package 1 Width
- 61.500 cm
- Package 1 Length
- 123.500 cm
- Package 1 Weight
- 39.600 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 6
- Package 2 Height
- 200.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 123.500 cm
- Package 2 Weight
- 253.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 1200 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159916
- SAP 1000317853
- Code 8823565
Product Documentation
More from Schneider Electric
Schneider Electric
Zelio Logic 4I/2O 12VDC
SR3XT61JD
Schneider Electric
Accessories Linergy BW PrismaSeT (LVS01210)
Schneider Electric
Schneider Electric Transformation of the std lock to a retractable 3 pt lock with db bar 5mm insert NSYTEDB5ML
Schneider Electric

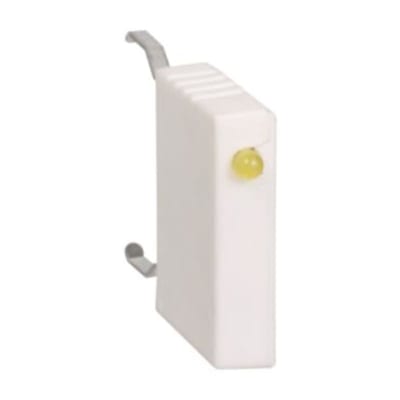

Schneider Electric TeSys K - Suppressor module - varistor - 12...24 V LA4KE1B
Schneider Electric

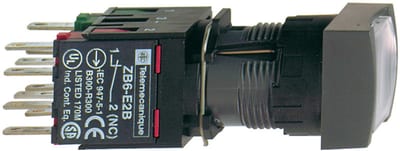

Push-button with light white square
