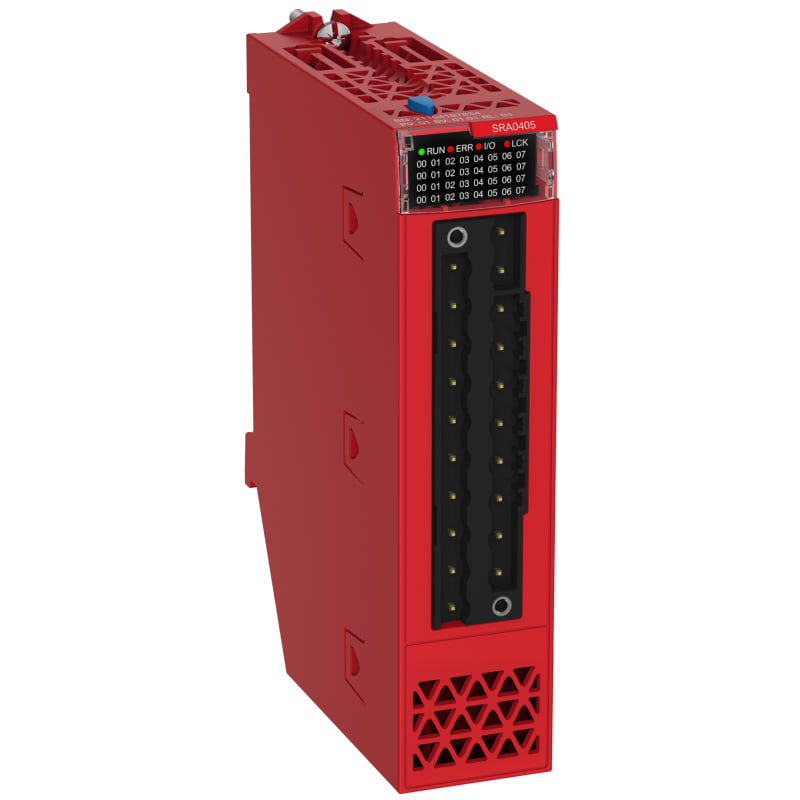

Schneider Electric discrete output module - 4 outputs - relay - Safety BMXSRA0405

Schneider Electric BMXSRA0405 Modicon X80 safety discrete output module with 4 isolated relay outputs, SIL2 / Cat 2 / PLc.

Manufacturer part number (MPN)

BMXSRA0405 EAN / GTIN: 3606481204936 Sales unit: pcs Package quantity: 8 pcs Range of product: Modicon X80 Product or component type: Discrete output module minimum switching current: 10 mA 5 V DC Response time on output: 12 ms activation; 6 ms deactivation Insulation resistance: > 10 MOhm 500 V DC Switching frequency: <= 50 Hz Maximum switching voltage: 230 V AC MTBF reliability: 624000 H Protection type: External short-circuit protection; overvoltage protection, inductive AC network ; overvoltage protection, inductive DC network ; External overload protection Product weight: 0.145 kg IP degree of protection: IP20 Protective treatment: Conformal coating Dielectric strength: 2000 V AC at 50/60 Hz 1 min Relative humidity: 5…95 % at 55 °C without condensation Environmental characteristic: Gas resistant class Gx; Gas resistant class 3C4; Dust resistant class 3S4; Sand resistant class 3S4; Salt resistant level 2; Mold growth resistant class 3B2; Fungal spore resistant class 3B2 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 5.500 cm Package 1 Width: 18.000 cm Package 1 Length: 26.000 cm Package 1 Weight: 389.000 g Unit Type of Package 2: S03 Number of Units in Package 2: 8 Package 2 Height: 30.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 3.570 kg Country of origin: FR Warranty (in months): 18 Power consumption: 3.9 W Voltage type (supply voltage): DC Number of digital outputs: 4 digital inputs configurable: No digital outputs configurable: No Input current at signal 1: 0.65 mA Type of voltage (input voltage): DC Type of digital output: Relay Output current: 3 A Type of output voltage: DC Short-circuit protection, outputs available: Yes Redundancy: No Type of electric connection: Plug-in connection Suitable for safety functions: Yes SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: ATEX gas-ex-protection, Cat. 1G Explosion safety category for dust: ATEX dust-ex-protection, Cat. 1D Width: 33 mm Height: 100 mm Depth: 150 mm

HS Code

8538.90

• EAN 3606481204936
• SAP 1200289720
• Code 82264989
