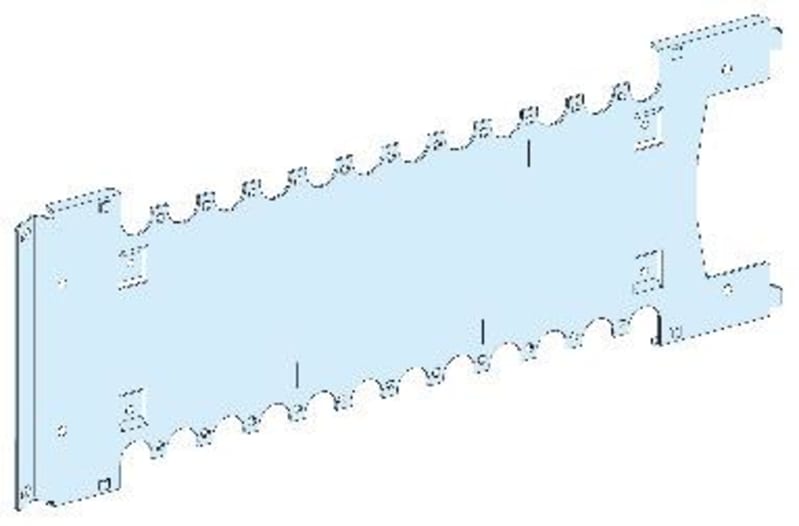

Mounting plate NSX100-250 plugin Vertical P

Schneider Electric LVS03421 Mounting plate for NSX100-250/INS250-plugin-vertical mounting-3P/4P-PrismaSeT P-for 650mm section.

Manufacturer part number (MPN)

LVS03421

EAN / GTIN

3606481874320

Sales unit

pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P cubicle

installation description

Cubicle - width 650 mm depth 400 mm

Installed device

ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: drawout NSX250 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX250 with earth leakage protection - control: motor mechanism - vertical installation

Poles description

4 x 3P: plug-in NSX100...160 vertical installation; 3 x 4P: plug-in NSX100...160 vertical installation; 2 x 3P: drawout NSX100...160 vertical installation; 2 x 4P: drawout NSX100...160 vertical installation; 4 x 3P: plug-in NSX250 vertical installation; 3 x 4P: plug-in NSX250 vertical installation; 2 x 3P: drawout NSX250 vertical installation; 2 x 4P: drawout NSX250 vertical installation

Number of vertical modules [50 mm]

8 module(s): NSX100...160 without earth leakage protection , direct in 650 mm Widecubicle; 9 module(s): NSX250 without earth leakage protection , direct in 650 mm Widecubicle; 10 module(s): NSX100...160 with earth leakage protection , direct in 650 mm Widecubicle; 11 module(s): NSX250 with earth leakage protection , direct in 650 mm Widecubicle; 7 module(s): NSX100...160 without earth leakage protection , Linergy FC in 650 mm Widecubicle; 9 module(s): NSX100...160 without earth leakage protection , direct in 650 mm Widecubicle; 8 module(s): NSX250 without earth leakage protection , Linergy FC in 650 mm Widecubicle; 10 module(s): NSX250 without earth leakage protection , direct in 650 mm Widecubicle; 9 module(s): NSX100...160 with earth leakage protection , Linergy FC in 650 mm Widecubicle; 11 module(s): NSX100...160 with earth leakage protection , direct in 650 mm Widecubicle; 9 module(s): NSX100...160 with earth leakage protection , direct in 650 mm Widecubicle; 10 module(s): NSX250 with earth leakage protection , Linergy FC in 650 mm Widecubicle; 12 module(s): NSX250 with earth leakage protection , direct in 650 mm Widecubicle; 10 module(s): NSX250 with earth leakage protection , direct in 650 mm Widecubicle

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Textured; Matt

Colour

White (RAL 9003)

Width

603 mm

Height

202 mm

Depth

372 mm

Product weight

3.2 kg

Functional unit

650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle vertical 3P 4 Linergy FC 7 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism vertical 3P 4 Linergy FC 7 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle vertical 4P 3 Linergy FC 7 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism vertical 4P 3 Linergy FC 7 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 3P 4 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 4P 3 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle vertical 3P 4 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle vertical 4P 3 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism vertical 3P 4 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism vertical 4P 3 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle vertical 3P 2 direct 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout toggle vertical 4P 2 direct 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle vertical 3P 2 direct 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout direct front rotary handle vertical 4P 2 direct 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism vertical 3P 2 direct 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without drawout motor mechanism vertical 4P 2 direct 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle vertical 3P 4 Linergy FC 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism vertical 3P 4 Linergy FC 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle vertical 4P 3 Linergy FC 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism vertical 4P 3 Linergy FC 8 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 3P 4 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 4P 3 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle vertical 3P 4 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle vertical 4P 3 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism vertical 3P 4 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism vertical 4P 3 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle vertical 3P 2 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout toggle vertical 4P 2 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle vertical 3P 2 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout direct front rotary handle vertical 4P 2 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without drawout motor mechanism vertical 3P 2 direct 9 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle vertical 3P 2 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout toggle vertical 4P 2 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle vertical 3P 2 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout direct front rotary handle vertical 4P 2 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism vertical 3P 2 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with drawout motor mechanism vertical 4P 2 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle vertical 3P 4 Linergy FC 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism vertical 3P 4 Linergy FC 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle vertical 4P 3 Linergy FC 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism vertical 4P 3 Linergy FC 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 3P 4 direct 12 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 4P 3 direct 12 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle vertical 3P 4 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle vertical 4P 3 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism vertical 3P 4 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism vertical 4P 3 direct 10 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle vertical 3P 2 direct 11 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout toggle vertical 4P 2 direct 11 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle vertical 3P 2 direct 11 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout direct front rotary handle vertical 4P 2 direct 11 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism vertical 3P 2 direct 11 187.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with drawout motor mechanism vertical 4P 2 direct 11 187.5 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.700 cm

Package 1 Width

20.500 cm

Package 1 Length

58.000 cm

Package 1 Weight

3.277 kg

Unit Type of Package 2

P12

Number of Units in Package 2

50

Package 2 Height

45.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

181.000 kg

Country of origin

IT

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

HS Code

7326.90

• EAN 3606481874320
• SAP 1200546674
• Code 82879790
