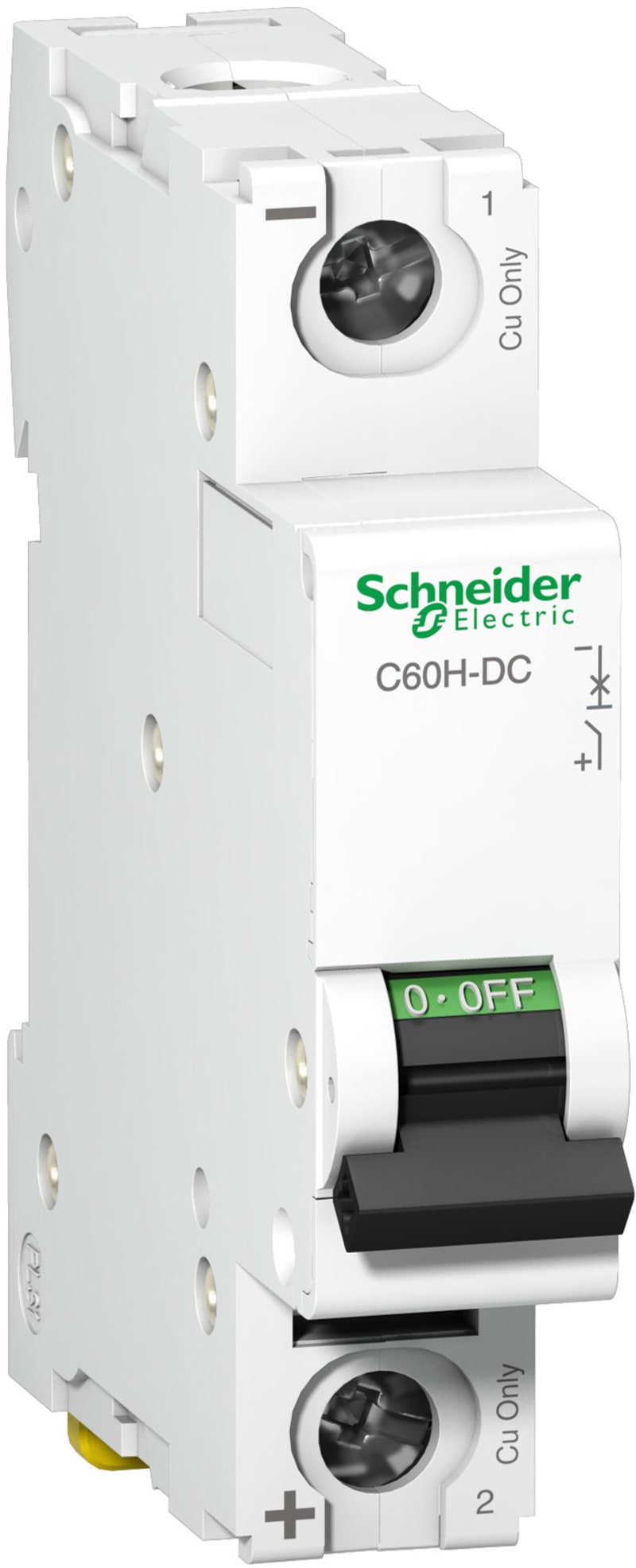

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C60H-DC, 1P, 15A, C curve, 6KA (IEC/EN 60947-2) A9N61510

Schneider Electric A9N61510 Miniature circuit breaker C60H-DC 15A 1P/C.

Manufacturer part number (MPN)

A9N61510

EAN / GTIN

3606480424113

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Number of poles

1P

Range

Acti9

Product name

Acti9 C60H-DC

Product or component type

Miniature circuit-breaker

Device short name

C60H-DC

Device application

Distribution

Poles description

1P

Number of protected poles

1

[In] rated current

15 A at 25 °C

Network type

DC

Trip unit technology

Thermal-magnetic

Curve code

C

Breaking capacity

10 kA Icu at 220 V DC conforming to EN 60947-2; 10 kA Icu at 220 V DC conforming to IEC 60947-2; 6 kA Icu at 250 V DC conforming to EN 60947-2; 6 kA Icu at 250 V DC conforming to IEC 60947-2; 20 kA Icu at 110 V DC conforming to EN 60947-2; 20 kA Icu at 110 V DC conforming to IEC 60947-2

Utilisation category

Category A conforming to EN 60947-2; Category A conforming to IEC 60947-2

Suitability for isolation

Yes conforming to IEC 60947-2; Yes conforming to EN 60947-2

Standards

EN 60947-2; IEC 60947-2

Network frequency

50/60 Hz

[Ue] rated operational voltage

250 V DC

[Ics] rated service breaking capacity

15 kA 75 % conforming to EN 60947-2 - 110 V DC; 15 kA 75 % conforming to IEC 60947-2 - 110 V DC; 4.5 kA 75 % conforming to EN 60947-2 - 250 V DC; 4.5 kA 75 % conforming to IEC 60947-2 - 250 V DC; 7.5 kA 75 % conforming to EN 60947-2 - 220 V DC; 7.5 kA 75 % conforming to IEC 60947-2 - 220 V DC

[Ui] rated insulation voltage

500 V DC conforming to IEC 60947-2; 500 V DC conforming to EN 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN 60947-2; 6 kV conforming to IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

Comb busbar and distribution block compatibility

Top or bottom: standard

9 mm pitches

2

Product weight

0.128 kg

Colour

White

Mechanical durability

20000 cycles

Electrical durability

3000 cycles L/R = 2 ms

Provision for padlocking

Padlockable

Locking options description

In position O

Tightening torque

Power circuit: 2.5 N.m top or bottom

Earth-leakage protection

Without

Pollution degree

3 conforming to EN 60947-2; 3 conforming to IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-2

Operating altitude

2000 m

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

HS Code

8536.90
