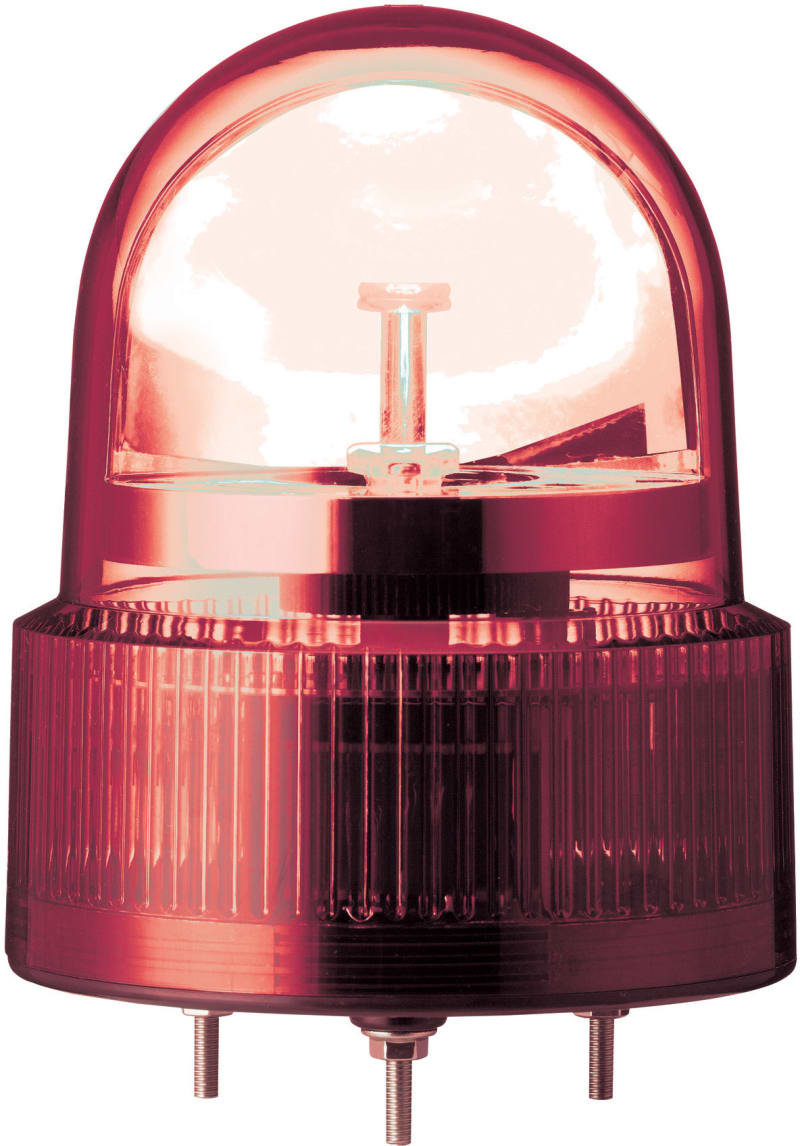

Schneider Electric XVR12B04S 120 mm Rotating Mirror Beacon Red 24 V AC/DC

The Schneider Electric XVR12B04S is a prewired rotating mirror beacon from the Harmony XVR range, 120 mm in diameter with a red high-luminosity LED light source and integrated buzzer for combined audible signalling. It operates on 24 V AC or DC with a 2.3 Hz flashing frequency, IP23 protection and a 400 mm pre-wired cable, mounted with three M5 screws. Typical application is combined visual and audible status indication on machines and process equipment in industrial environments.

Manufacturer part number (MPN)

XVR12B04S

EAN / GTIN

3606480033230

Sales unit

pcs

Package quantity

8 pcs

Voltage

24 V

Range of product

Harmony XVR

Product or component type

Prewired rotating mirror beacon

Sound signalling

Buzzer

Device short name

XVR

Mounting diameter

120 mm

IP degree of protection

IP23 conforming to IEC 60529

[Us] rated supply voltage

24 V AC/DC

Light source

High luminosity LED, red

Noise level

50…90 dB (continuous or intermittent tone) at 1 m

Material

ABS (acrylonitrile butadiene-styrene): body part; AS: globe

CAD overall width

120 mm

CAD overall depth

120 mm

Product weight

0.5 kg

Marking

CE

Product mounting

By 3 M5 screws

Supply voltage limits

19…30 V DC; 21.6…26.4 V AC

[Uimp] rated impulse withstand voltage

0.8 kV

Current consumption

196 mA

Flashing frequency

2.3 Hz

Clamping connection capacity

0.83 mm²

AWG gauge

18 AWG

Cable length

400 mm

Standards

IEC 61000-6-4; IEC 61000-6-2

Protective treatment

TC

Ambient air temperature for storage

-35…70 °C

Ambient air temperature for operation

-10…50 °C

Electrical shock protection class

Class II conforming to IEC 61140

Number of Units in Package 1

1

Number of Units in Package 2

8

Country of origin

ID

Warranty (in months)

18

Nominal voltage

24 V

Type of current

AC/DC

Electricity consumption

0.196 A

Power

4.7 W

Degree of protection (IP)

IP23

Colour of lamp hood

Red

Lamp type

LED

Optics

Mirror

HS Code

8531.80
