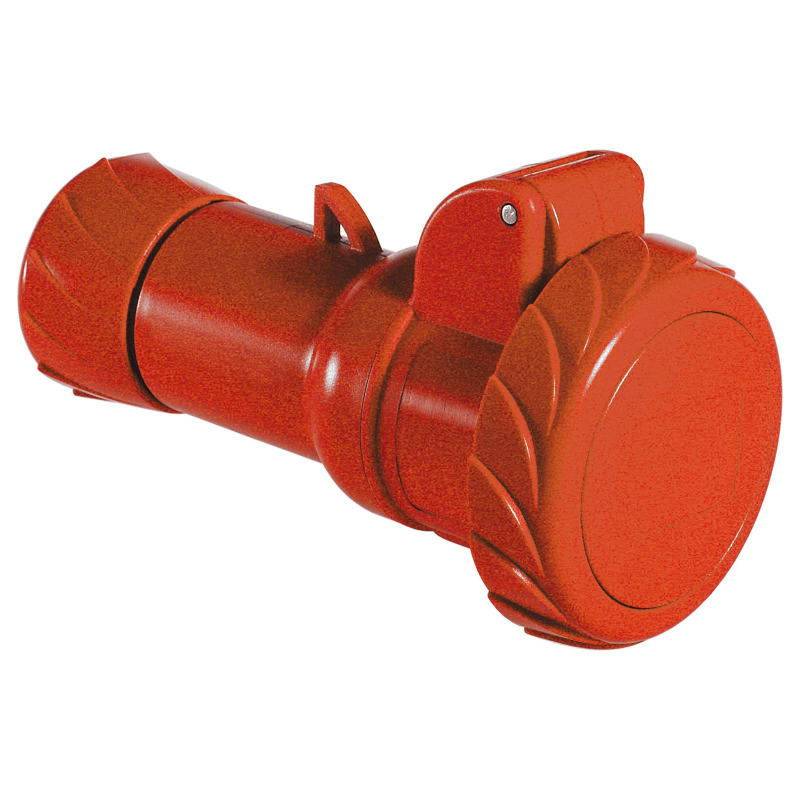

Coupler connector 32A 4P+E 400V IP67

Schneider Electric PKY32M7C4 PratiKa coupler socket for container - 32 A - 3P+E - 400.440 V AC - IP 67.

Manufacturer part number (MPN)

PKY32M7C4

EAN / GTIN

3303432322038

Sales unit

pcs

Package quantity

6 pcs

Voltage

400 V

IP rating

IP67

Rated current

32 A

Range of product

PratiKa

Product or component type

Wander socket

Device short name

PratiKa socket

Plug, socket category

Low voltage

Industrial socket type

Fast

Poles description

3P + E

Network type

AC

Outlet standard

Industrial

[In] rated current

32 A

[Ue] rated operational voltage

400...440 V

Network frequency

50/60 Hz

Ground lug clockwise position

3 h

Plug, socket material

Housing: self-extinguishing engineering polymer

Contacts material

Sleeves: brass

Connections - terminals

Fast connection

Cable cross section

2.5…6 mm²

Cable outer diameter

11.5…21 mm

Product weight

0.309 kg

Height

99 mm

Width

99 mm

Depth

164 mm

Colour

Grey (RAL 7035)

Voltage colour

Red

Standards

EN 60309-1; EN 60309-2

IP degree of protection

IP67 conforming to IEC 60529

IK degree of protection

IK08 conforming to EN 62262

Fire resistance

850 °C conforming to IEC 60695-2-1

Relative humidity

50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C

Ambient air temperature for operation

35 °C ( 86400 s )

Warranty (in months)

18

IEC-amperage

32 A

Number of poles

4

Voltage according to EN 60309-2

400-440 V (50+60 Hz) red

Clock hour position

3 h

Identification colour

Red

RAL-number

7035

Degree of protection (IP)

IP67

Connection system

Screwless terminal

Insert direction

Straight

Material

Plastic

Military model

No

Country of origin

Italy

HS Code

8536.69
