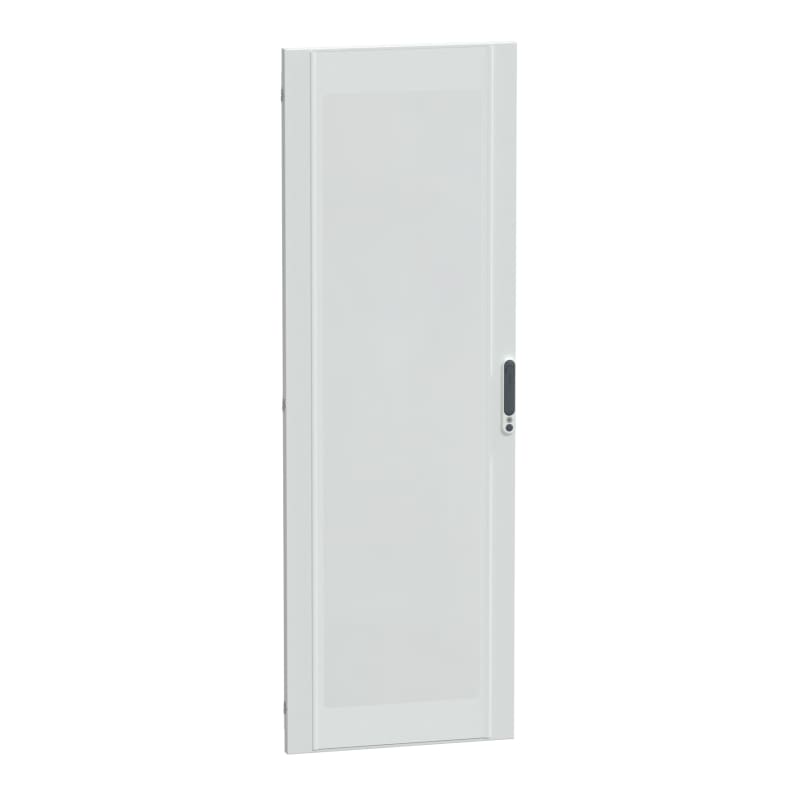

Transparent door IP30 PrismaSeT P B650MM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08536 Transparent door IP30 PrismaSeT P B650mm- with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08536
- EAN / GTIN
- 3606481878809
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 2 hinge
- Enclosure mounting
- Floor-standing
- type of door
- Transparent
- IP degree of protection
- IP30
- installation description
- Cubicle - width 650 mm
- Door opening side
- Reversible
- Number of locks
- 2
- door opening angle
- 120 °
- Number of vertical modules [50 mm]
- 36
- Enclosure material
- Glass; Treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1925 mm
- Width
- 650 mm
- Product weight
- 18 kg
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK10 conforming to EN/IEC 62262
- Standards
- IEC 61439-1; IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 30 mm
- EMC-version
- No
- Material
- Glass
- Degree of protection (IP)
- IP30
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7020.00
Cross References
- EAN 3606481878809
- SAP 1200547292
- Code 82879723
Product Documentation
