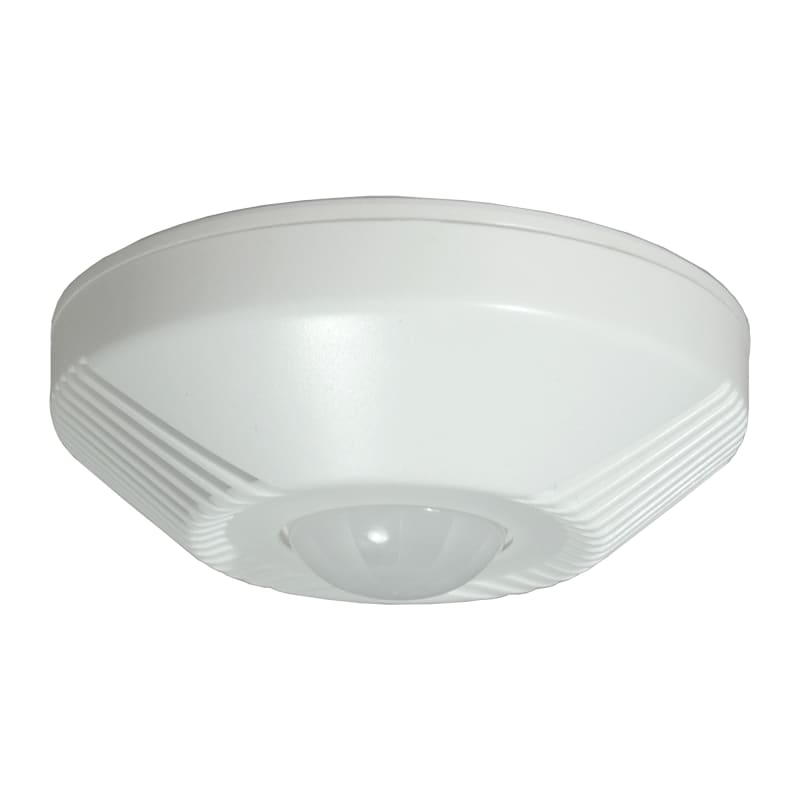

Schneider Electric ARGUS Presence Dual-Tech - 1CH CCT551011

Schneider Electric CCT551011 ARGUS motion detector Dual-Tech - 1 channel.

Manufacturer part number (MPN)

CCT551011

EAN / GTIN

3606480995521

Sales unit

pcs

Package quantity

8 pcs

Range of product

ARGUS standard movement detector

Range

ARGUS

Product or component type

Presence detector with IR receiver

Load type

LED lighting: : 100 W; Incandescent lamps: : 2000 W - 230 V; Halogen lamp: : 1000 W - 230 V; Halogen lamp with standard electronic transformer: 1000 VA; Halogen lamp with standard ferromagnetic transformer: 1000 VA; Fluorescent tube: 900 VA, 100 µF

Colour tint

White

Network frequency

50/60 Hz

Input function

Switch; External trigger

Output voltage

220...250 V

Output current

10 A

Number of channels

2

Control type

Movement sensor

Function available

Switching, toggling, dimming

Light intensity adjustment

10…1000 lux

Horizontal detection angle

360 °

Mounting height

2.5 m

IP degree of protection

IP20

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

64

Country of origin

CN

Warranty (in months)

18

Nominal voltage

230 V

Colour

White

Width

111.5 mm

Model

Presence detector

Halogen free

Yes

Height

111.5 mm

Depth

90 mm

Surface protection

Untreated

Creep-under protection

Yes

Voltage type

AC

Built-in depth

46.5 mm

Frequency

50–60 Hz

With remote control

No

Diameter

111.5 mm

Built-in width

60 mm

Built-in diameter

60 mm

Staircase light controller

Yes

Bridging switch

No

Suitable for wireless transmission

No

Max. reach frontally

16 m

Max. reach sideways

10 m

Max. switching power

2000 W

Temperature

0–45 °C

Max. starting current

10 A

Material

Plastic

Response value sensitivity adjustable

Yes

Dim function with dimmer basic element

No

Response value luminosity

10–1000 lx

Suitable for C-load

No

Diameter reach on floor

36 m

Remote operation

Yes

HVAC-control

No

Constant light control

No

With signal unit

No

Networkable

No

Forced switch off

Yes

Scan angle

360 °

Built-in length

60 mm

With connection cable

No

Degree of protection (IP)

IP20

With alarm function

No

Transparent

No

Animal zone

No

Surface finishing

Glossy

Detection angle horizontal

0–360 °

Min. switch-on time

5 s

Max. duty cycle

30 min

Suitable for wall mounting

No

Response value luminosity adjustable

Yes

Optimum mounting height

2.5 m

Constant light output (CLO)

No

With DALI interface

No

IFTTT support available

No

Forced switch on

Yes

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Compatible with Casambi

No

Background monitoring

No

With acoustic sensor

No

Movement sensor/presence detector technology

Passive infrared

Sensor type

Passive infrared

Suitable for ceiling mounting

Yes

Anti-bacterial treatment

No

HS Code

8538.90
