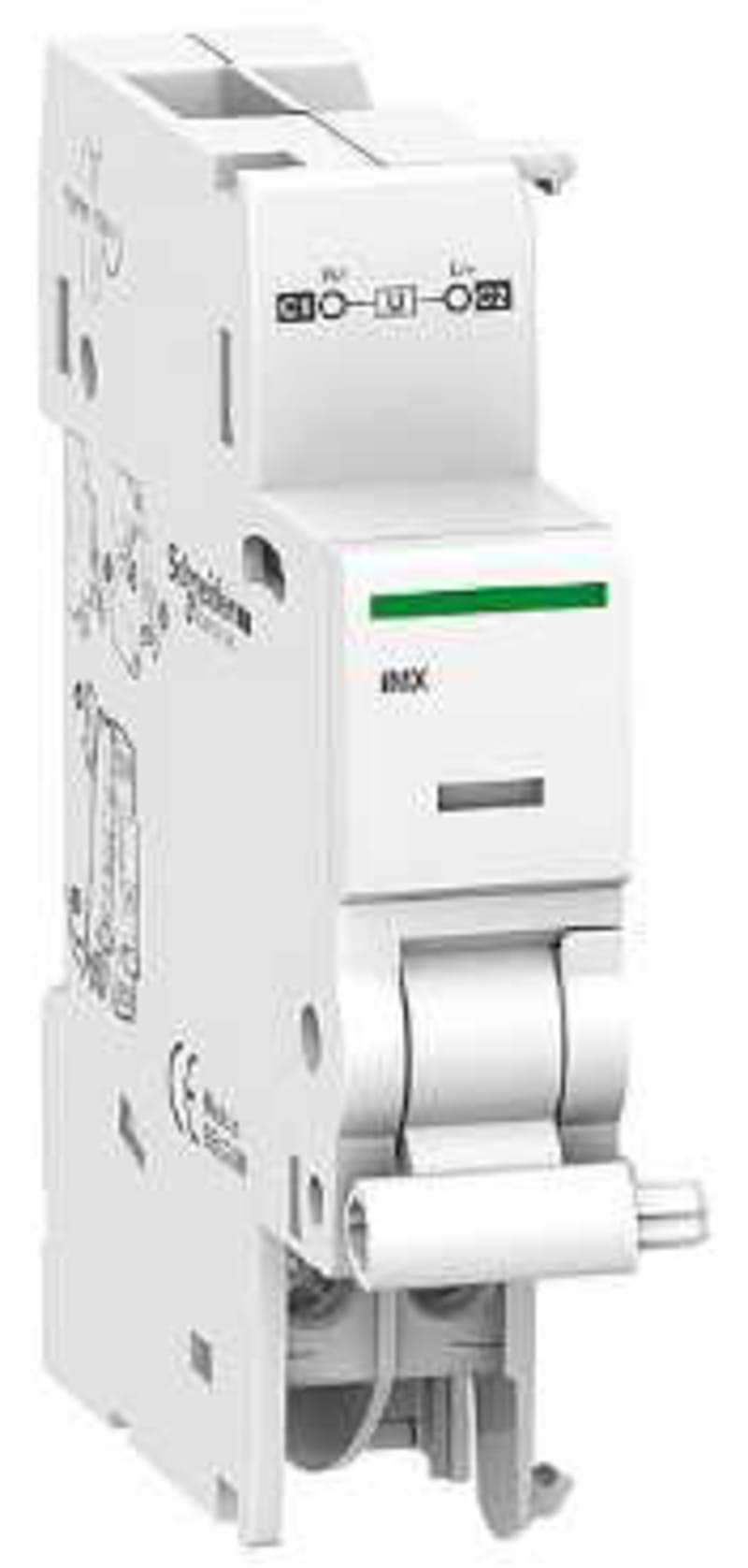

Schneider Electric A9A26476 voltage release - iMX - tripping unit - 110..415 VAC

Schneider Electric A9A26476 voltage release - iMX - tripping unit - 110..415 VAC is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 8 pcs; range of product: Acti9; Product or component type: Shunt trip release; Device short name: iMX; [Uc] control circuit voltage: 110...415 V AC 50/60 Hz; 110...130 V DC.

Manufacturer part number (MPN)

A9A26476

EAN / GTIN

3606480087950

Sales unit

pcs

Package quantity

8 pcs

range of product

Acti9

Product or component type

Shunt trip release

Device short name

iMX

[Uc] control circuit voltage

110...415 V AC 50/60 Hz; 110...130 V DC

9 mm pitches

2

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Local signalling

Action indicator

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top and bottom: YES

Width

18 mm

Colour

White

Connections - terminals

Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable end; Clamp terminal - 1 cable(s) 6 mm² - rigid; Clamp terminal - 2 cable(s) 2.5 mm² - rigid; Clamp terminal - 1 cable(s) 4 mm² - flexible

Tightening torque

1 N.m

Standards

EN/IEC 60947-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8 cm

Package 1 Width

2.8 cm

Package 1 Length

9.4 cm

Package 1 Weight

72 g

Unit Type of Package 2

BB1

Number of Units in Package 2

8

Package 2 Height

8.5 cm

Package 2 Width

10 cm

Package 2 Length

27 cm

Package 2 Weight

633 g

Unit Type of Package 3

S03

Number of Units in Package 3

72

Package 3 Height

30 cm

Package 3 Width

30 cm

Package 3 Length

40 cm

Package 3 Weight

6.111 kg

Country of origin

BE

Warranty (in months)

18

Function

Shunt release (for power circuit breaker)

Voltage type

AC

Rated voltage

415 V

Installed at the factory

No

Width in number of modular spacings

1

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Shunt release (for power circuit breaker)

Voltage type for actuating

AC

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

HS Code

8536.50

• EAN 3606480087950
• SAP 1000326874
• Code 8355772
