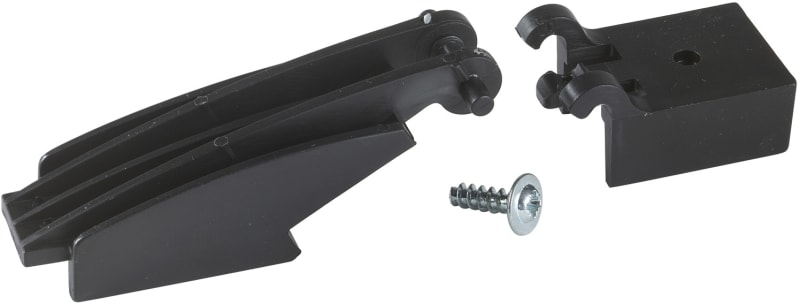

Doorstopper (NSYAEDRS3DPA6)

Schneider Electric NSYAEDRS3DPA6 — Door retainer system for PanelSet S3D encl., Cannot be mounted on encl. H>400.

Manufacturer part number (MPN)

NSYAEDRS3DPA6

EAN / GTIN

3606480168796

Sales unit

pcs

Package quantity

300 pcs

Range

PanelSeT

Product or component type

Door retainer

Application

Multi-purpose

Nominal dimensions of the housing

-

Mounting location

On door reinforcement frame

Range compatibility

PanelSeT S3D S3D enclosure; PanelSeT cannot be installed on 19" mounting plates; PanelSeT CRNG version; PanelSeT enclosures with a height of less than 400 mm

Device composition

1 x retainer

Material

Polyamide 6

Colour

Black

Fixing mode

Clipped - on door reinforcement frame location

Adjustment

At the required height for on door reinforcement frame

Operating angle

120 °

Opening mechanism

Holding system

Product weight

0.013 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

8.000 cm

Package 1 Length

10.000 cm

Package 1 Weight

11.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

300

Package 2 Height

20.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.906 kg

Country of origin

FR

Warranty (in months)

18

Model

Door detent

HS Code

8302.42

• EAN 3606480168796
• SAP 1000088898
• Code 8900438
