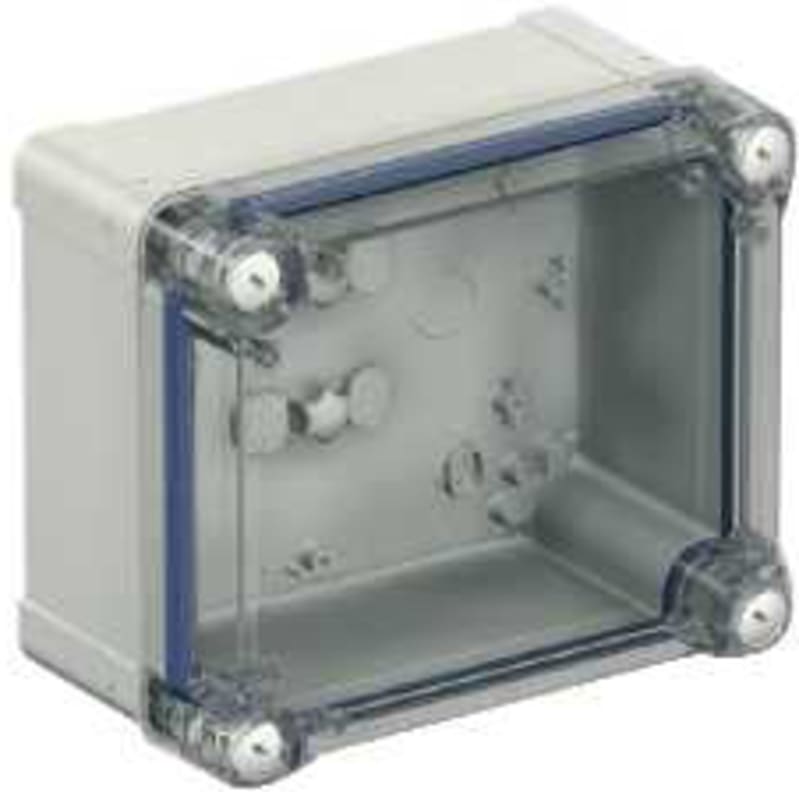

Schneider Electric PC box IP66 IK08 RAL7035 INT.H225W175D120 EXT.H241W194D127 Transparent cover H40 NSYTBP241912HT
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBP241912HT 85134 Pc Box 241X194X127 K.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBP241912HT
- EAN / GTIN
- 3606480165870
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Dimensions
- 241×194×127
- Range
- PanelSeT
- Product name
- PanelSeT TBP
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 241 mm
- Width
- 194 mm
- Depth
- 127 mm
- Internal height
- 225 mm
- Internal width
- 175 mm
- Internal depth
- 120 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- High transparent cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Polycarbonate
- Colour
- Grey (RAL 7035); Transparent
- Standards
- UL 508 A; IEC 62208
- Product certifications
- TÜV; UL
- Electrical insulation class
- Class II
- Mounting location
- Outdoor (with canopy or shelter and anticondensation valve)
- Product weight
- 0.82 kg
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK08 conforming to IEC 62262
- Fire resistance
- 960 °C
- Ambient air temperature for storage
- -15…60 °C
- Operating temperature
- -25…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 96
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480165870
- SAP 1000090208
- Code 8924949
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 110V AC 50/60Hz coil, screw clamp terminals LC1D18F7
Schneider Electric
Selector switch with LIGHT 2ST.RED LED (ZB4BK1243)
Schneider Electric
Schneider Electric ABS box IP66 IK07 RAL7035 INT.H275W225D120 EXT.H291W241D128 Opaque cover H60 NSYTBS292412H
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 38A, 24V DC coil, screw clamp terminals LC1D38BD
Schneider Electric
Schneider Electric communication cable, 2 x RJ45 male connectors, 1 m length, set of 5 parts TRV00810
Schneider Electric
Schneider Electric thermal overload relays, TeSys Deca, 95...120A, class 10A, lug clamps LRD4367
Schneider Electric
Schneider Electric OptiLine 45 - ceiling frame - polar white ISM20812P
Schneider Electric
Schneider Electric MUR35022 Mureva Styl Surface Double 2-Way Switch 10 AX IP55 Anthracite
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYTBP241912HT?
- NSYTBP241912HT can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYTBP241912HT.
- What is the HS code for NSYTBP241912HT?
- The customs tariff (HS) code for NSYTBP241912HT is 3925.90.
- Who manufactures NSYTBP241912HT?
- NSYTBP241912HT is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYTBP241912HT?
- Yes — the NSYTBP241912HT datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYTBP241912HT?
- The minimum order quantity is 1.
- Is NSYTBP241912HT available?
- Yes — NSYTBP241912HT is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
