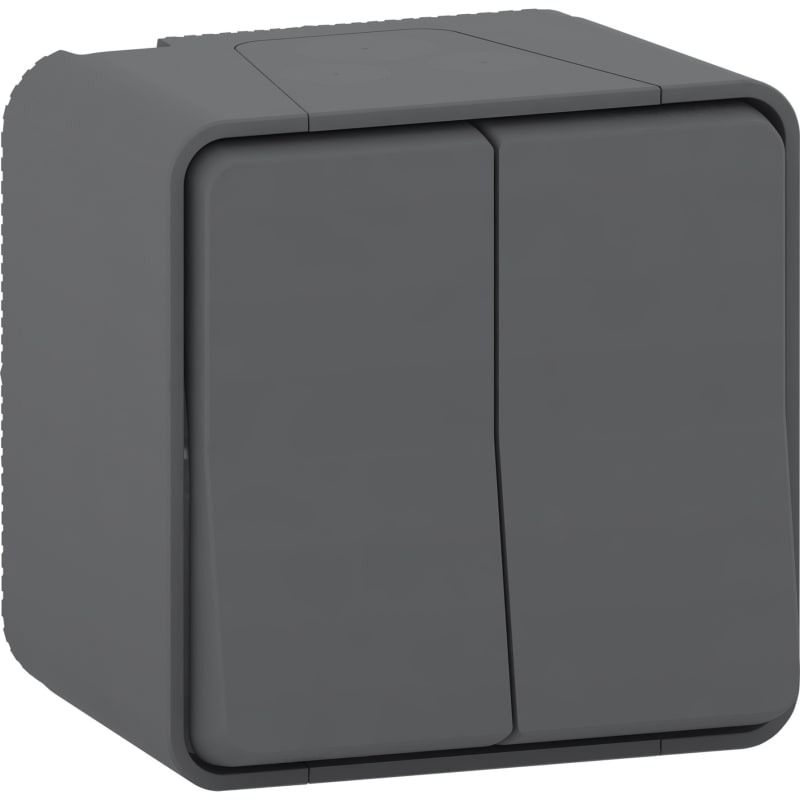

Schneider Electric MUR35022 Mureva Styl Surface Double 2-Way Switch 10 AX IP55 Anthracite
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MUR35022 Mureva Styl is a complete surface-mounted double two-way switch in anthracite (RAL 7016), rated 10 AX at 250 V with electromechanical rocker actuators. The IP55 IK08 enclosure has a screwless clamping terminal accepting rigid or flexible conductors 1.5 to 2.5 mm² and cable entries for gland diameters 6 to 20 mm, suited to indoor and outdoor conditions. The housing withstands common cleaning agents including diluted bleach, ammonia, and alcohol, making it appropriate for washdown areas. Typical applications include workshops, agricultural buildings, and external lighting circuits with two-point switching.
Technical Specifications
- Manufacturer part number (MPN)
- MUR35022
- EAN / GTIN
- 3606480789236
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- Mureva Styl
- Range of product
- Mureva Styl
- Product or component type
- Switch
- Colour tint
- Anthracite (RAL 7016)
- Device presentation
- Complete product
- Device mounting
- Surface
- surface treatment
- Untreated
- Surface finish
- Matt
- Switch function
- 1-pole 2-way
- [Ue] rated operational voltage
- 250 V
- Rated current
- 10 AX
- Technology type
- Electromechanical
- fixing mode
- By screws
- Load type
- Load for energy saving lamps with ballast: 100 W
- Number of rocker
- 2
- Actuator
- Rocker
- Cable entry
- Easy valve access diameter: 6…20 mm
- Clamping connection capacity
- 1.5...2.5 mm² for rigid cable(s); 1.5...2.5 mm² for stranded cable(s); 1.5...2.5 mm² for flexible cable(s)
- Connections - terminals
- Screwless terminals
- Width
- 76 mm
- Height
- 76 mm
- Depth
- 64 mm
- Projecting depth
- 64 mm
- Material
- SEBS; Brass; ABS (acrylonitrile butadiene-styrene)
- Condition of use
- Indoor/outdoor
- Wire stripping length
- 13 mm
- Chemical and detergent products resistance
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- Quality labels
- CE; NF; AENOR; EAC
- IP degree of protection
- IP55
- IK degree of protection
- IK08
- Flame retardance
- Self-extinguishing 650 °C conforming to IEC 60695-2-1
- Standards
- EN 60669-1
- Ambient air temperature for operation
- -5…40 °C
- Ambient air temperature for storage
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480789236
- SAP 1200200567
- Code 82136452
Product Documentation
