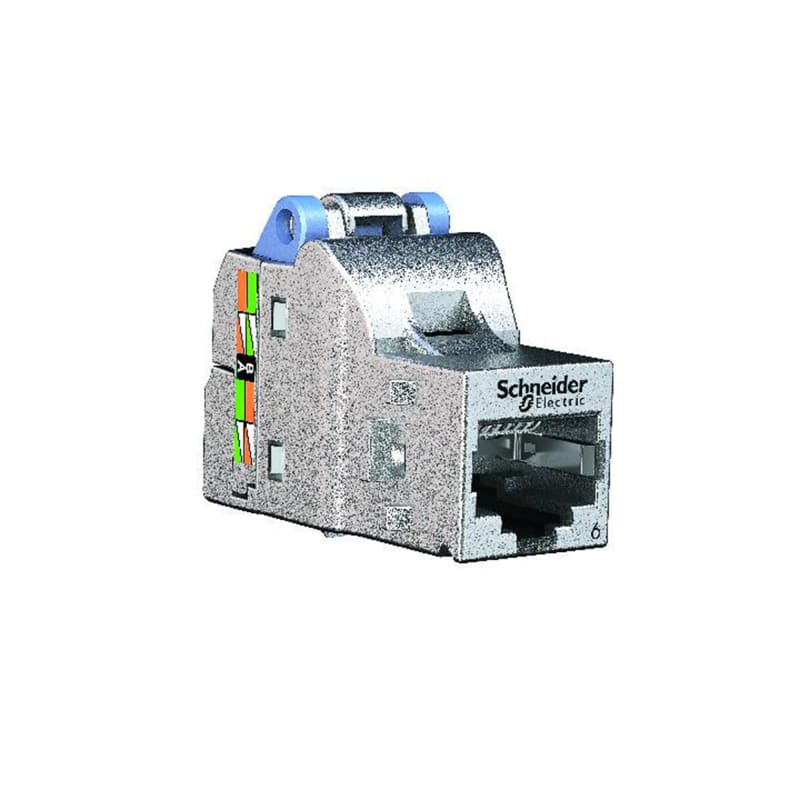

Schneider Electric RJ45 network socket, Actassi, Shielded, Cat 6, DPM box x 12, silver VDIB17716B12

Schneider Electric VDIB17716B12 Actassi S-One shielded connector DPM category 6 for link class E.

Manufacturer part number (MPN)

VDIB17716B12

EAN / GTIN

3606480384745

Sales unit

pcs

Package quantity

12 pcs

Range

Actassi

product type

RJ45 network socket

Device presentation

Integrated one piece design

Colour tint

Connector: silver (zamak); Wire organizer: blue (ABS + PC)

Wiring Colour configuration

568 A/B

Type of packing

Carton

Quantity per set

Set of 12

[In] rated current

1.5 A at 25 °C

voltage proof

1000 V AC/DC peak, between contacts; 1500 V AC/DC peak, between contacts and shield

Contact resistance

20 mOhm

Insulation resistance

Initial insulation resistance: >= 500 MOhm at 100 V DC

AWG gauge

24 AWG...23 AWG

durability

750 cycles

Coupling attenuation

>= 45 dB at 30…100 MHz; >= 85 - 20 x log(f) dB at 100…1000 MHz

contact pins

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Shield Type

Metallic: 360° self adjusting + drain wire contact; Integrated short circuit barrier

Pulling force

50 N during 60 s

Transfer impedance

<= 0.1 Ohm at 1 MHz; <= 0.2 Ohm at 10 MHz; <= 1.6 Ohm at 80 MHz

Transverse conversion loss

>= 50 dB; >= 68 - 20 x log(f) dB at 1…250000 kHz

Tool type

Without tool

Cable outer diameter

0.9…1.4 mm

compatible LAN cable types

STP

Communication network category

6

supported applications

1000BASE-T

protocols

PoE+ (Power over Ethernet); VoIP (Voice IP); 4PPoE 100W (Power over Ethernet)

Product compatibility

RJ45 plug

Transmission frequency

0…250 MHz

Type of footprint

S-One DPM

Material

Zamak: connector; ABS + PC: wire organizer

Height

28 mm

Length

35 mm

Width

18 mm

Targeted region

Europe

Main colour tint

Silver

operational temperature range

-40…70 °C

climatic category

40/070/21 (21 days)

Flame retardance

UL94-V0

Standards

ANSI/TIA-568-C.2; IEC 60603-7-4; ISO/IEC 11801:2011 Ed.2.2; UL 1863; IEC 60512-99-002

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

216

Warranty (in months)

18

Colour

Silver

Model

Bus (jack)

Category

6

Suitable for solid conductors

Yes

Type of connector

RJ45 8(8)

Min. AWG-size

24

Country of origin

Denmark

HS Code

8536.69

• EAN 3606480384745
• SAP 1000338879
• Code 8950674
