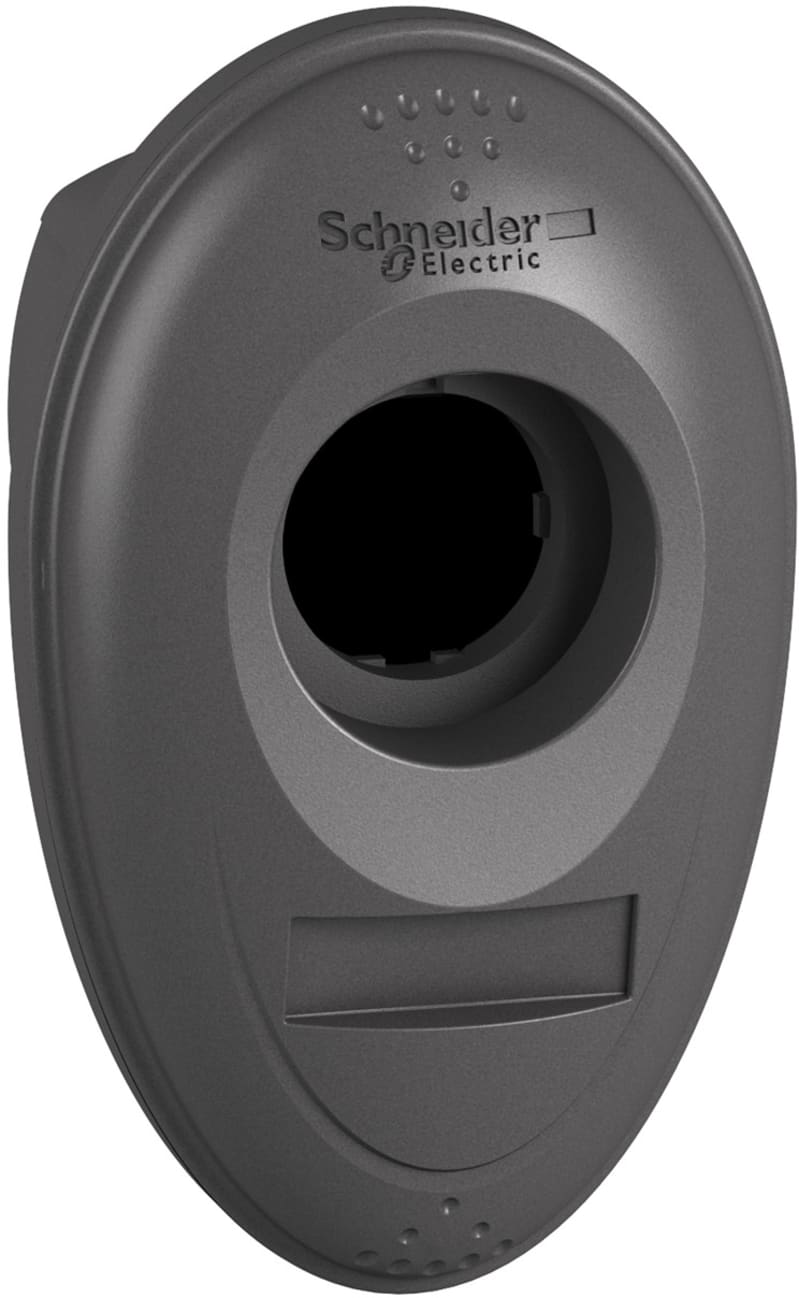

Schneider Electric ZBRM01 Control station - SPS - empty - 1 hole - dark grey RAL 7016
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric ZBRM01 Control station - SPS - empty - 1 hole - dark grey RAL 7016 is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 36 pcs; Range of product: Harmony XB5R; Product or component type: Empty handy box; Device short name: ZBRM; Mounting diameter: 22 mm.
Technical Specifications
- Manufacturer part number (MPN)
- ZBRM01
- EAN / GTIN
- 3606480334696
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Range of product
- Harmony XB5R
- Product or component type
- Empty handy box
- Device short name
- ZBRM
- Mounting diameter
- 22 mm
- Product destination
- For XB5R Ø 22 mm control units
- Control station application
- One function
- Colour of base of enclosure
- Dark grey (RAL 7016)
- Colour of cover
- Dark grey (RAL 7016)
- Material
- Polycarbonate
- Product weight
- 0.2 kg
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…55 °C
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK03 conforming to IEC 62262
- Standards
- ETSI EN 301 489-1; ETSI EN 300 440-1; ETSI EN 300 440-2; ETSI EN 301 489-3; UL 508; CSA C22.2 No 14; IEC 60947-5-1
- Product certifications
- C-Tick; FCC; ANATEL; RSS; BT 2006/95/EC; GOST; CE; SRRC
- Directives
- 2004/108/EC - electromagnetic compatibility; 1999/5/EC - R&TTE directive
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.3 cm
- Package 1 Width
- 9.0 cm
- Package 1 Length
- 9.3 cm
- Package 1 Weight
- 98.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 36
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 4.014 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 100.6 mm
- Height
- 60 mm
- Diameter openings
- 22.5 mm
- Colour housing cover
- Grey
- Housing material
- Plastic
- Construction type housing
- Built-in housing
- Degree of protection (IP)
- IP65
- Housing material quality
- Acrylonitrile butadiene styrene (ABS)
Standards & Compliance
- HS Code
- 8517.71
Cross References
- EAN 3606480334696
- SAP 1000263848
- Code 8217737
