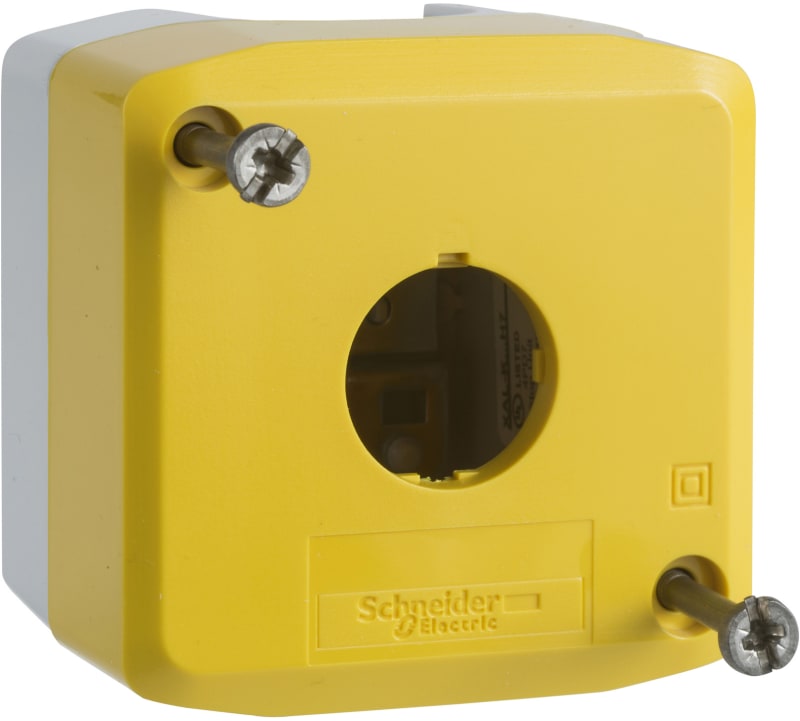

Push-Button Station 1 Hulls Ø22mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XALK01 Emergency stop box Empty 1 Hulls.
Technical Specifications
- Manufacturer part number (MPN)
- XALK01
- EAN / GTIN
- 3389110115826
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Diameter
- 22 mm
- Range of product
- Harmony XALK
- Product or component type
- Empty control station
- Device short name
- XALK
- Product destination
- For XB5 Ø 22 mm control and signalling units
- Control station application
- Emergency stop function; Emergency switching off function
- Number of cut-out
- 1 cut-out
- Colour of base of enclosure
- Light grey (RAL 7035)
- Colour of cover
- Yellow (RAL 1021)
- Material
- Polycarbonate
- Cable entry
- 1 knock-out for cable entry, clamping capacity: 14 mm; 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Assembly style
- For customer assembly
- Number of horizontal rows
- 1
- Number of vertical rows
- 1
- Product weight
- 0.136 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mounting of block
- Front mounting; Rear mounting
- electrical composition code
- SR1; SF1; MR1; MF1
- Main group
- 1 cut-out
- Group of product
- Standard yellow
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536
- NEMA degree of protection
- NEMA 13; NEMA 4X
- IK degree of protection
- IK03 conforming to IEC 62262
- Standards
- IEC 60947-5-5; UL 508; IEC 60947-5-4; JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; JIS C8201-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Number of Units in Package 3
- 480
- Country of origin
- CZ
- Warranty (in months)
- 18
- Width
- 68 mm
- Height
- 68 mm
- Depth
- 53 mm
- Diameter openings
- 22.5 mm
- Number of command positions
- 1
- Colour housing cover
- Yellow
- Housing material
- Plastic
- Construction type housing
- Surface mounted housing
- Degree of protection (IP)
- IP66
- Housing material quality
- Acrylonitrile butadiene styrene (ABS)
