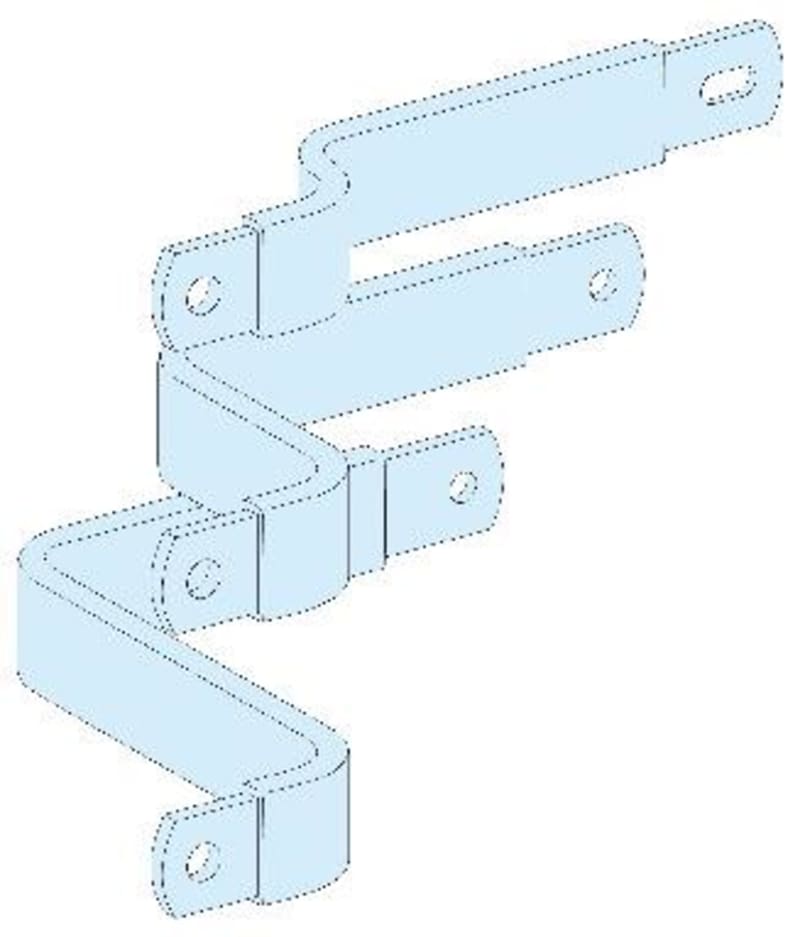

Prefab. Connection Horizontal NSX630/LGY 3P P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04453 — Connection for horizontal fixed NSX630 with toggle, 3P 630A, on Linergy LGY.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04453
- EAN / GTIN
- 3606481867636
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Connection accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 630 A
- Busbar cross section
- 32 x 6 mm
- Product weight
- 2.42 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle horizontal 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle horizontal 3P 1 direct 4
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 27.500 cm
- Package 1 Length
- 30.000 cm
- Package 1 Weight
- 2.348 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 60
- Package 2 Height
- 35.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 154.880 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 630 A
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481867636
- SAP 1200547118
- Code 82879918
Product Documentation
