Schneider Electric ABS box IP66 IK07 RAL7035 INT.H275W225D120 EXT.H291W241D128 Opaque cover H20 NSYTBS292412
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS292412 85017 Abs Box 291X241X128 T.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS292412
- EAN / GTIN
- 3606480165382
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Dimensions
- 291×241×128
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 291 mm
- Width
- 241 mm
- Depth
- 128 mm
- Internal height
- 275 mm
- Internal width
- 225 mm
- Internal depth
- 120 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- Low plain cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 1.08 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 72
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Material quality
- Acrylonitrile butadiene styrene (ABS)
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480165382
- SAP 1000090253
- Code 8925022
Product Documentation
More from Schneider Electric
Schneider Electric

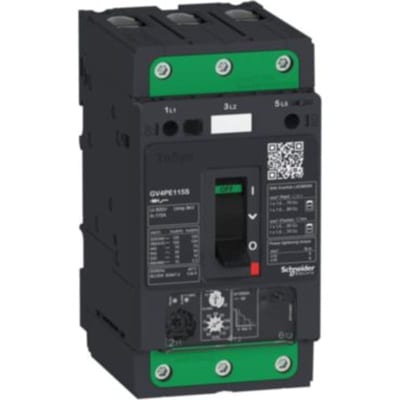

Schneider Electric TeSys GV4 - thermal magnetic circuit breaker - 115A 3P - with Everlink GV4PE115S
Schneider Electric

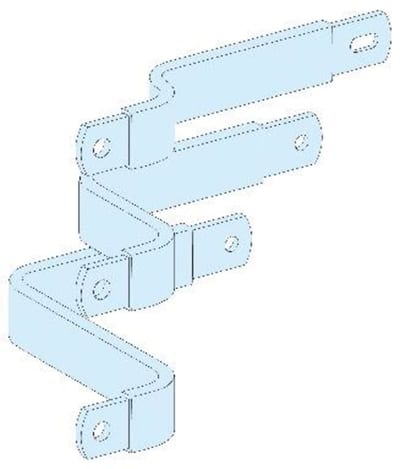

Prefab. Connection Horizontal NSX630/LGY 3P P
LVS04453
Schneider Electric

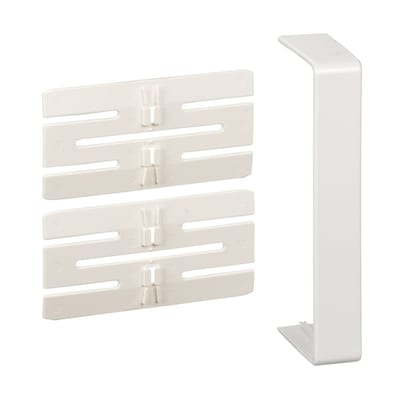

Schneider Electric OptiLine 45 - joint cover piece - 140 x 55 mm - PC/ABS - polar white ISM10306P
Schneider Electric

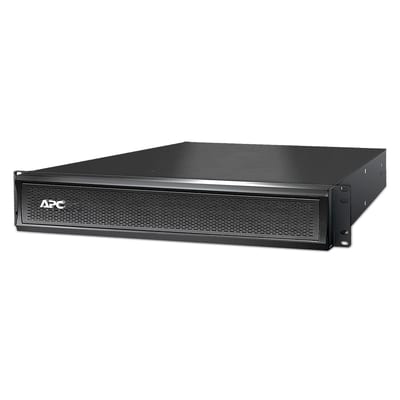

Schneider Electric APC -UPS X-Series 48V External Batt
SMX48RMBP2U
Schneider Electric

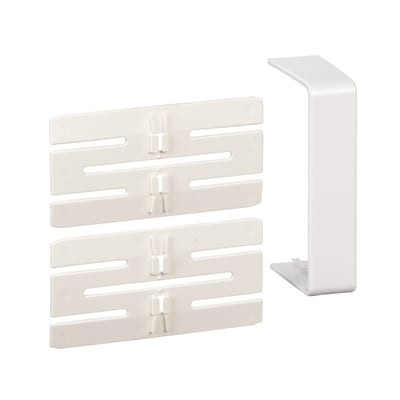

Schneider Electric OptiLine 45 - joint cover piece - 95 x 55 mm - PC/ABS - polar white ISM10206P
Schneider Electric

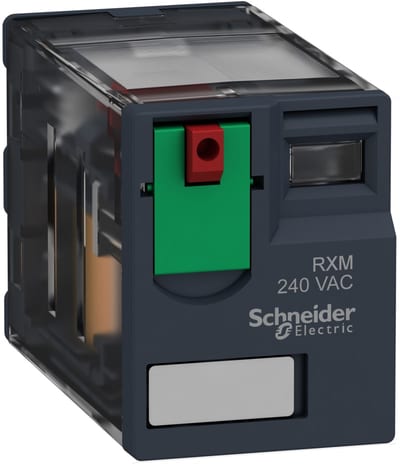

Schneider Electric Miniature plug-in relay, 12 A, 2 CO, 24 V AC RXM2AB1B7
Schneider Electric
Door for PrismaSeT G cabinet 27MOD B600-IP30
LVS08222
Schneider Electric

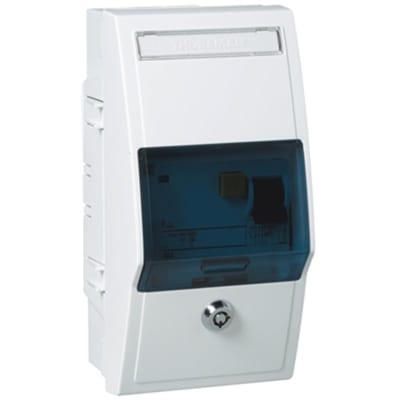

DINKAP1-4 MOD WHITE CYB
