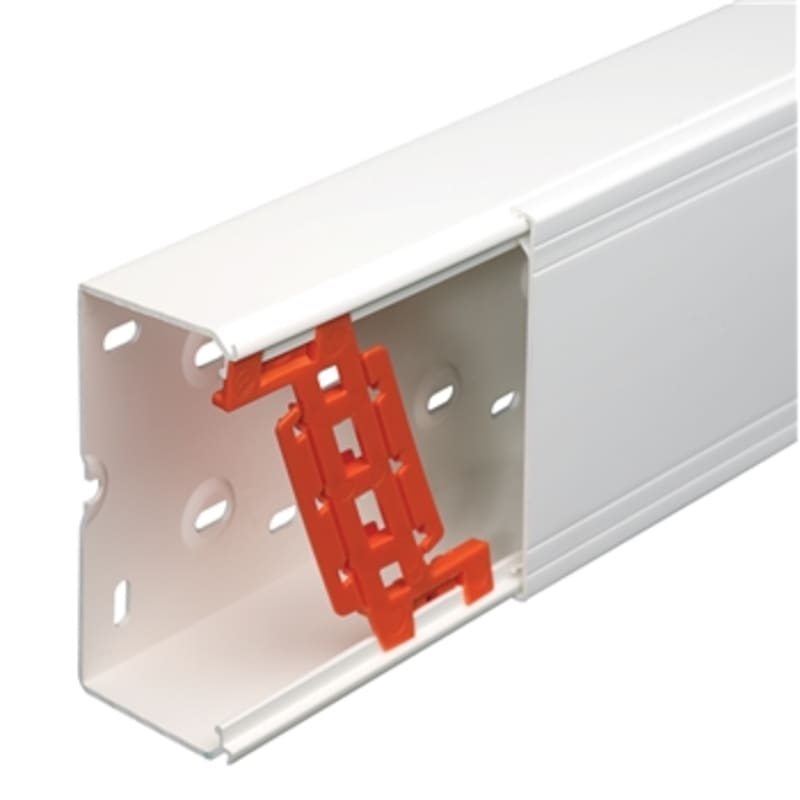

TIR+ Wall Trunking 80x60 mm, 2.5 m, PVC, Polar White
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 5428020 TIR+ wall trunking T8060KL 80x60 mm, L=2.5 m, PVC, polar white RAL 9010.
Technical Specifications
- Manufacturer part number (MPN)
- 5428020
- EAN / GTIN
- 7315885428027
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Width
- 80 mm
- Depth
- 60 mm
- Length
- 2500 mm
- Number of covers
- 1
- Covers included
- Yes
- Cover width 1
- 60 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Material
- Plastic
- Material quality
- Polyvinyl chloride (PVC)
- Halogen free
- No
- Anti-bacterial treatment
- No
- Surface protection
- Untreated
- Colour
- White
- RAL-number
- 9010
- Construction rear wall (inner side)
- Perforated
- With protective foil
- No
- Number of plug-in partitions
- 2
- With duct connector
- No
- Bottom perforation
- Yes
- Mounting method cover
- Spanned
- With cable fixing clip
- Yes
- Usable cross section
- 4800 mm²
- Degree of protection (IP)
- IP40
- Impact strength
- IK07
- Operating temperature
- -5–60 °C
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 7315885428027
- SAP 1200186761
- Code 82118521
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9F07132 ACTI9 IC60H Miniature Circuit Breaker 1P 32 A, Curve C
Schneider Electric
Push-Button Station 1 Hulls Ø22mm
XALK01
Schneider Electric
Schneider Electric TeSys K control relay - 2 NO + 2 NC - <= 690 V - 24 V DC low consumption coil CA4KN22BW3
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 1P+N, 10A, C curve, 6000A, A type, 300MA A9DC7610
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 40A, A-SI type, 300MA, selective, double terminal A9Z35440
Schneider Electric
Schneider Electric NSYS3D3415P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 300X400X150MM, IP66, IK10
Schneider Electric
Schneider Electric ABS box IP66 IK07 RAL7035 INT.H275W225D120 EXT.H291W241D128 Opaque cover H20 NSYTBS292412
Schneider Electric
Schneider Electric TeSys GV4 - thermal magnetic circuit breaker - 115A 3P - with Everlink GV4PE115S
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 5428020?
- 5428020 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 5428020.
- What is the HS code for 5428020?
- The customs tariff (HS) code for 5428020 is 3925.90.
- Who manufactures 5428020?
- 5428020 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for 5428020?
- Yes — the 5428020 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 5428020?
- The minimum order quantity is 1.
- Is 5428020 available?
- Yes — 5428020 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
