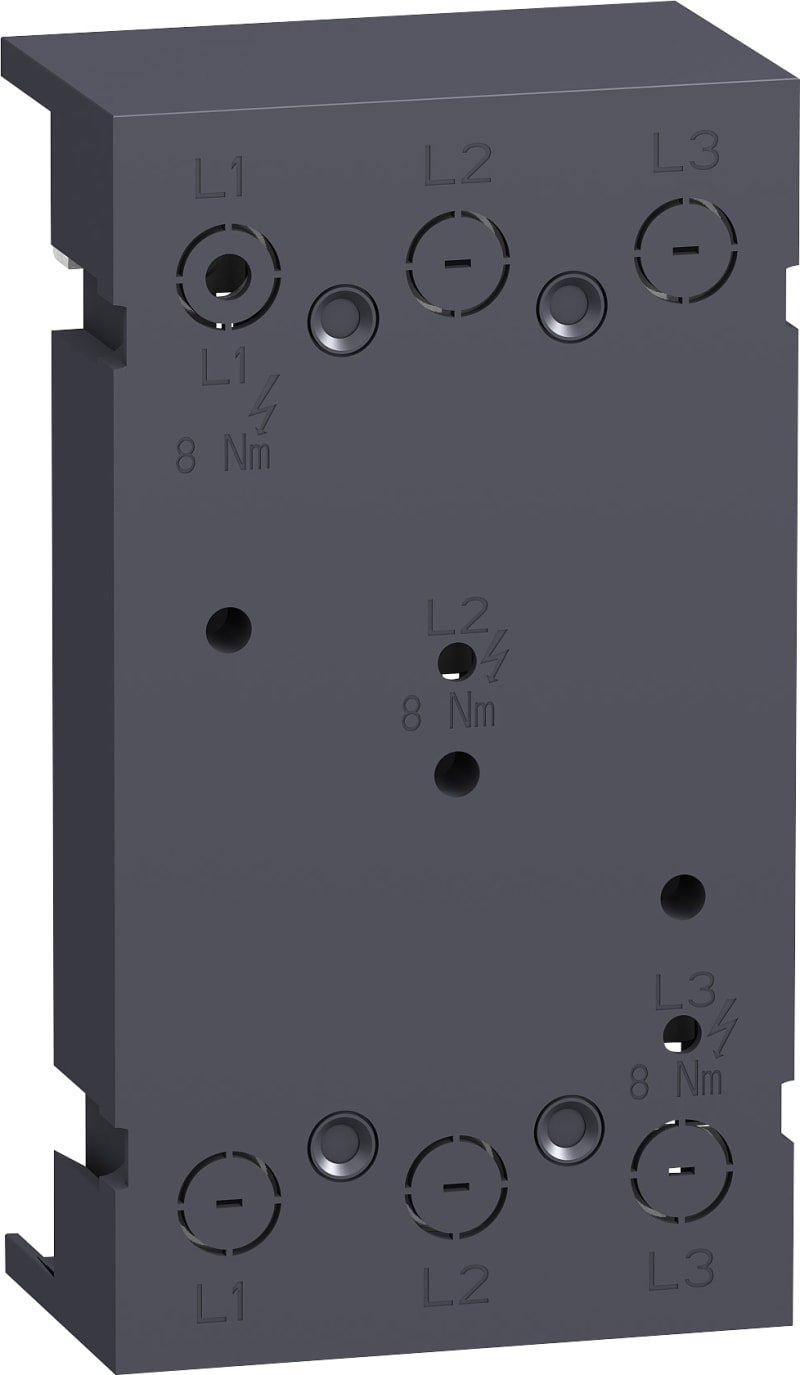

Rail adapter NSX100-250 3P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429372 Rail adapter NSX100-250 3P.
Technical Specifications
- Manufacturer part number (MPN)
- LV429372
- EAN / GTIN
- 3606480022463
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Number of poles
- 3P
- Range
- Linergy
- Product name
- Linergy BW
- Device short name
- LA9Z
- Product or component type
- Adaptors for busbar systems
- Number of ways
- 1 way
- Range compatibility
- PrismaSeT G; PrismaSeT P; PrismaSeT POLAR WHITE; PanelSeT; TeSys; ComPact
- Product compatibility
- GV7; PowerPact NJ; NSX100...250
- Poles description
- 3P
- Permissible current
- 200 A - busbar cross section: 12 x 5 mm; 250 A - busbar cross section: 15 x 5 mm; 250 A - busbar cross section: 20 x 5 mm; 250 A - busbar cross section: 25 x 5 mm; 250 A - busbar cross section: 30 x 5 mm; 250 A - busbar cross section: 12 x 10 mm; 250 A - busbar cross section: 20 x 10 mm; 250 A - busbar cross section: 30 x 10 mm
- [Ui] rated insulation voltage
- 690 V
- Busbar pitch
- 60 mm
- Width
- 104 mm
- Height
- 190 mm
- Depth
- 63 mm
- Colour
- Anthracite grey
- IP degree of protection
- IP20 conforming to IEC 60529
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 48
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting rail armament
- None
- Rated current In
- 250 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 104 mm
- Rail width
- 184 mm
- Busbar distance
- 60 mm
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480022463
- SAP 1000419946
- Code 8983768
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric BMXNOM0200 Serial link module with 2 RS-485/232 ports in Modbus and Character mode
Schneider Electric
Doorstopper (NSYAEDRS3DPA6)
Schneider Electric
Schneider Electric KSB100SM412 TAP OFF UNIT 100A 12 MODULES
Schneider Electric
Schneider Electric PC box IP66 IK08 RAL7035 INT.H225W175D120 EXT.H241W194D127 Transparent cover H40 NSYTBP241912HT
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 110V AC 50/60Hz coil, screw clamp terminals LC1D18F7
Schneider Electric
Selector switch with LIGHT 2ST.RED LED (ZB4BK1243)
Schneider Electric
Schneider Electric ABS box IP66 IK07 RAL7035 INT.H275W225D120 EXT.H291W241D128 Opaque cover H60 NSYTBS292412H
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 38A, 24V DC coil, screw clamp terminals LC1D38BD
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV429372?
- LV429372 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV429372.
- What is the HS code for LV429372?
- The customs tariff (HS) code for LV429372 is 7326.90.
- Who manufactures LV429372?
- LV429372 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV429372?
- Yes — the LV429372 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV429372?
- The minimum order quantity is 1.
- Is LV429372 available?
- Yes — LV429372 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
