Vigi iC60 4P 63A 30mA Type A
Pricing
Request a quote
We reply within 24 hours
Product Description

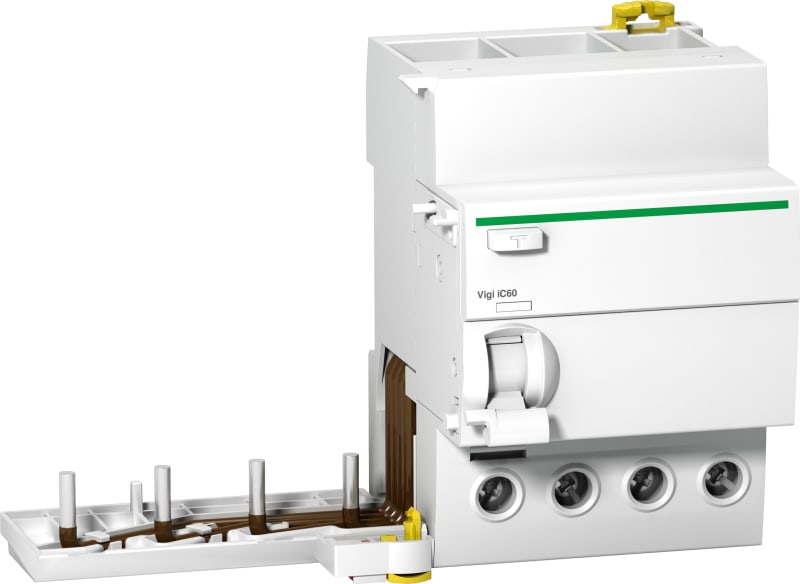

Schneider Electric A9W21463 Acti9 Vigi iC60 residual current device module, Type A, for mounting on the right-hand side of miniature circuit breakers in the iC60 series, rated up to 63 A.
Technical Specifications
- Manufacturer part number (MPN)
- A9W21463
- EAN / GTIN
- 3606480443565
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 17 pcs
- Rated current
- 63 A
- Number of poles
- 4P
- Range
- Acti9
- Product name
- Acti9 Vigi iC60
- Product or component type
- Add-on residual current device
- Device short name
- Vigi iC60
- Poles description
- 4P
- [In] rated current
- 63 A
- Earth-leakage sensitivity
- 30 mA
- Earth-leakage protection time delay
- Instantaneous
- Earth leakage protection type
- Type A
- Network type
- AC
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 400/415 V AC 50/60 Hz conforming to IEC 61009-1; 400/415 V AC 50/60 Hz conforming to EN 61009-1
- Standards
- IEC 61009-1; EN 61009-1
- 9 mm pitches
- 7
- Device location in system
- Outgoer
- Residual current tripping technology
- Voltage independent
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- Range compatibility
- Acti9 iC60
- Product compatibility
- Double terminal
- Lo
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480443565
- SAP 1000343904
- Code 81111008
