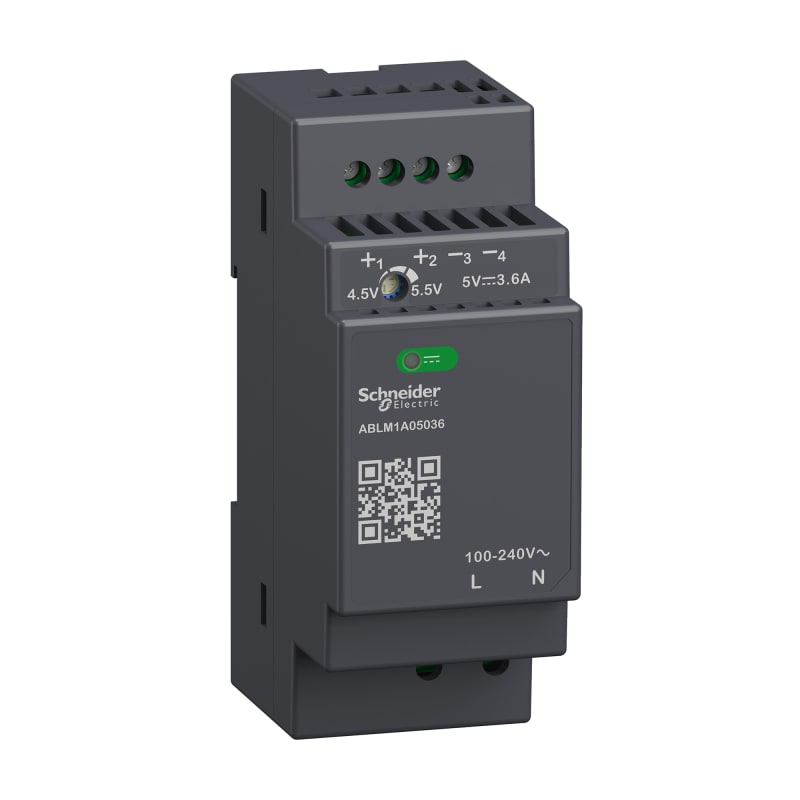

Schneider Electric Regulated Power Supply, 100-240V AC, 5V 3.6 A, single phase, Modular ABLM1A05036

Schneider Electric ABLM1A05036 — Regulated Power Supply, 100-240V AC, 5V 3.6 A, single phase, Modular.

Manufacturer part number (MPN)

ABLM1A05036

EAN / GTIN

3606481500137

Sales unit

pcs

Package quantity

29 pcs

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Variant option

Modular

Enclosure material

Plastic

Nominal input voltage

100...240 V AC single phase; 100...240 V AC phase to phase

Rated power in W

18 W

Output voltage

5 V DC

Power supply output current

3.6 A

Input voltage limits

90...264 V AC

Nominal network frequency

50…60 Hz

Network system compatibility

TN; TT; IT

Maximum leakage current

0.25 mA 240 V AC

Input protection type

Integrated fuse (not interchangeable) 3.15 A; External protection (recommended) 20 A Curve B; External protection (recommended) 20 A Curve C; External protection (recommended) 4 A Curve B; External protection (recommended) 4 A Curve C

Inrush current

25 A at 115 V; 50 A at 230 V

Power factor

0.48 at 115 V AC; 0.38 at 230 V AC

Efficiency

80 % at 115 V AC; 80 % at 230 V AC

Output voltage adjustment

4.5...5.5 V

Power dissipation in W

4.5 W

Current consumption

< 0.6 A 115 V AC; < 0.4 A 230 V AC

Turn-on time

< 2 s

Holding time

> 20 ms 115 V AC; > 60 ms 230 V AC

Startup with capacitive loads

3000 µF

Residual ripple

< 100 mV

Meantime between failure [MTBF]

2500000 h at 25 °C, full load; 1000000 h at 55 °C, 80 % load

Output protection type

Against overload and short-circuits, protection technology: automatic reset; Against over temperature, protection technology: manual reset; Against overvoltage, protection technology: manual reset

Connections - terminals

Screw connection: 0.5...1.5 mm², (20 AWG...16 AWG) without wire end ferrule for input/output; Screw connection: 0.5...1 mm², (20 AWG...18 AWG) with wire end ferrule for input/output

Line and load regulation

< 0.5 % at in line; < 1 % at 0 to 100 % load

Status LED

1 LED (green) output voltage

Depth

55.6 mm

Height

91 mm

Width

36 mm

Product weight

0.170 kg

Output coupling

Serial

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; Double-profile DIN rail; panel mounting

Supply

SELV conforming to IEC 60950-1; SELV conforming to IEC 60204-1; SELV conforming to IEC 60364-4-41

Dielectric strength

3000 V AC input/output

Service life

10 year(s)

Overvoltage category

II

Standards

IEC 62368-1; EN/IEC 61010-1; EN 61010-2-201; EN/IEC 61204-3; IEC 61000-6-1; IEC 61000-6-2; IEC 61000-6-3; IEC 61000-6-4; IEC 61000-3-2; EN 61000-3-3; UL 62368-1; UL 61010-1; UL 61010-2-201; CSA C22.2 No 62368-1; CSA C22.2 No 61010-1; CSA C22.2 No 61010-2-201

Product certifications

CE; CUL listed; CUL recognized; RCM; CB Scheme; EAC; KC; NEC: class 2

Operating altitude

< 2000 m overvoltage category III; 2000 m...5000 m overvoltage category II

Shock resistance

150 m/s² for 11 ms

IP degree of protection

IP20

Ambient air temperature for operation

-25…55 °C without current derating mounting position A < 2000 m; 55…70 °C with current derating of 2.67 % per °C mounting position A < 2000 m

Electrical shock protection class

Class II without PE connection

Pollution degree

2

Vibration resistance

3 mm (f= 2…9 Hz) conforming to IEC 60721-3-3; 10 m/s² (f= 9…200 Hz) conforming to IEC 60721-3-3

Electromagnetic immunity

Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2; Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2; Electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3; Immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4; Surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5; Surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5; Immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6; Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8; Immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11; Immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11; Disturbing field emission conforming to EN 55016-2-3; Limits for harmonic current emissions conforming to IEC 61000-3-2; conforming to EN 55016-1-2; conforming to EN 55016-2-1

Electromagnetic emission

Conducted emissions conforming to IEC 61000-6-3; Radiated emissions conforming to IEC 61000-6-4

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

6.000 cm

Package 1 Length

11.000 cm

Package 1 Weight

173.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

29

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.317 kg

Country of origin

TH

Warranty (in months)

18

Voltage type (supply voltage)

AC

Max. output current 1

3.6 A

Nominal value output voltage 1

5 V

Nominal value output current 1

3.6 A

Power output

18 W

Type of electric connection

Screw connection

Wall mounting possible

No

Built-in width

36 mm

Built-in height

91 mm

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Degree of protection (IP)

IP20

HS Code

8504.40

• EAN 3606481500137
• SAP 1200460350
• Code 82519439
