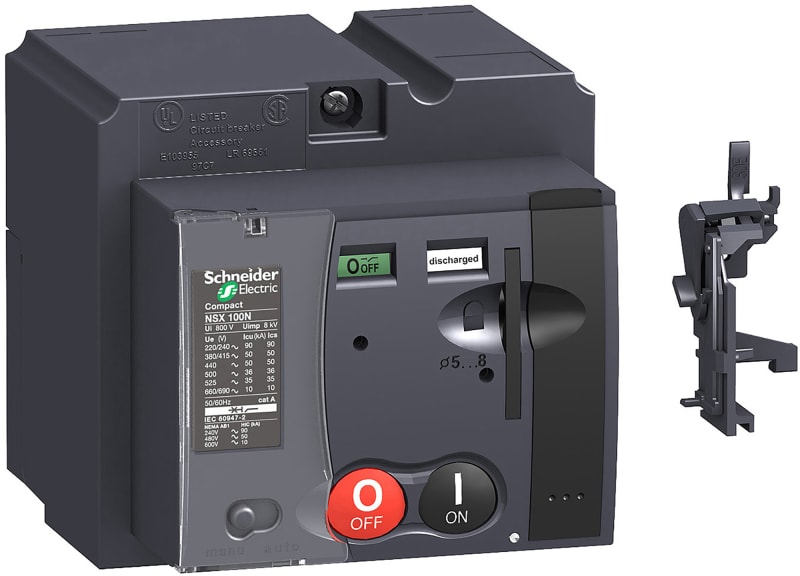

Schneider Electric standard motor mechanism module MT100/160, ComPact NSX100/160, 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz LV429434
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429434 Motor mechanism 220-240VAC NSX100/160.
Technical Specifications
- Manufacturer part number (MPN)
- LV429434
- EAN / GTIN
- 3606480020001
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Voltage
- 220-240 V AC
- Device short name
- MT250
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX100; ComPacT NSX160; ComPacT NSX100 DC; ComPacT NSX160 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 208...277 V AC 60 Hz; 220...240 V AC 50/60 Hz
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 160 A; 100 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in VA
- 500 VA closing; 500 VA opening
- Provided equipment
- SDE adaptor
- Locking options description
- Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Country of origin
- IT
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 220–240 V
- Rated control supply voltage AC 60 Hz
- 208–277 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480020001
- SAP 1000092318
- Code 8906423
Product Documentation
More from Schneider Electric
Schneider Electric
PUSH-Button BLUE 1NO (XB4BA61)
Schneider Electric
Schneider Electric Trip unit MicroLogic 5.2E, ComPacT NSX160/250, 4 poles, electronic basic protections, energy meter, 160A rating C1645E160
Schneider Electric
Standard bend Plastic 25mm
IMT36062
Schneider Electric
DIN rail PrismaSeT G B850MM
LVS03006
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals GV2P20
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 225A, standard version, 100…250V wide band AC/DC coil LC1G225KUEN
Schneider Electric
Schneider Electric TeSys GV2 & GV3 - auxiliary contact - 1 NO/NC GVAE1
Schneider Electric
Schneider Electric LV429219 — Aluminium Bare Cable Connector, ComPacT NSX / EasyPact CVS, 2 cables 50–120 mm², 250 A (set of 4)
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV429434?
- LV429434 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV429434.
- What is the HS code for LV429434?
- The customs tariff (HS) code for LV429434 is 8501.20.
- Who manufactures LV429434?
- LV429434 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV429434?
- Yes — the LV429434 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV429434?
- The minimum order quantity is 1.
- Is LV429434 available?
- Yes — LV429434 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
