Schneider Electric

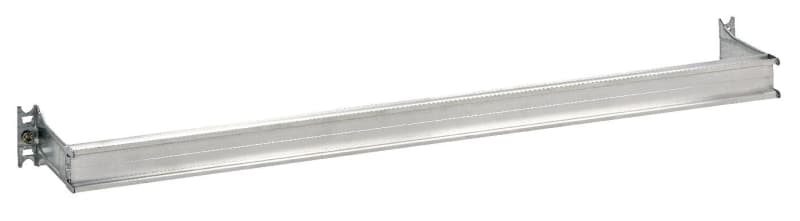

DIN rail PrismaSeT G B850MM
Part numberLVS03006EAN / GTIN3606481875457HS code7326.90
Electrical Components
DIN Rail Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03006 — W850 MODULAR DEVICE RAIL PRISMA G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03006
- EAN / GTIN
- 3606481875457
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Rail
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G
- Type of rail
- Modular
- Installed device
- Acti 9: fixed iC120 without earth leakage protection - control: toggle; ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; ComPact: fixed INS40 - control: direct front rotary handle - vertical installation; ComPact: fixed INS63 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device; Multi9: fixed modular device; Multi9: fixed NG125 without earth leakage protection - control: toggle; Acti 9: fixed iC120 with earth leakage protection - control: toggle; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A; Multi9: fixed NG125 with earth leakage protection
- Poles description
- 24 x 1P: fixed iC120; 12 x 2P: fixed iC120; 8 x 3P: fixed iC120; 6 x 4P: fixed iC120; 4 x 3P: fixed INS100 vertical installation; 4 x 4P: fixed INS100 vertical installation; 4 x 3P: fixed INS125 vertical installation; 4 x 4P: fixed INS125 vertical installation; 4 x 3P: fixed INS160 vertical installation; 4 x 4P: fixed INS160 vertical installation; 4 x 3P: fixed INS40 vertical installation; 4 x 4P: fixed INS40 vertical installation; 4 x 3P: fixed INS63 vertical installation; 4 x 4P: fixed INS63 vertical installation; 12 x 2P: fixed NG125; 8 x 3P: fixed NG125; 6 x 4P: fixed NG125; 5 x 2P: fixed iC120; 3 x 3P: fixed iC120; 3 x 4P: fixed iC120; 6 x 2P: fixed NG125; 4 x 3P: fixed NG125; 3 x 4P: fixed NG125
- installation description
- Floor-standing enclosure - width 850 mm
- Number of vertical modules [50 mm]
- 5 module(s): iC120 without earth leakage protection , direct in 850 mm Widefloor-standing enclosure; 4 module(s): INS100, direct in 850 mm Widefloor-standing enclosure; 5 module(s): INS100, direct in 850 mm Widefloor-standing enclosure; 4 module(s): INS125, direct in 850 mm Widefloor-standing enclosure; 5 module(s): INS125, direct in 850 mm Widefloor-standing enclosure; 4 module(s): INS160, direct in 850 mm Widefloor-standing enclosure; 5 module(s): INS160, direct in 850 mm Widefloor-standing enclosure; 4 module(s): INS40, direct in 850 mm Widefloor-standing enclosure; 4 module(s): INS63, direct in 850 mm Widefloor-standing enclosure; 3 module(s): modular device <= 40 A, direct in 850 mm Widefloor-standing enclosure; 4 module(s): modular device, direct in 850 mm Widefloor-standing enclosure; 5 module(s): NG125 without earth leakage protection , direct in 850 mm Widefloor-standing enclosure; 5 module(s): iC120 with earth leakage protection , direct in 850 mm Widefloor-standing enclosure; 5 module(s): NG125 with earth leakage protection , direct in 850 mm Widefloor-standing enclosure
- 9 mm pitches
- 72
- Quantity per set
- Set of 1
- Height
- 50 mm
- Width
- 488 mm
- Depth
- 102 mm
- Product weight
- 0.3 kg
- Colour
- Natural
- Material
- Metal
- thickness
- 1.5 mm
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.500 cm
- Package 1 Width
- 5.300 cm
- Package 1 Length
- 69.900 cm
- Package 1 Weight
- 298.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 8
- Package 2 Height
- 19.000 cm
- Package 2 Width
- 13.000 cm
- Package 2 Length
- 73.500 cm
- Package 2 Weight
- 2.658 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 240
- Package 3 Height
- 78.800 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 91.740 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Surface protection
- Anodised
- Material thickness
- 1.5 mm
- Length
- 662 mm
- Punch shape
- None
- Drill hole distance centrically
- 93.5 mm
- Surface finishing
- Anodised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481875457
- SAP 1200546864
- Code 82880205
