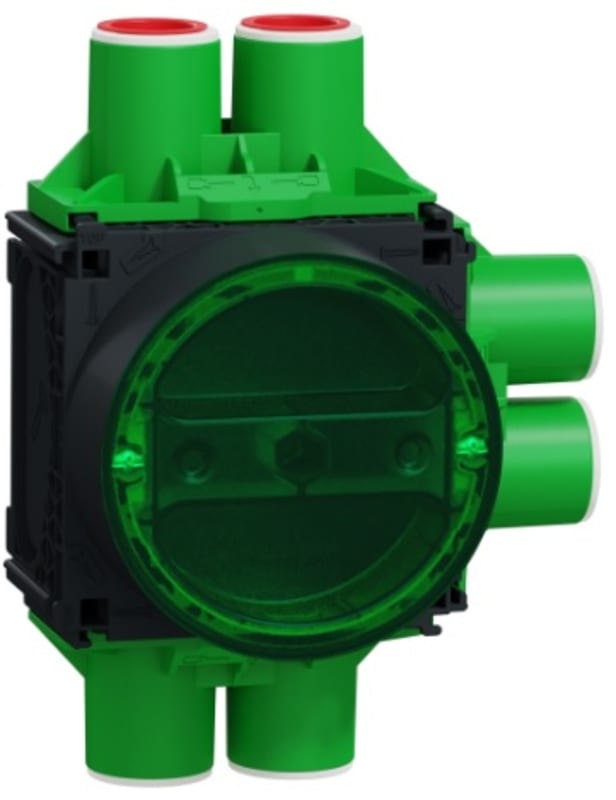

Wall box 1M 24-39 mm 6-Pipe
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT80275 Multifix wall box single 24-39mm plate thickness supplied with 6 pipe entries WITHOUT stud bracket.
Technical Specifications
- Manufacturer part number (MPN)
- IMT80275
- EAN / GTIN
- 3606481455796
- Sales unit
- pcs
- Package quantity
- 35 pcs
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Device connection box (round/square)
- Model
- Single
- Provided with revolving ring
- Yes
- Couplable
- Yes
- Diameter
- 73 mm
- Length
- 133 mm
- Width
- 71 mm
- Depth
- 69 mm
- Inner depth
- 67 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screw or spread out
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 16/20 mm
- Pipe locking
- Yes
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 6
- Number of included spouts
- 6
- Material
- Plastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP30
- Cover model
- Suitable for snap-in connector (manufacturer specific)
- Transparent cover
- No
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- No
- Special application
- None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606481455796
- SAP 1200539565
- Code 82826142
