Schneider Electric

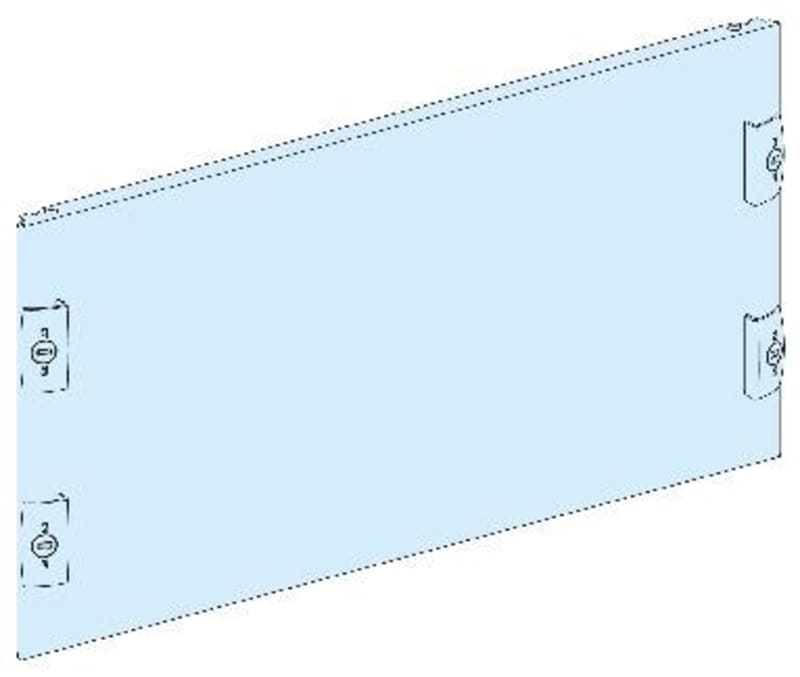

Sealed Front plate 6MODULES PrismaSeT G/P
Part numberLVS03806EAN / GTIN3606481873859HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03806 — PLAIN FRONT PLATE W600/W650 6M.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03806
- EAN / GTIN
- 3606481873859
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Plain
- Installed device
- Power meters: kilowatt-hour meters - vertical installation; connection; Altistart: ATS01N
- Poles description
- 3 x 2P: mounting plate support: kilowatt-hour meters vertical installation; 2 x 4P: mounting plate support: kilowatt-hour meters vertical installation
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm
- Number of vertical modules [50 mm]
- 6
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 300 mm
- Product weight
- 1.22 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure power meters kilowatt-hour meters vertical 2P 3 6; 600 mm PrismaSeT G wall-mounted enclosure power meters kilowatt-hour meters vertical 2P 3 6; 600 mm PrismaSeT G floor-standing enclosure connection 2 6; 600 mm PrismaSeT G wall-mounted enclosure connection 2 6; 650 mm 400 mm PrismaSeT P cubicle connection 2 6; 600 mm PrismaSeT G floor-standing enclosure power meters kilowatt-hour meters vertical 4P 2 6; 600 mm PrismaSeT G wall-mounted enclosure power meters kilowatt-hour meters vertical 4P 2 6; 650 mm 400 mm PrismaSeT P cubicle power meters kilowatt-hour meters vertical 2P 3 6; 650 mm 400 mm PrismaSeT P cubicle power meters kilowatt-hour meters vertical 4P 2 6; 600 mm PrismaSeT G floor-standing enclosure Altistart ATS01N 9 6; 600 mm PrismaSeT G wall-mounted enclosure Altistart ATS01N 9 6; 600 mm PrismaSeT G floor-standing enclosure Altistart ATS01N 2 6; 600 mm PrismaSeT G wall-mounted enclosure Altistart ATS01N 2 6; 650 mm 400 mm PrismaSeT P cubicle Altistart ATS01N 9 6; 650 mm 400 mm PrismaSeT P cubicle Altistart ATS01N 2 6
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 30.500 cm
- Package 1 Length
- 51.200 cm
- Package 1 Weight
- 1.298 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 9
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 12.370 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 108
- Package 3 Height
- 102.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 151.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of height units
- 6
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481873859
- SAP 1200546746
- Code 82879466
Product Documentation
Document preview: Schneider Electric LVS03806 — OEM Product Page
