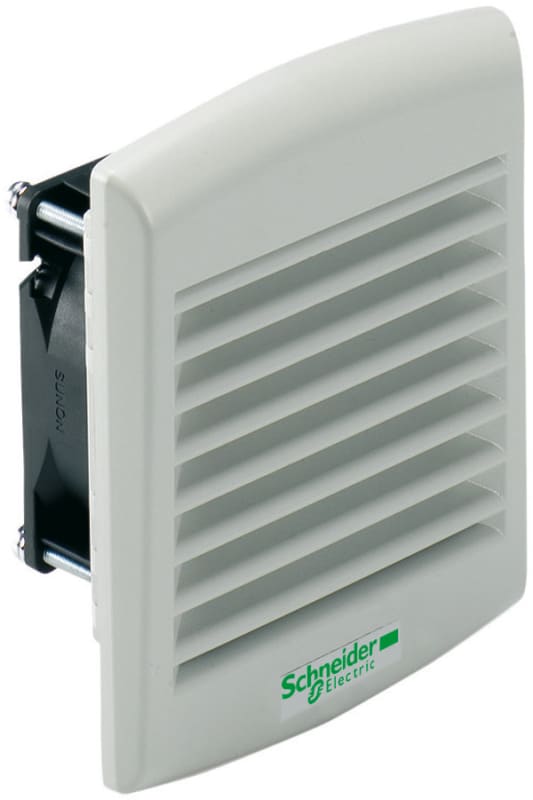

Schneider Electric ClimaSys forced vent. IP54, 38M3/h, 230V, with outlet grille and filter G2 NSYCVF38M230PF

Schneider Electric NSYCVF38M230PF fan38M3/H 230V IP54, ClimaSys.

Manufacturer part number (MPN)

NSYCVF38M230PF EAN / GTIN: 3606480151163 Sales unit: pcs Package quantity: 34 pcs Voltage: 230 V IP rating: IP54 Range: ClimaSys Product name: ClimaSys CV Product or component type: Fan Type of filter: Standard Flow rate: Free flow rate with standard filter: 38 m3/h at 50 Hz; Free flow rate with standard filter: 39 m3/h at 60 Hz [Us] rated supply voltage: 150...250 V Input voltage: 230 V 50/60 Hz Absorbed power: 4.5 W 50 Hz; 4.8 W 60 Hz [In] rated current: 0.16 A 50 Hz; 0.17 A 60 Hz Noise level < at: 40…41 dB Bearing type: Ball Height: External: 137 mm Width: External: 117 mm Depth: External : 49 mm Cut-out dimensions: 92 x 92 mm Product weight: 0.22 kg material: Outlet grille: injected thermoplastic (ASA PC) Colour: Outlet grille: grey (RAL 7035) Ambient air temperature for operation: -10…70 °C Ambient air temperature for storage: -40…70 °C Maximum pressure: 29 Pa flow rate 0 m³/h Connections - terminals: Cable IP degree of protection: IP54 Device composition: 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 outlet grille: front; 1 cut-out template Condition of use: Outside temperature must be 5 °C lower than inside temperature; Flow rates depends on the work point, see ProClima software; Surrounding environment must be relatively clean; Filter must be cleaned and replaced regularly; Overfrequent filter replacement should be avoided Country of origin: FR Warranty (in months): 18 Mounting method: Snap mounting RAL-number: 7035 Voltage type: AC Suitable for 19 inch rack mounting: No Number of fans: 1 EMC-version: No Degree of protection (IP): IP54 With protective cover: Yes With filter: Yes Rated power: 4.5 W Roof ventilator: No Built as slide-in ventilator: Yes Volume flow, freeblowing: 38 m³/h Air circulator: Yes Suitable for wall built-in: No Noise emission: 41 dB(A) Operating voltage AC 50 Hz: 230 V Operating voltage AC 60 Hz: 230 V

HS Code

8414.59

• EAN 3606480151163
• SAP 1000089059
• Code 8881760
