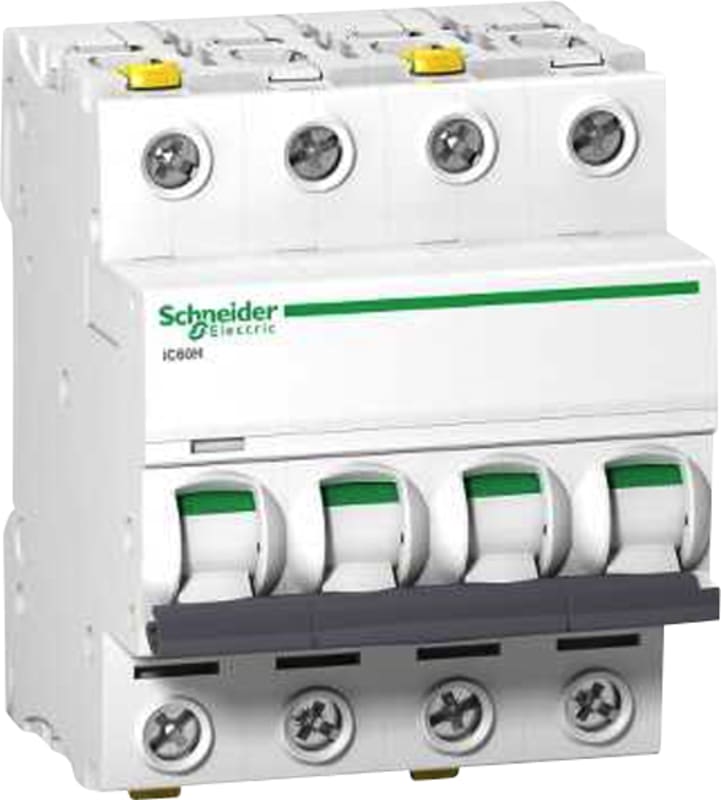

Schneider Electric A9F08416 ACTI9 IC60H Miniature Circuit Breaker 4P 16 A, Curve D

Schneider Electric A9F08416 is an Acti9 iC60H miniature circuit breaker (MCB), 4P, rated 16 A with a type D tripping curve. It provides overload and short-circuit protection for final and sub-distribution circuits on 35 mm DIN rail. The type D magnetic release operates at 12 x In (±20%), suited to high-inrush loads such as transformers and motors. Rated breaking capacity Icn 10 000 A per IEC/EN 60898-1 and Icu 15 kA per IEC/EN 60947-2 at 400 V. Rated voltage Ue 230/400 V AC, rated insulation voltage Ui 500 V, rated impulse withstand Uimp 6 kV. Multi-standard to IEC/EN 60898-1 and IEC/EN 60947-2.

Manufacturer part number (MPN)

A9F08416

EAN / GTIN

3606480439551

Product type

Acti9 iC60H miniature circuit breaker (MCB)

Poles

4P

Rated current In

16 A

Tripping curve

type D (magnetic trip 12 x In (±20%))

Rated operational voltage Ue

230/400 V AC, 50/60 Hz

Rated breaking capacity Icn

10 000 A (IEC/EN 60898-1); Icu 15 kA (IEC/EN 60947-2, 400 V)

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6 kV

Endurance

20 000 mechanical / 10 000 electrical operations

Degree of protection

IP20 (terminals); IP40 in modular enclosure

Operating temperature

-25 °C to +70 °C

Mounting

35 mm DIN rail (clip-on)

Conforms to

IEC/EN 60898-1, IEC/EN 60947-2

HS code

8536.90

Sales unit

pcs

Package quantity

3 pcs

Standard

IEC/EN 60898-1

HS Code

8536.90

• EAN 3606480439551
• SAP 1000343429
• Code 81003527
