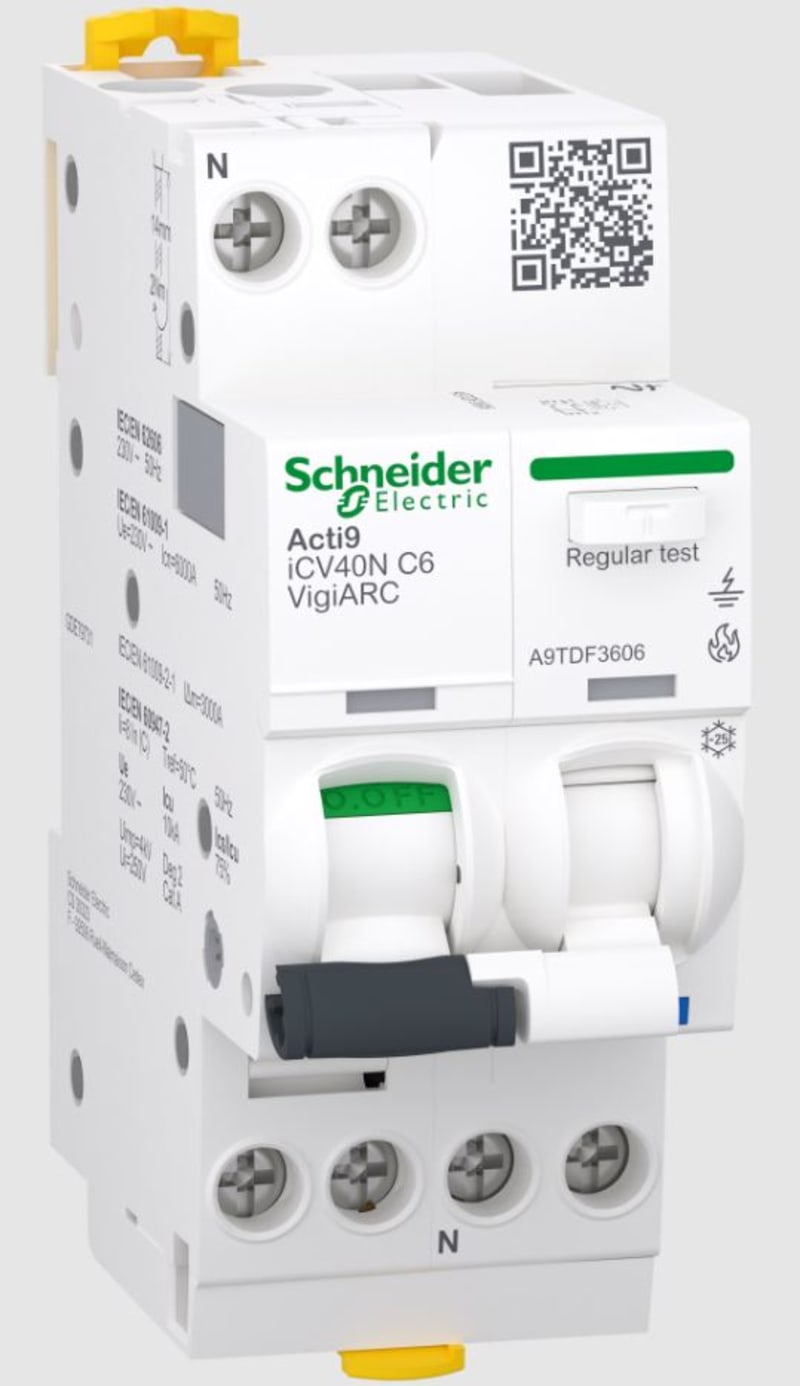

Schneider Electric Arc fault detection RCBO, ACTI9 ICV40N ARC, 1P+N, 6A, C curve, 30MA, type A-SI, 6000A A9TDF3606

Schneider Electric A9TDF3606 Acti 9 Active - Residual current circuit breaker with overcurrent - 1pol + N - 6A C - 30mA A-SI type.

Manufacturer part number (MPN)

A9TDF3606

EAN / GTIN

3606481906564

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Rated current

6 A

Range

Acti9

Product name

Acti9 iCV40 ARC

Product or component type

Arc fault detection RCBO

Device short name

iCV40N ARC

Product specific application

Arc fault detection

Standards

EN/IEC 62606; EN/IEC 61009-1; EN/IEC 60947-2; EN/IEC 61009-2-1

Poles description

1P + N

Number of protected poles

1

Curve code

C

Breaking capacity code

N

Breaking capacity

6000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1; 10 kA Icu at 230 V AC 50 Hz conforming to EN/IEC 60947-2

Rated breaking and making capacity

Idm 3000 A at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1

Neutral position

Left

Network type

AC

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A-SI (Super Immunised)

Electrical data recording

Date and time; Maintenance indicators

Suitability for isolation

Yes

Residual current tripping technology

Voltage independent

Trip unit technology

Thermal-magnetic

Earth-leakage protection

Integrated

[In] rated current

6 A

Network frequency

50 Hz

[Ue] rated operational voltage

230 V AC 50 Hz

Device location in system

Outgoer

Magnetic tripping limit

5...10 x In

[Ics] rated service breaking capacity

6000 A AC 50 Hz conforming to EN/IEC 61009-2-1; 7.5 kA AC 50 Hz conforming to EN/IEC 60947-2

Limitation class

3

[Ui] rated insulation voltage

250 V AC 50 Hz between phase and neutral

Threshold tripping voltage

275 V for +/- 5 V

[Uimp] rated impulse withstand voltage

4 kV

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON, OFF, fault trip; LED arc fault diagnostic

mounting mode

Clip-on

Mounting support

DIN rail

Colour

White (RAL 9003)

Mechanical durability

20000 cycles

Electrical durability

20000 cycles 230 V AC 50 Hz

Overvoltage category

III

Locking options description

Padlocking device

cable entry

Top and bottom

Connections - terminals

Tunnel type terminal 1…16 mm² rigid; Tunnel type terminal 1…10 mm² flexible

Wire stripping length

14 mm

Tightening torque

2 N.m

Comb busbar and distribution block compatibility

YES

9 mm pitches

4

Height

91 mm

Width

36 mm

Depth

73 mm

Product weight

220 g

Total power losses

3.027 W

Power losses per pole

2.91 W

Power losses on neutral

0.117 W

Earth-leakage sensitivity

30 mA

IP degree of protection

IP20 conforming to IEC 60529

Pollution degree

2 conforming to EN/IEC 62606

Tropicalisation

Severity B conforming to IEC 60068-2-30 for 28 d

Relative humidity

95 % at 55 °C

Operating altitude

2000 m

Ambient air temperature for operation

-25…50 °C

Ambient air temperature for storage

-40…80 °C

Quality labels

IMQ; AENOR; OVE

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481906564
• SAP 1200617801
• Code 83022928
