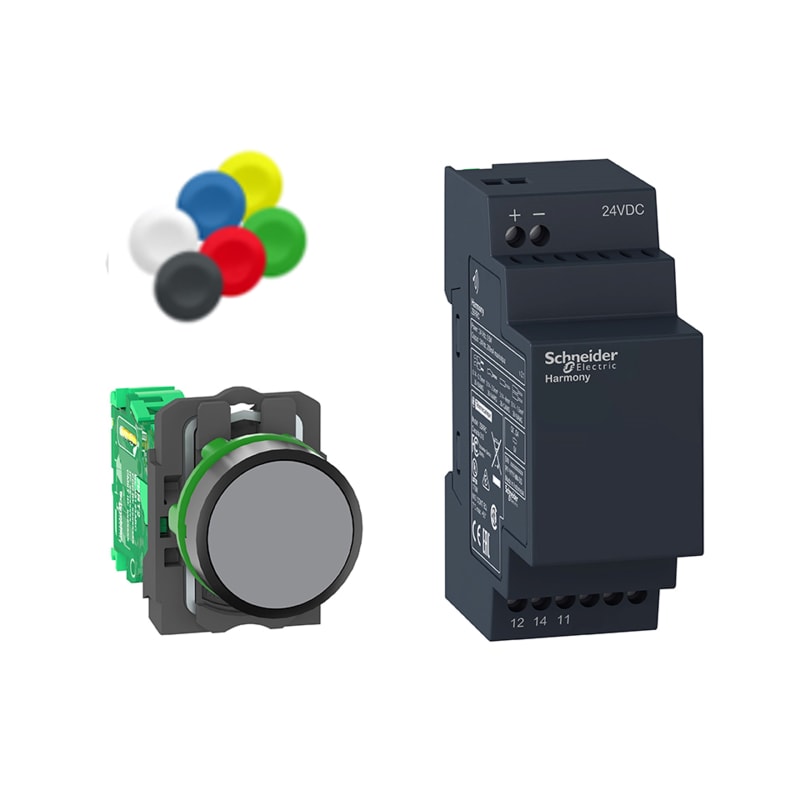

Wireless set button and receiver (XB5RFB01)

Schneider Electric XB5RFB01 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Wireless set with wireless push-button in plastic and parret receiver 1 C/O output and 24VDC supply.

Manufacturer part number (MPN)

XB5RFB01

EAN / GTIN

3606480334443

Sales unit

pcs

Package quantity

16 pcs

Range of product

Harmony XB5R

Product or component type

Wireless and batteryless package

Device short name

XB5R

Head material

Plastic

frequency

2405 MHz for transmitter; 2405 MHz for receiver

emission class

5M00G7W

Antenna type

Omnidirectional

Control type

Wireless and batteryless push-button Ø 22 mm assembled on fixing collar

Type of receiver

Non-programmable receiver (1 relay)

[Us] rated supply voltage

24 V DC

Kit composition

1 transmitter; 1 set of caps; 1 receiver; 1 fixing collars; 1 diameter: 22 mm; 1 push-button head diameter: 22 mm

Communication port protocol

Zigbee conforming to IEEE 802.15.4

Max power consumption in W

1 mW

Number of channels

1

Modulation Technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

Supply voltage

24 V

Product certifications

UL; C-Tick; GOST; CSA; CCC

Marking

CE

Standards

IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-1; UL 508

Radio agreement

SRRC; ICASA; RSS; ANATEL; FCC; ARIB T66

Number of Units in Package 1

1

Number of Units in Package 2

16

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Black

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Black

Degree of protection (IP)

IP65

Material front ring

Plastic

With front ring

Yes

Transparent

No

Construction type lens

Round

Supply voltage lamp

24 V

Switching function latching

No

Country of origin

France

HS Code

8537.10
