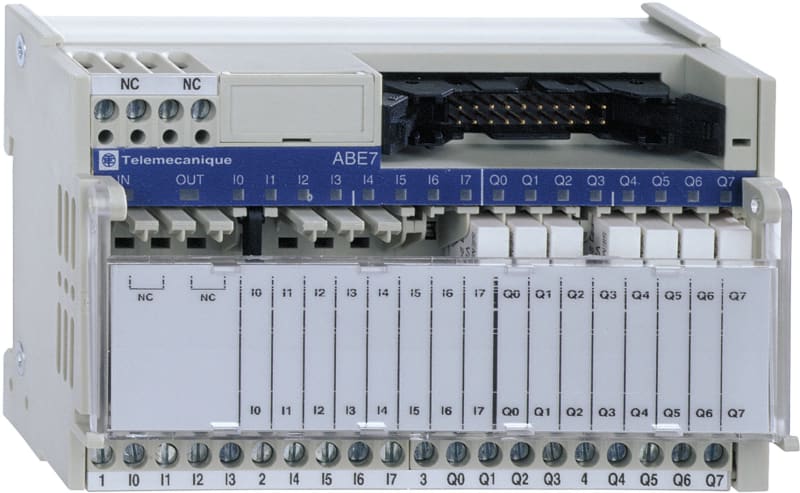

Schneider Electric Sub-base with plug-in electromechanical relay ABE7, 16 channels, relay 5 mm ABE7R16T111

Schneider Electric ABE7R16T111 Telefast passiv in-/output modules 16 o, 4 pr.gr, 1 n/o, relay 5mm, led.

Manufacturer part number (MPN)

ABE7R16T111

EAN / GTIN

3389110250800

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Range of product

Modicon ABE7

Product or component type

Sub-base with plug-in electromechanical relay

Sub-base type

Output sub-base

[Us] rated supply voltage

19...30 V conforming to IEC 61131-2

Number of channels

16

Connections - terminals

Screw type terminals, 1 x 0.14...1 x 1.5 mm² (26 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 1 x 0.14...1 x 4 mm² (26 AWG...12 AWG) solid; Screw type terminals, 2 x 0.14...2 x 0.75 mm² (26 AWG...18 AWG) flexible with cable end; Screw type terminals, 2 x 0.14...2 x 1.5 mm² (26 AWG...16 AWG) solid

supply voltage type

DC

Product compatibility

ABR7S11

Contacts type and composition

1 NO

Status LED

1 LED power ON; 1 LED per channel channel status

Polarity distribution

Common distribution group of 4

Short-circuit protection

1 A internal fuse, 5 x 20 mm, fast blow (PLC end)

Mounting mode

By clips (35 mm DIN rail); By screws (surface mount with kit)

Maximum supply current

1 A

Voltage drop on power supply fuse

0.3 V

Maximum current per output common

5 A screw type terminals

[Ui] rated insulation voltage

2000 V between terminals/mounting rails; 300 V between coil circuit/contact circuits conforming to IEC 60947-1

Maximum current per module

12 A

[Uimp] rated impulse withstand voltage

2.5 kV

Installation category

II conforming to IEC 60664-1

Tightening torque

0.6 N.m with flat Ø 3.5 mm screwdriver

Product weight

0.6 kg

Product certifications

CSA; UL; DNV; GL; EAC

IP degree of protection

IP2X conforming to IEC 60529

Resistance to incandescent wire

750 °C, extinction time <30 s conforming to IEC 60695-2-11

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

2 gn conforming to IEC 60068-2-6 (f = 10…150 Hz)

Resistance to electrostatic discharge

4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2

Resistance to radiated fields

10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3

Resistance to fast transients

2 kV level 3 conforming to IEC 61000-4-4

Ambient air temperature for operation

-5…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-40…80 °C conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664-1

Number of Units in Package 1

1

Number of Units in Package 2

24

Country of origin

LV

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110250800
• SAP 1000018052
• Code 8150573
