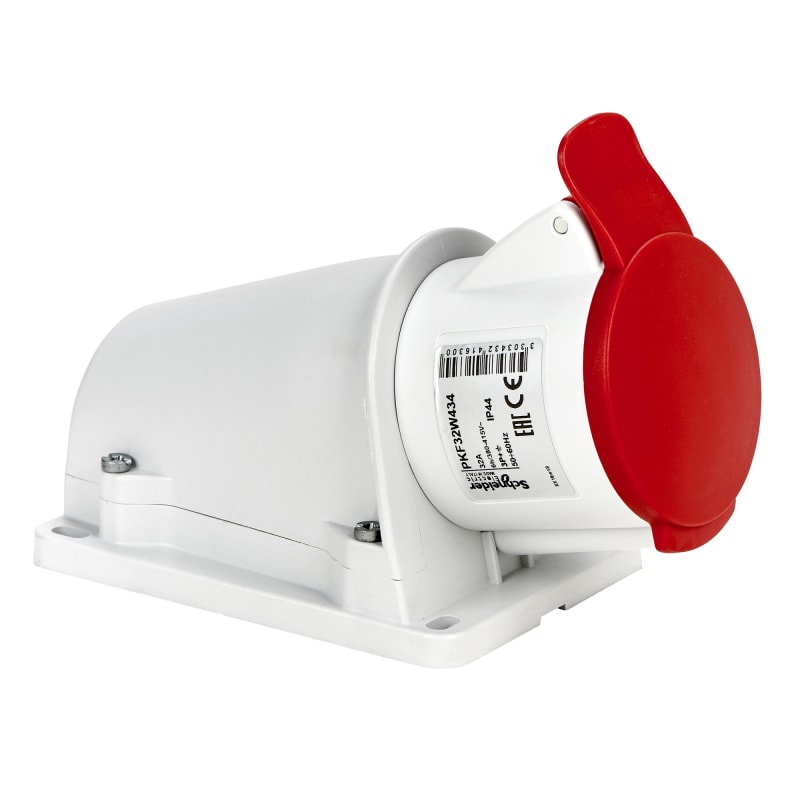

Schneider Electric Socket, Mureva PK, wall-mounted, angled, 32A, 3P+E, 400V, IP44 PKF32W434
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKF32W434 PratiKa socket outlet - screw - angled - 32A - 3P + E - 380.415 V AC - wall.
Technical Specifications
- Manufacturer part number (MPN)
- PKF32W434
- EAN / GTIN
- 3303432416300
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 400 V
- Rated current
- 32 A
- Range
- Mureva
- Product or component type
- Socket
- Device short name
- Mureva socket
- Plug, socket category
- Low voltage
- Poles description
- 3P + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Wall-mounted
- Plug, socket, control station shape
- Angled
- [In] rated current
- 32 A
- [Ue] rated operational voltage
- 380...415 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Captive screws
- Cable cross section
- 2.5…10 mm²
- Cable outer diameter
- 21 mm
- Thread type
- M25
- Product weight
- 0.3 kg
- Height
- 160 mm
- Width
- 90 mm
- Depth
- 119 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 750 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s ) ; -25…40 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432416300
- SAP 1200500536
- Code 82623549
Product Documentation
