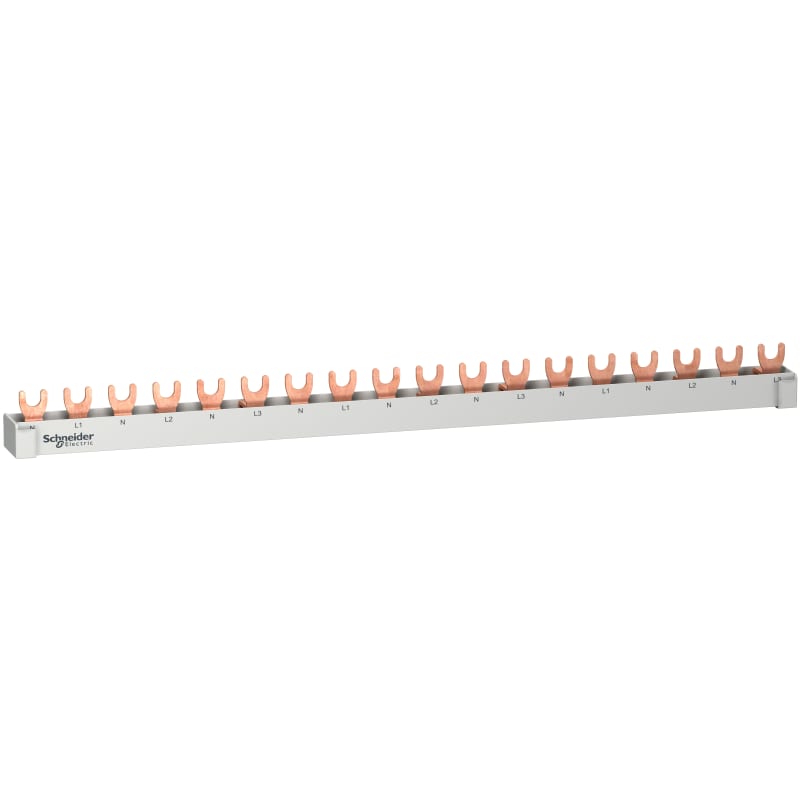

Schneider Electric RESI9 - comb busbar - 3L+N balanced - 18 mm pitch - 18 modules - 63 A R9XFH518
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric R9XFH518 Resi9 gaffel busbar for iC60 RCBO - 4 pole - NL1NL2NL3… - 63A - 18 modules.
Technical Specifications
- Manufacturer part number (MPN)
- R9XFH518
- EAN / GTIN
- 3606480515989
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range
- Resi9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 3L + N
- Length in 18 mm modules
- 18
- Standards
- EN/IEC 61439-1
- Product certifications
- CE
- Number of ways
- 9 ways N + L
- Distribution type
- N L
- Poles configuration for 1 way
- 1 x 1P + N; 1 x 2P
- Connection pitch
- 18 mm
- Connector type
- Fork
- Distance between way
- 36 mm
- Marking
- N L1 N L2 N L3
- Insulation
- Insulated
- Device presentation
- Cuttable
- [Ie] rated operational current
- 63 A at 40 °C
- [Ue] rated operational voltage
- 230 V AC Ph/N
- [Ui] rated insulation voltage
- 500 V AC
- Mounting location
- Bottom on biconnect
- 9 mm pitches
- 36
- Width
- 320 mm
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 K60; Resi9 miniature circuit-breaker; Resi9 residual current breaker with overcurrent protection (RCBO); Resi9 residual current circuit breaker (RCCB); Resi9 switch
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 30
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480515989
- SAP 1000758565
- Code 8509306
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider PrismaSeT P form 2 front barrier for vertical busbar 300 mm
LVS04920
Schneider Electric

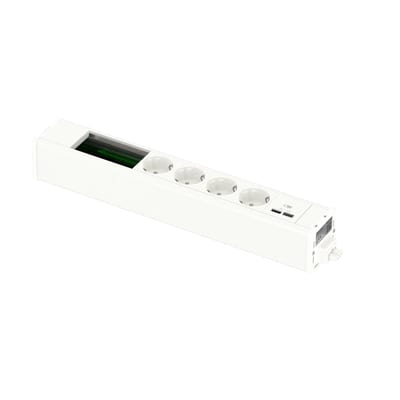

Module unit 4 kraft+multimedia (INS44256)
Schneider Electric

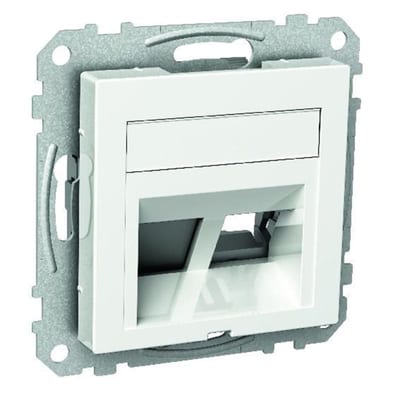

Exxact S-plate Lexcom angled, white
WDE002436
Schneider Electric

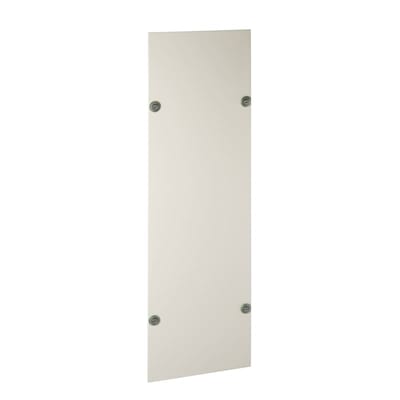

Backplate IP30 width 300mm PrismaSeT P
LVS08733
Schneider Electric

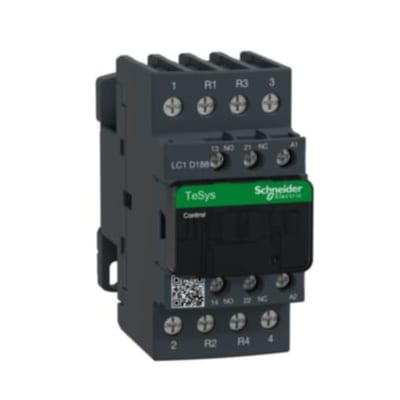

Schneider Electric Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 32A, 230V AC 50/60Hz coil, screw clamp terminal LC1D188P7
Schneider Electric

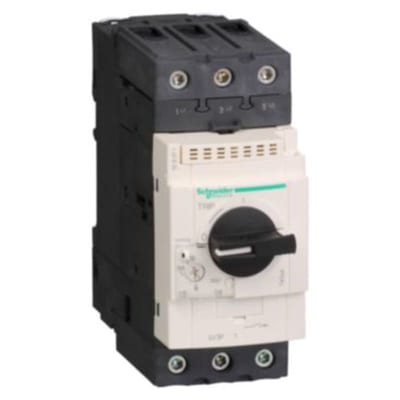

Schneider Electric Motor circuit breaker, TeSys GV3, 3P, 12-18 A, thermal magnetic, EverLink terminals GV3P18
Schneider Electric

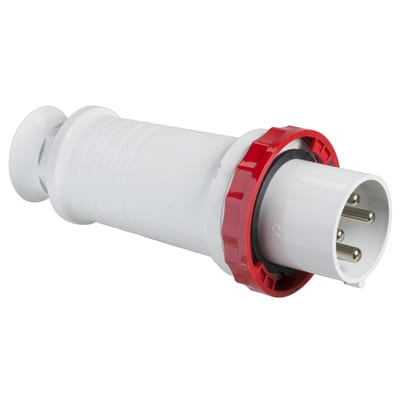

Plug 63A 3P+J 400V IP67
81382
Schneider Electric

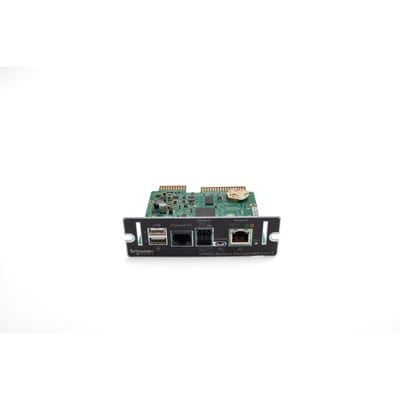

Schneider Electric Network Management Card 3 (NMC3) with Environmental Monitoring and Modbus, secure remote UPS monitoring and management AP9643
