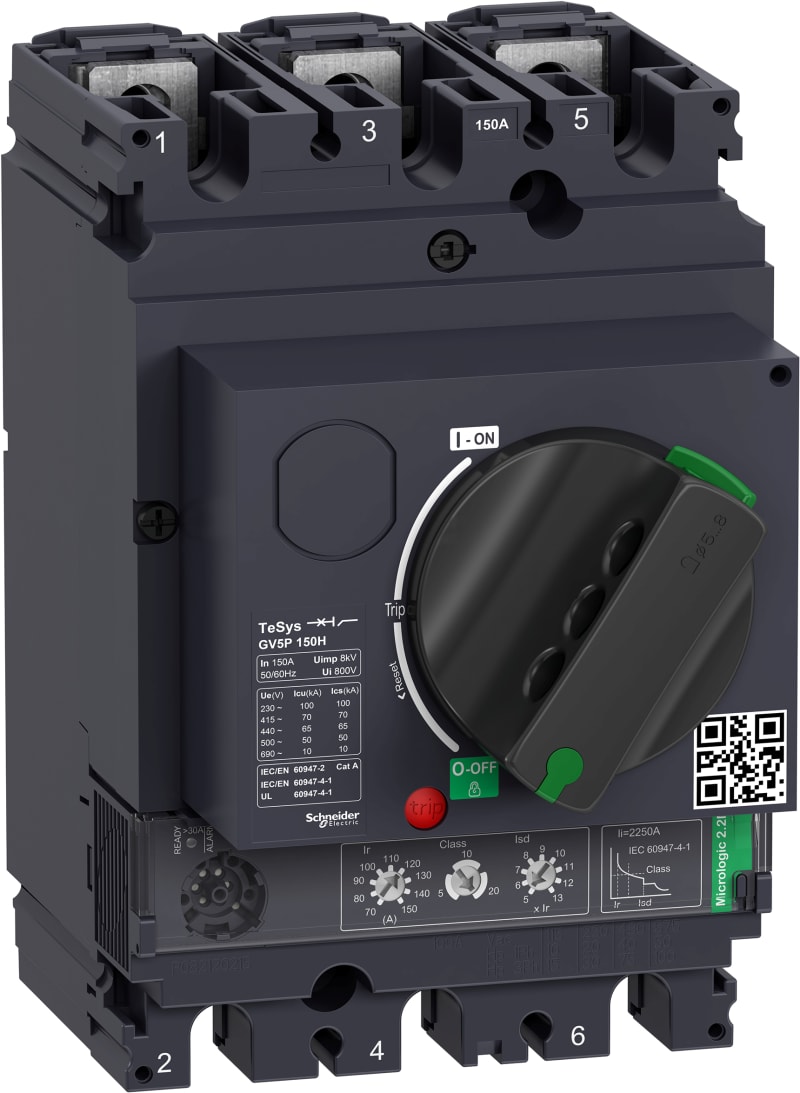

Schneider Electric Motor circuit breaker, TeSys GV5, 3P, 150A, Icu 70KA, thermal magnetic GV5P150H

Schneider Electric GV5P150H Motor protection circuit breaker TeSys GV5 Thermal-magnetic, 3P, 150A, Icu 70kA Micrologic 2,2M.

Manufacturer part number (MPN)

GV5P150H

EAN / GTIN

3606489915414

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Breaking capacity

70 kA

Range

TeSys

Range of product

TeSys GV5

Device short name

GV5P

Product name

TeSys GV5; TeSys Giga

Product or component type

Motor circuit breaker

Device application

Motor protection

Trip unit technology

Electronic

Poles description

3P

Utilisation category

Category A conforming to IEC 60947-2

Motor power kW

55…75 kW at 400/415 V AC 50/60 Hz; 75…90 kW at 500 V AC 50/60 Hz; 90…110 kW at 660/690 V AC 50/60 Hz

[Ics] rated service short-circuit breaking capacity

100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Control type

Direct rotary handle

[In] rated current

150 A at 65 °C

Magnetic tripping current

2250 A

Rated conditional short-circuit current

60 kA at 440 V

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Ui] rated insulation voltage

800 V AC 50/60 Hz conforming to IEC 60947-2

[Ith] conventional free air thermal current

150 A conforming to IEC 60947-4-1

[Uimp] rated impulse withstand voltage

8 kV

Power dissipation per pole

9.2 W

Mechanical durability

40000 cycles

Electrical durability

5000 cycles for AC-3 at 415 V opening; 5000 cycles for AC-3 at 415 V closing

maximum operating rate

25 cyc/h

Rated duty

Continuous

Connection pitch

35 mm without spreaders

Connections - terminals

Bars; Lugs

Tightening torque

15 N.m M8 screw type

Mechanical robustness

Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6; Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6

Phase failure sensitivity

Yes conforming to IEC 60947-4-1

Height

161 mm

Width

105 mm

Depth

155 mm

Product weight

2.4 kg

Colour

Anthracite (RAL 7016)

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Standards

EN/IEC 60947-1; EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Product certifications

IECEE CB Scheme; EAC (pending)

Climatic withstand

conforming to IACS E10

IK degree of protection

IK07 conforming to IEC 62262

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for storage

-50…85 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Operating altitude

5000 m

Ambient air temperature for operation

-25…70 °C

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3606489915414
• SAP 1200290621
• Code 82261649
