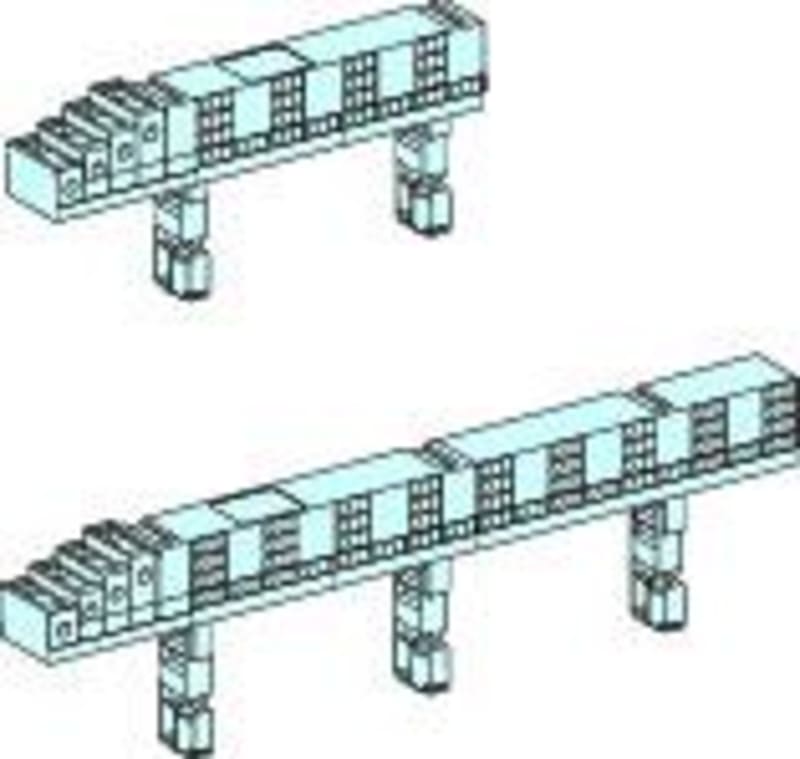

Linergy FM (Multiclip)4P 63A 1/2-row G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04008 Fordelingsblokk-Linergy FM(Multiclip)-12 modules-4P-63A-20 hole-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04008
- EAN / GTIN
- 3606481870803
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 63 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Device feeder
- Product name
- Linergy FM
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT PrismaSeT Pack 250 enclosure
- Product compatibility
- Spacial enclosures
- IP degree of protection
- IPxx B
- Mounting support
- DIN rail; Slotted backplate; Plain backplate
- mounting mode
- -
- Installed device
- modular device
- Poles description
- 3P + N
- [Ue] rated operational voltage
- 440 V AC
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 6 kV
- [Ie] rated operational current
- 63 A
- [In] rated current
- 63 A at 40 °C
- [Ipk] rated peak withstand current
- 12 kA
- I²t on activation
- 2400000 A².s
- Connections - terminals
- Supply: tunnel type terminal25 mm²; Distribution: quick-connect terminal strips (phase) , 2 x 4…6 mm² (rigid) ; Distribution: quick-connect terminal strips (phase) , 2 x 4…6 mm² (flexible) ; Distribution: quick-connect terminal strips (neutral) , 4 x 4…6 mm² (rigid) ; Distribution: quick-connect terminal strips (neutral) , 4 x 4…6 mm² (flexible) ; Distribution: quick-connect terminal strips (phase) , 2 x 1.5…4 mm² (rigid) ; Distribution: quick-connect terminal strips (phase) , 2 x 1.5…4 mm² (flexible) ; Distribution: quick-connect terminal strips (neutral) , 4 x 1.5…4 mm² (rigid) ; Distribution: quick-connect terminal strips (neutral) , 4 x 1.5…4 mm² (flexible)
- 9 mm pitches
- 24
- Total number of 18 mm modules
- 12
- Product weight
- 0.46 kg
- Colour
- Anthracite grey (RAL 7016)
- Standards
- IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure; IEC 60947-7-1
- Product certifications
- ASTA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 840
- Country of origin
- PL
- Warranty (in months)
- 18
- Core cross section
- 6 mm²
- With seal head
- No
- Number of poles
- 4
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481870803
- SAP 1200546780
- Code 82879690
