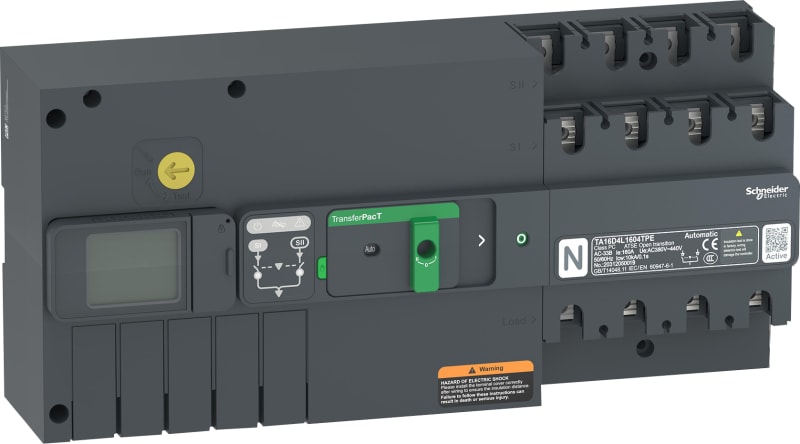

Schneider Electric transfer switch, TransferPacT Active automatic, 160A, 400V, 4P, LCD,frame 160A TA16D4L1604TPE

Schneider Electric TA16D4L1604TPE Changeover unit-automatic-TransferPacT-Active Automatic-In=160A-400V-4P-LCD-communication-160A frame.

Manufacturer part number (MPN)

TA16D4L1604TPE EAN / GTIN: 3606481065865 Sales unit: pcs Range of product: TransferPacT Product or component type: Automatic transfer switch Device application: Change source of supply Poles description: 4P Network type: AC Network frequency: 50/60 Hz Downside connection: Screwed mounting mode: Fixed Upside connection: Screwed Contact position indicator: Yes [Icm] rated short-circuit making capacity: 154 kA with upstream protection circuit breaker 400 V AC at 50 Hz; 20 kA switch-disconnector alone 400 V AC at 50 Hz Suitability for isolation: Yes Transfer switch class: PC Number of contact position: 3 Signal contacts composition: 1 NO + 2 NC; 1 NC + 2 NO; 2 NO Utilization category: AC-33B [Ue] rated operational voltage: 400 V AC 50/60 Hz Control type: 4 push-buttons Operating mode: Automatic; Manual Display type: LCD screen Mounting support: Plate; DIN rail Locking options description: Padlock in OFF position Rated duty: Uninterrupted [Ui] rated insulation voltage: Switch: 800 V; Controller: 500 V [Uimp] rated impulse withstand voltage: Switch: 8 kV; Controller: 6 kV [Ie] rated operational current: 160 A Mechanical interlocking: With mechanical interlocking Mechanical durability: 10000 cycles Connection pitch: 30 mm [Icw] rated short-time withstand current: 10 kA during 0.1 s Height: 164 mm Width: 351 mm Depth: 95 mm Product weight: 5.6 kg [Ith] conventional free air thermal current: 160 A at 60 °C Standards: IEC 60947-6-1 Product certifications: CE; CB; CCC IP degree of protection: Front face: IP40 auto mode; Inside the enclosure: IP20 manual mode Ambient air temperature for operation: -25…70 °C Ambient air temperature for storage: -40…85 °C Pollution degree: 3 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 30.000 cm Package 1 Width: 40.000 cm Package 1 Length: 60.000 cm Package 1 Weight: 7.774 kg Country of origin: CN Warranty (in months): 18 Rated permanent current Iu: 160 A Number of poles: 4 Housing material: Plastic Degree of protection (IP), front side: IP20 Number of auxiliary contacts as change-over contact: 3 Type of electrical connection of main circuit: Screw connection Suitable for floor mounting: No Suitable for front mounting: No

HS Code

8536.50

• EAN 3606481065865
• SAP 1200586036
• Code 82956256
