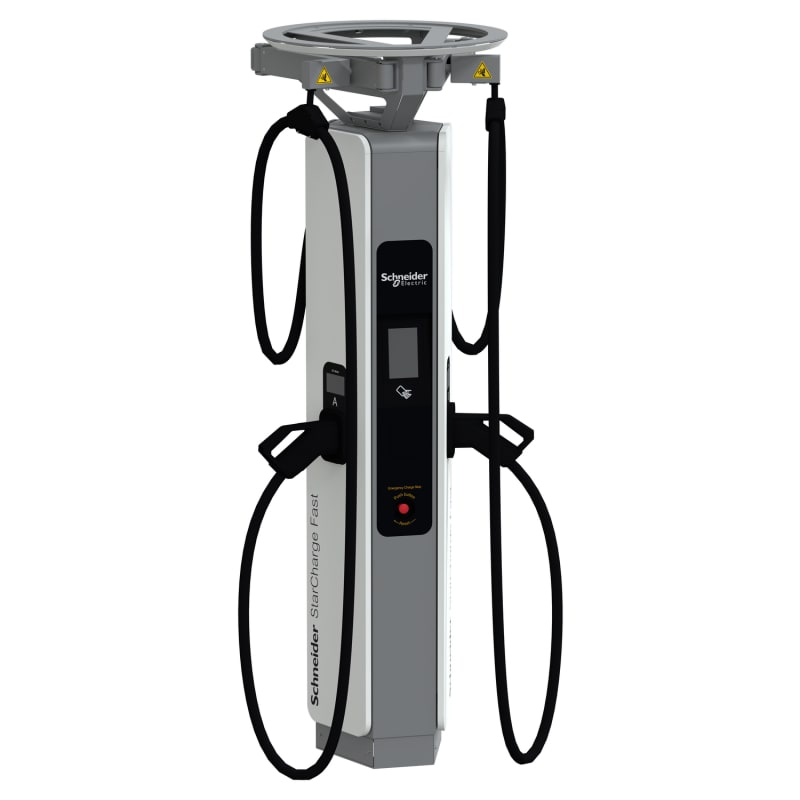

Schneider Electric Floor dispenser, Schneider StarCharge Fast 720, 2XCCS2, 4.1M cable range, cable management EVD1D720TBB
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric EVD1D720TBB Floor dispenser, Schneider StarCharge Fast 720, 2xCCS2, 4.1m cable range, cable management.
Technical Specifications
- Manufacturer part number (MPN)
- EVD1D720TBB
- EAN / GTIN
- 3606487894261
- HS code
- 8544.42
- Sales unit
- pcs
- Range
- Schneider StarCharge Fast 720
- Product or component type
- Floor dispenser
- Type of installation
- Indoor/outdoor
- Poles description
- 1P + N
- Range compatibility
- EVlink EVlink Field Services; EVlink EVlink Load Management System
- Device application
- Electrical Vehicle charger
- Mounting location
- Floor stand
- Earthing system
- TN-S; TN-C-S; TT
- [Us] rated supply voltage
- 220...240 V AC at 50/60 Hz, single phase
- Nominal output power
- SAE CCS Combo 2: 380 kW at 0…380 A ( with boost up to 600 A ) 150...1000 V DC
- Output cable range in m
- Both side: 2 charging cable of 4.1 m
- Number of outputs
- 2
- Connector type
- SAE CCS Combo 2
- Provided equipment
- energy meter per output
- Accuracy class of energy meter
- Class B
- Accuracy class error of energy meter
- 1 % of full scale
- Cable management system
- With
- Protection type
- Short-circuit protection on output; Overload protection; Ground fault protection; Temperature rise protection
- Access control system
- RFID authentication card MIFARE Classic conforming to ISO/IEC 14443 A and B; RFID authentication card MIFARE Ultralight; RFID authentication card MIFARE DESFire EV1; RFID authentication card MIFARE DESFire EV2; RFID authentication card MIFARE Plus; RFID authentication card NFC; Autocharge; Plug & charge conforming to ISO 15118; Free access; QR code/application
- Contactless payment terminal
- Without
- Display type
- LCD touch screen : 7 inch LED
- Main user language (constantly evolving)
- English; Bulgarian; Czech; Danish; Dutch; Estonian; Finnish; French; German; Greek; Hebrew; Hungarian; Indonesian; Italian; Norwegian; Portuguese; Spanish; Swedish; Multi-language
- Local signalling
- 1 green LED light strip, function: available; 1 red LED light strip, function: fault indication
- Control button type
- Charge interruption button
- Material
- Enclosure: stainless steel 430
- Colour
- Front door: signal white (RAL 9003); Front door: black (RAL 9005); Body: dark grey silver
- Ambient air temperature for operation
- -30…50 °C (with derating above 50 °C)
- Height
- 2200 mm
- Width
- 720 mm
- Depth
- 720 mm
- Net weight
- 240 kg
- Services
- Commercial service plan; Commissioning service; Warranty extension up to 5 years; Repair service
- Ethernet service
- Web browser
- Communication port protocol
- Ethernet TCP/IP
- Communication network type
- 10/100BASE-T
- Electromagnetic compatibility
- Immunity for industrial environments: ; Emission standard for industrial environments:
- IP degree of protection
- IP55
- IK degree of protection
- IK10; Screen: IK08
- Ambient air temperature for storage
- -40…70 °C
- Operating altitude
- 0...2000 m
- Relative humidity
- 5…95 %, without condensation
- Standards
- IEC 61851-1:ed. 3; IEC 61851-23:ed. 1; IEC 62196-1; IEC 62196-3; EN/IEC 61000-6-2:2005; EN/IEC 61000-6-4:class A; ISO 15118-2; DIN 70121; VDV 261
- Atmospheric-corrosivity category
- C4
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 24
