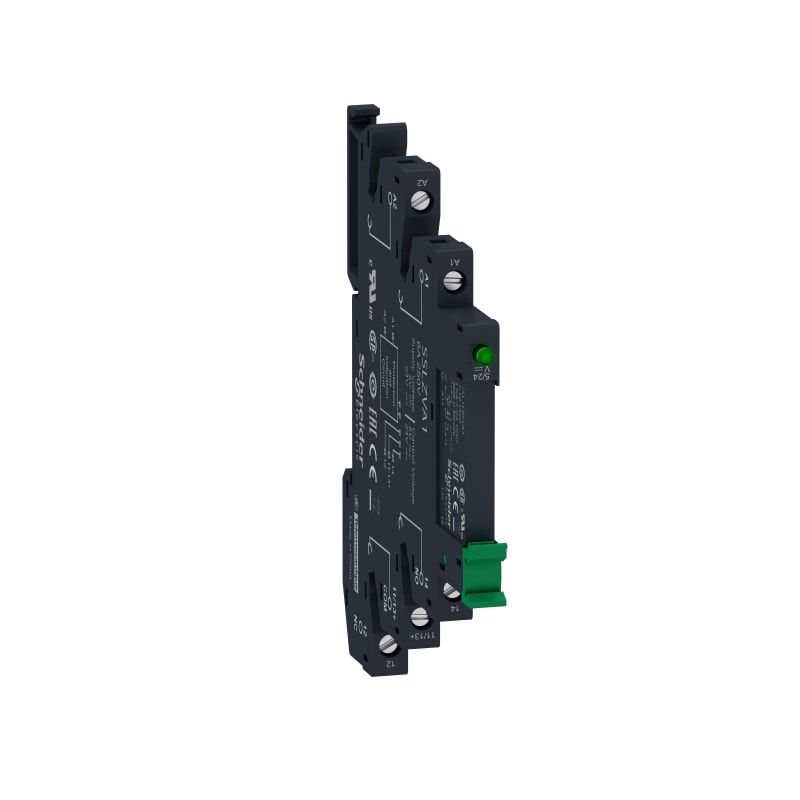

Schneider Electric Harmony, Solid state relay pre assembled, 2 A, random switching, screw sockets, input 16...30 V DC, output 24...250 V AC SSL1A12BDRPV

Schneider Electric SSL1A12BDRPV Zelio SSL Slim SSR in plinth (screw) - 2A/24-280VAC output and 24VDC supply.

Manufacturer part number (MPN)

SSL1A12BDRPV EAN / GTIN: 3606489563004 HS code: 8536.90 Sales unit: pcs Package quantity: 30 pcs Voltage: 24 V DC Rated current: 2 A Range of product: Harmony Solid State Relays Device short name: SSL Network number of phases: 1 phase [Uc] control circuit voltage: 16...30 V Connections - terminals: Screw connectors Output switching mode: Random voltage switching Mounting support: Screw socket [In] rated current: 2 A Output voltage: 24...250 V AC CLAMPING FORCE: < 0.5 N.m; 4.4 lb-in Capacitance unbalance: 1.5 pF input/output minimum switching voltage: 16 V DC turn-on Maximum switching voltage: 5 V DC turn-off Input impedance: 3.43 kOhm Solid state output type: Random voltage switching; SCR output Load current: 0.07…2 A Transient Overvoltage: 600 V AC Surge current: 120 A for 16.6 ms; 115 A for 20 ms Maximum voltage drop: <1.1 V on-state Maximum I²t for fusing: 285 A².s for 10 ms at 50 Hz; 260 A².s for 8.3 ms at 60 Hz Maximum leakage current: 4 mA off-state DV/dt: 500 V/µs off-state at maximum voltage Response time: 5 ms (turn-on); 10 ms (turn-off) Overvoltage category: III Width: 6.2 mm Height: 96.5 mm Depth: 79.5 mm Product weight: 0.0285 kg Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Dielectric strength: 2500 V for input/output Pollution degree: 2 Standards: IEC 60950-1; IEC 61000; IEC 62314; IEC 61984; EN 61984 Product certifications: UL; CSA; CE; UL 508; CSA22.2 No. 14-10; GOST Marking: CURus; CSA; CE; EAC IP degree of protection: IP20 Ambient air temperature for operation: -20…70 °C Ambient air temperature for storage: -20…85 °C Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606489563004
• SAP 1200271529
• Code 82235756
